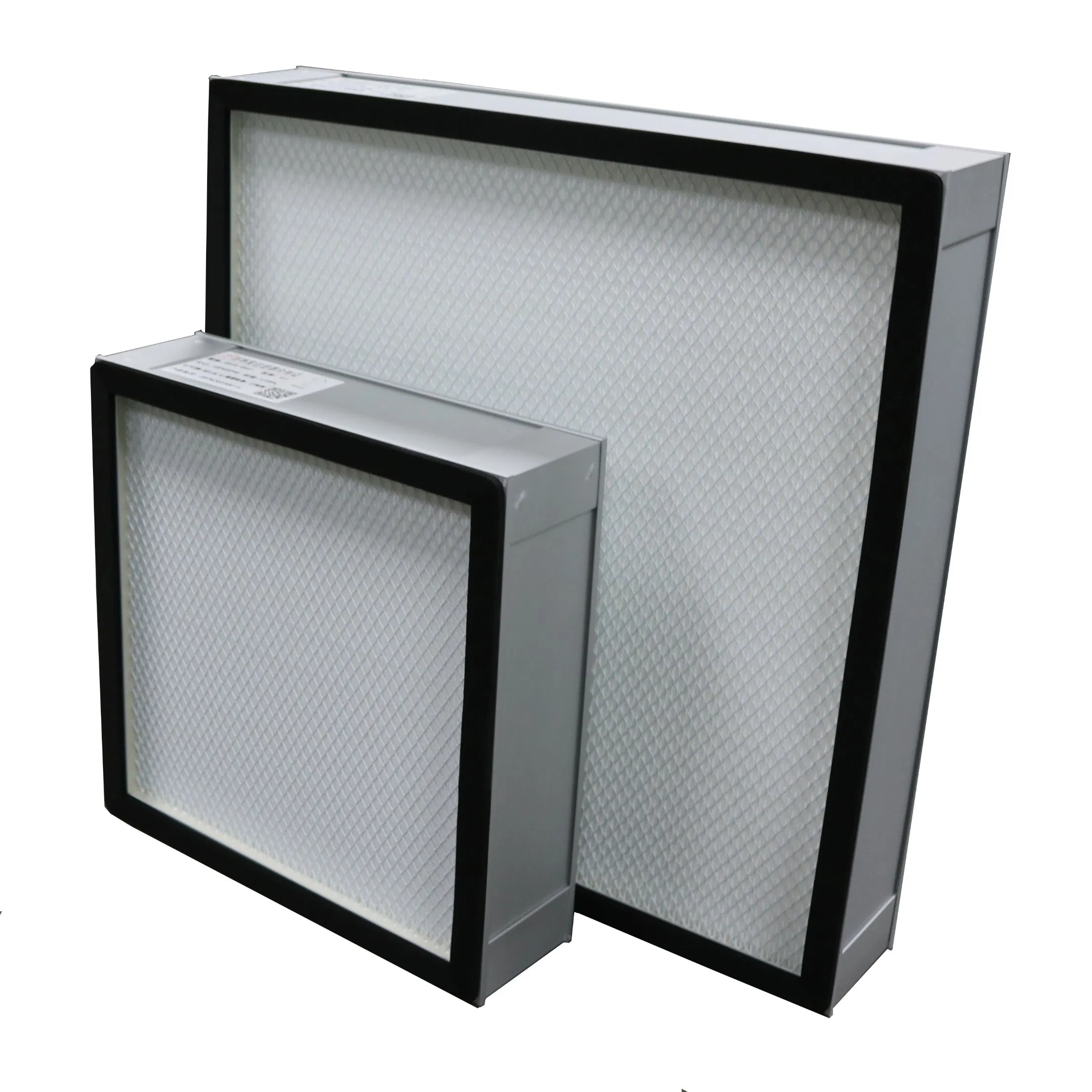

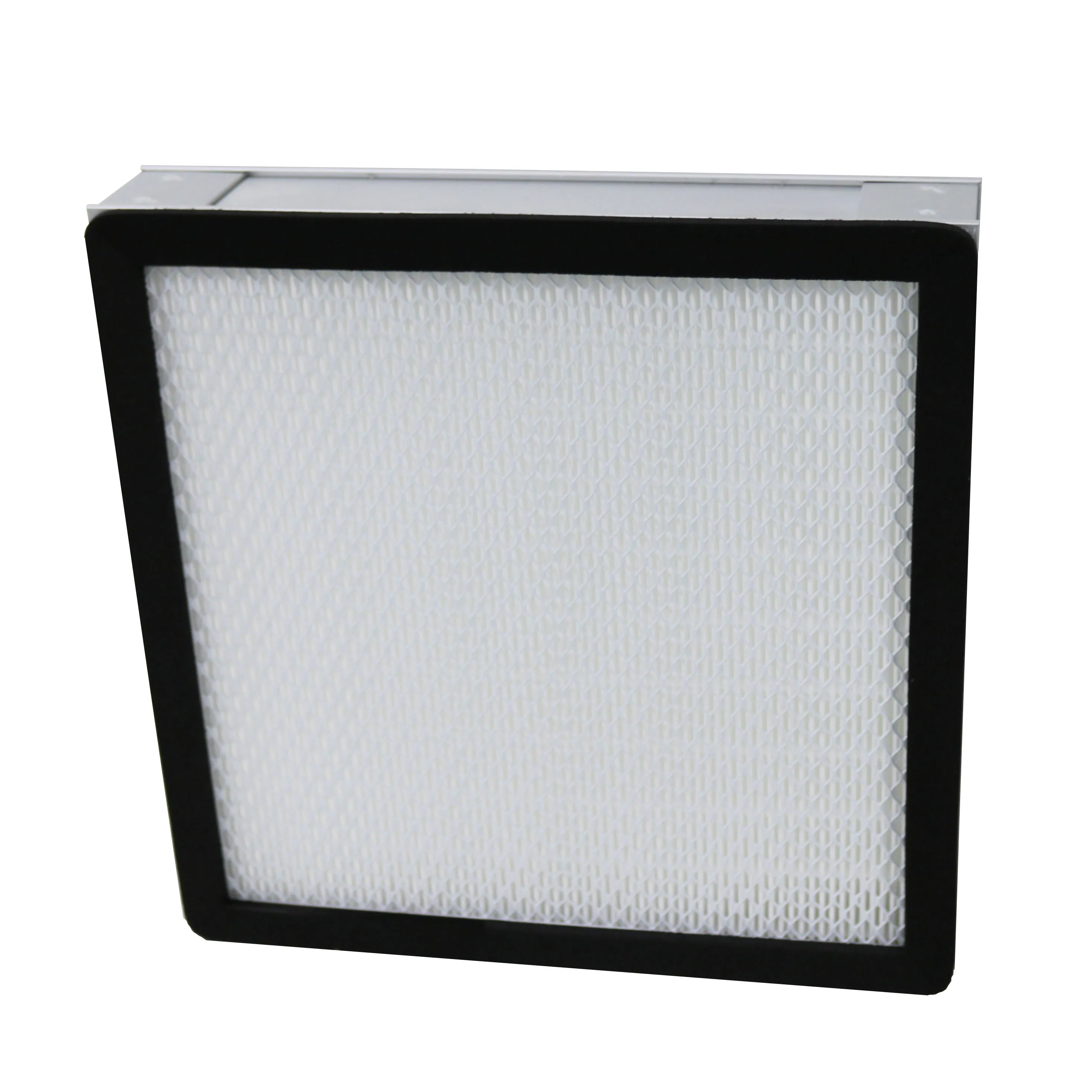

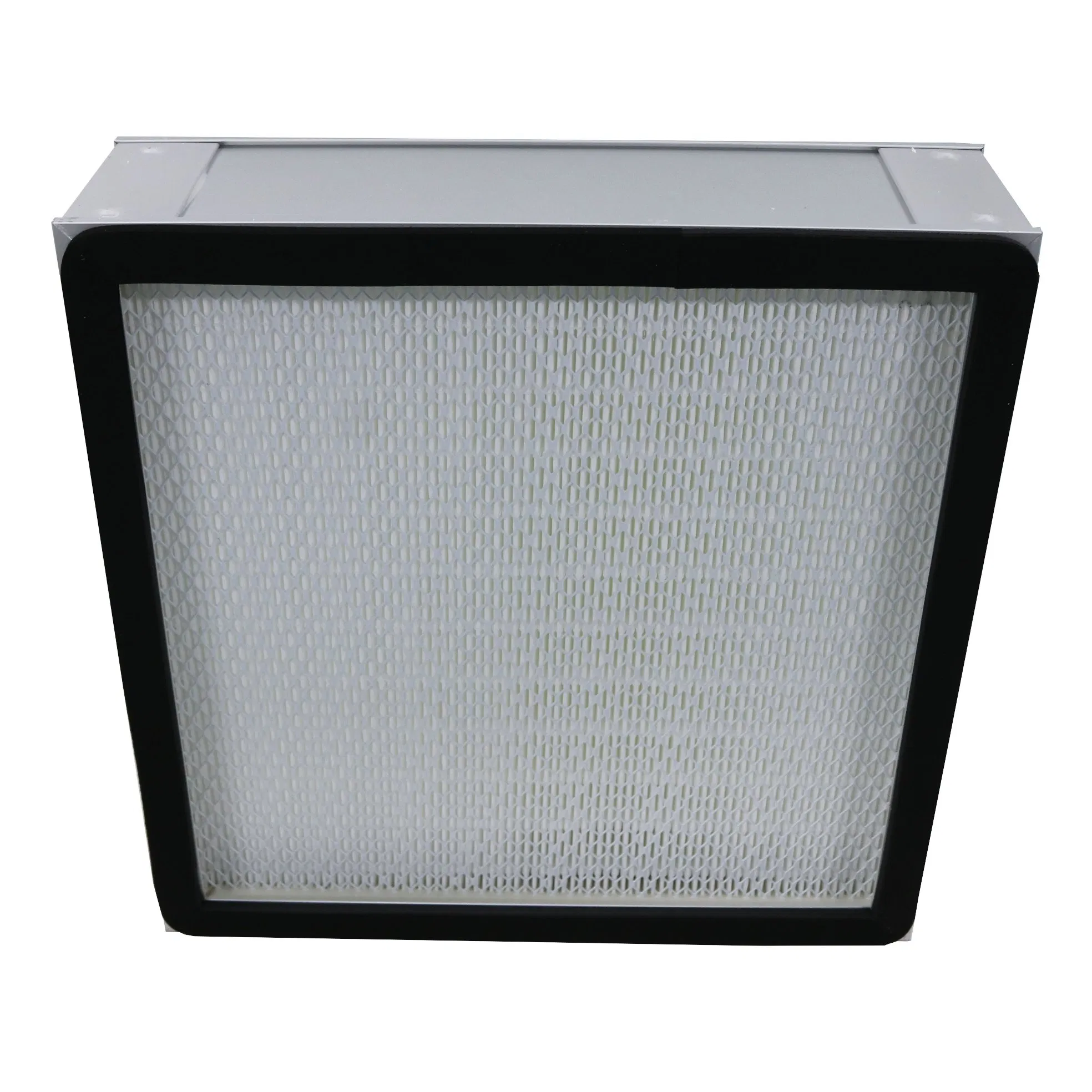

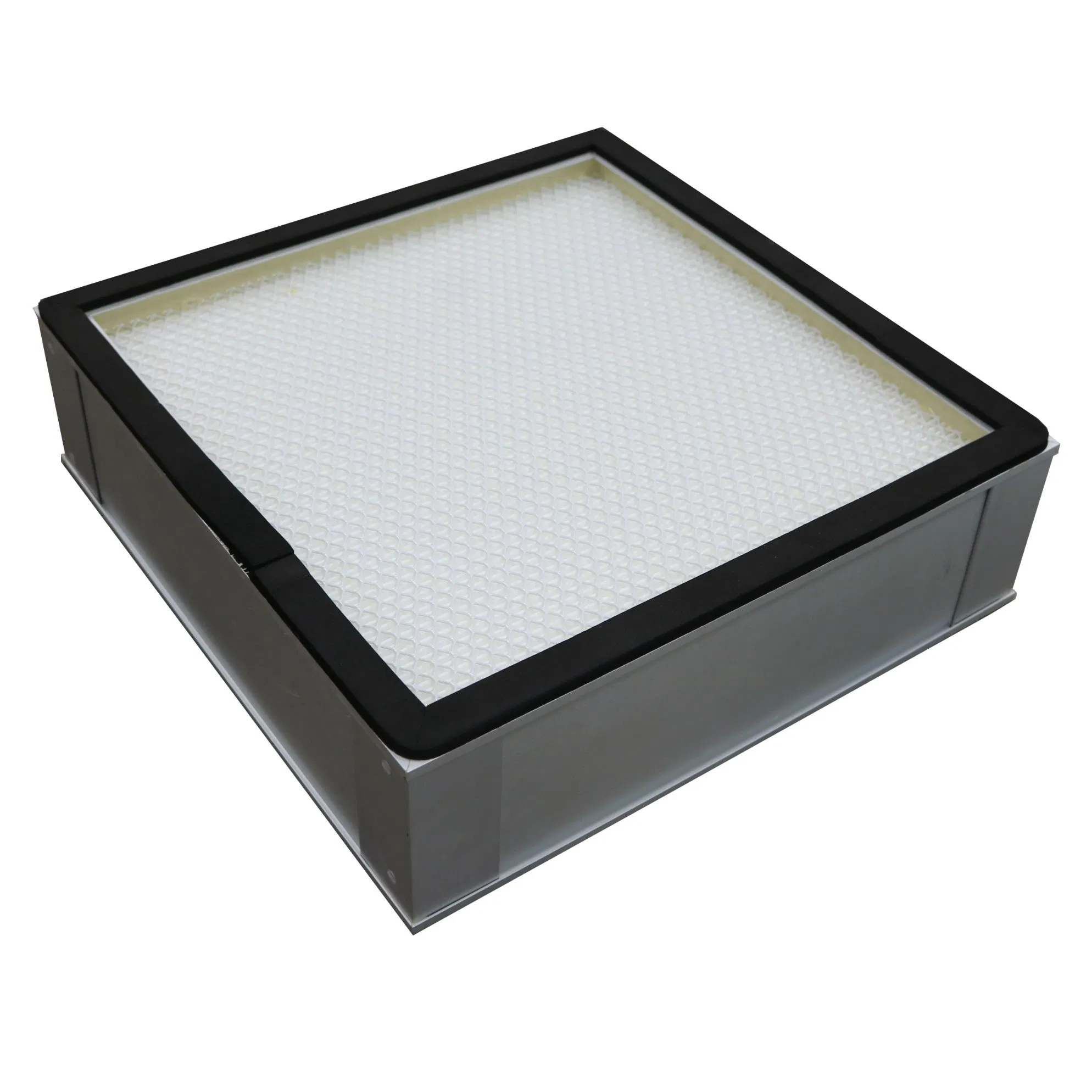

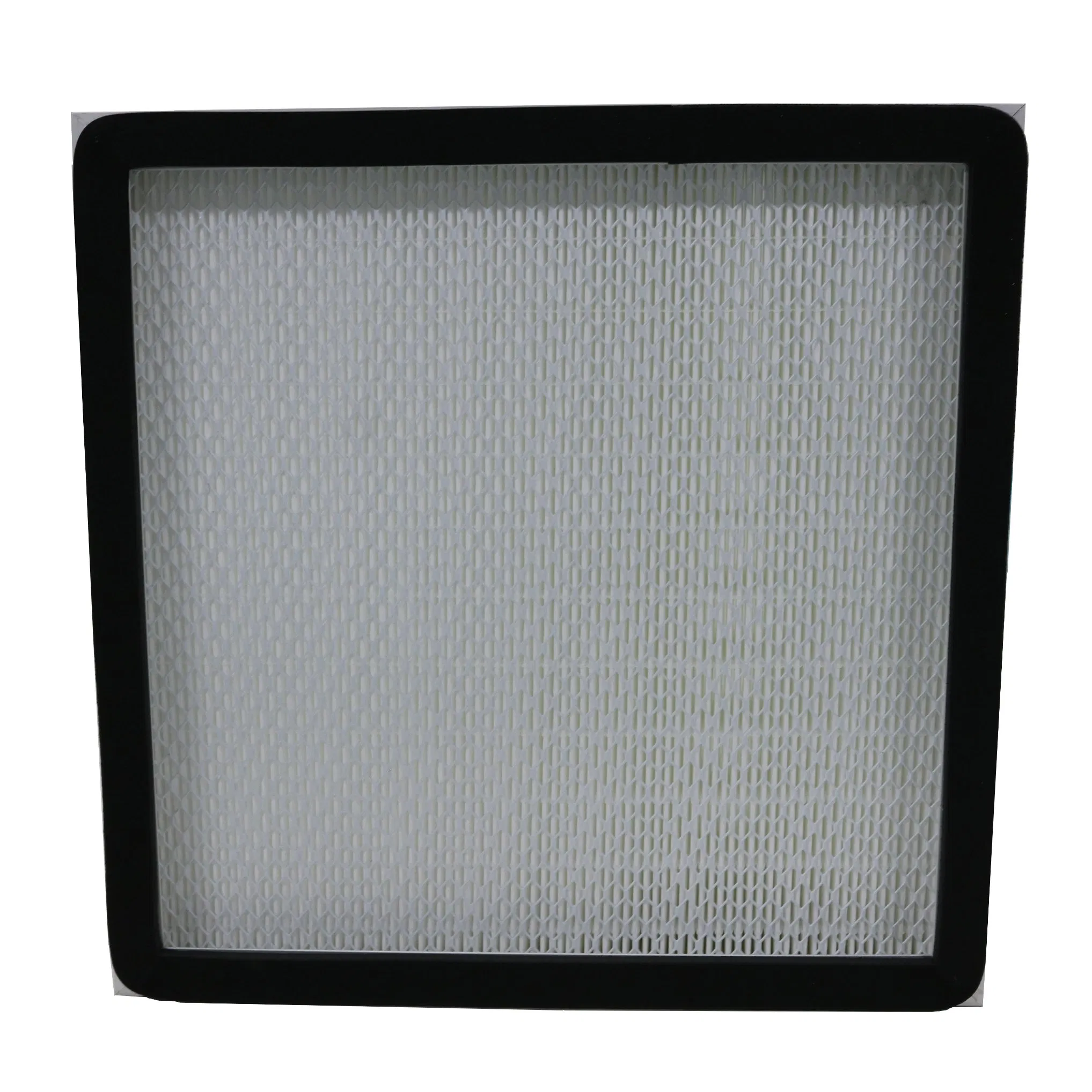

HEPA Laminar Flow Air Filters HEPA Filter HEPA Grade Air Filter Replacement

Basic Information

Model NO.:320*320*90mm

Medium Material:Fiberglass

Efficiency:99.95%

Filtration Grade:HEPA Filter

Type:Panel Filter

Frame Material:Aluminum Alloy Frame

Separator:Hot-Melt Adhesive

Porosity:0.3um

Filter Grade:H13 H14

Product Description

HEPA Laminar Flow Air Filters Hepa Filter Hepa Grade Filter Replacement

HEPA Air Filter is made of ultra-fine fiberglass, designed into continuity fold paper for providing larger filtration area. Mini-pleats media design also extends filter life and decreases filter pressure drop. Air flows through media smoothly with low resistance. Folded media is separated through hot melt adhesive to ensure no chemical pollution release. Tested according to EN-1822 standard, filtration efficiency guaranteed from 99.97% to 99.999% for particle sizes at 0.3 micro meters.

Feature	Details
Part Name	Hepa Laminar Flow Air Filters Hepa Filter Hepa Grade Filter Replacement
Shape	Panel Filter
Porosity	0.3um
Size	32032090mm
Structures	Aluminum Alloy Frame and Fiberglass Pleated Pack (Customized)
Efficiency	99.95%
Properties	High Efficient, High Dust Holding Capacity, Long Service Life

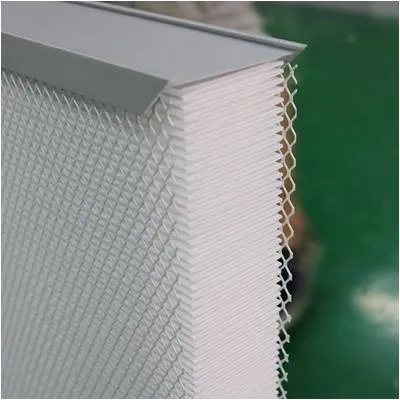

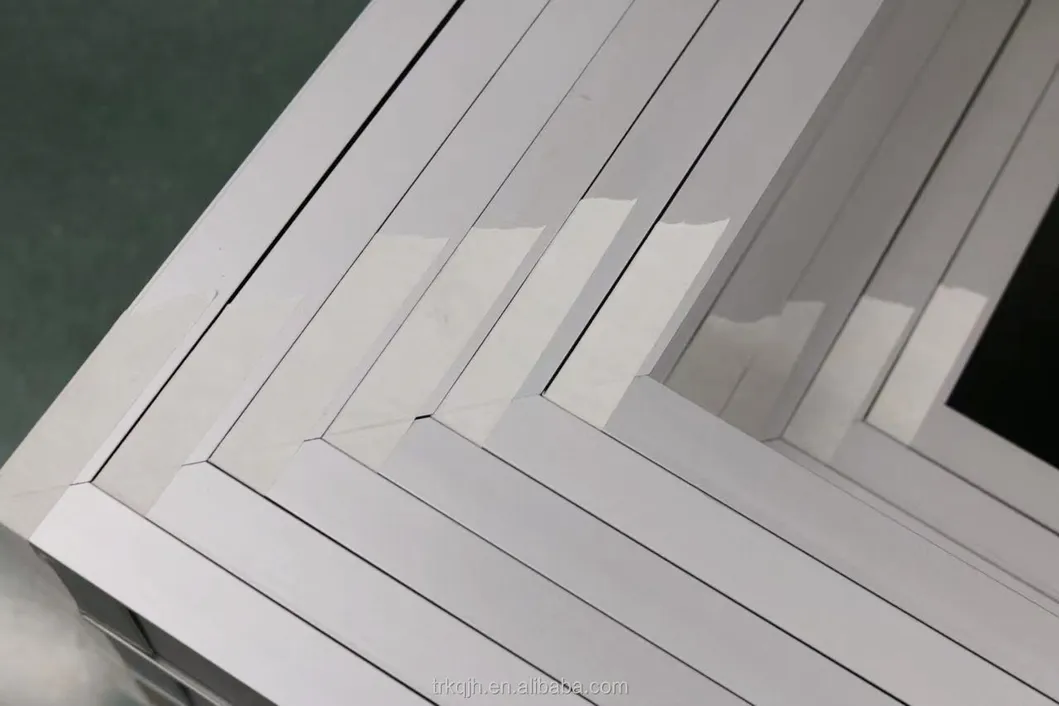

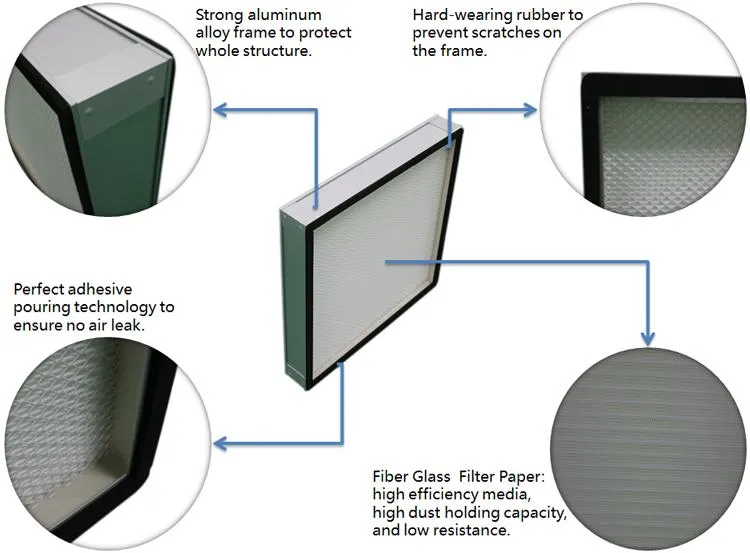

Detailed Photos

Specifications

Light Weight & Low cost
Easy to installation
High efficiency & Low resistance
Fully disposable
Mechanical clamping structures
Thickness size available in 150 mm, 180 mm
Efficiencies of 95% up to 99.9995% @ 0.3 microns
Testing according to EN-1822 standard
Flammability: UL Classified
Customizable Size

Product Parameters

Model	Outside Dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)
TR-WGB-1	32032090	500	≤220	≥99.97
TR-WGB-2	48448490	1000	≤220	≥99.97
TR-WGB-3	63063090	1500	≤220	≥99.97
TR-WGB-4	96848490	2000	≤220	≥99.97

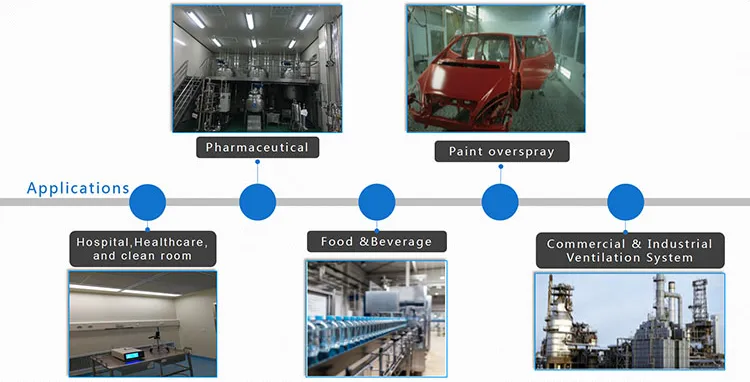

Applications

Clean rooms & Laminar Flow Workstations
Food processing & Pharmaceutical Processing
Aerospace Engineering & Electronic Industry
Genetic & Biological research
Hospital Operating Theaters & Intensive care units
Spray Booth and Paint Room

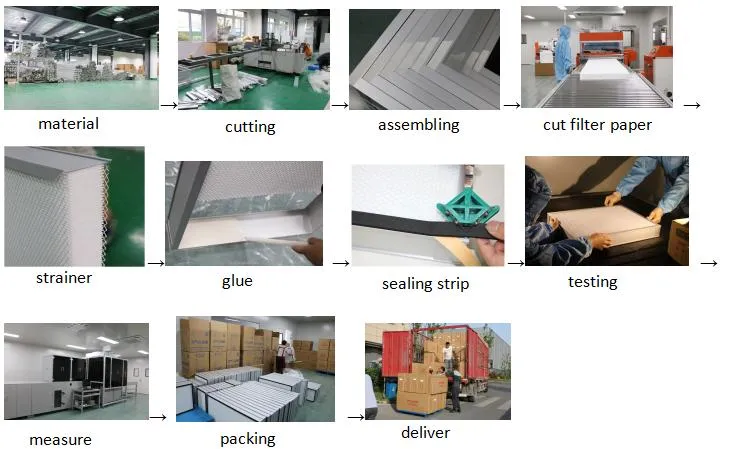

Manufacturing Technique

Related Products

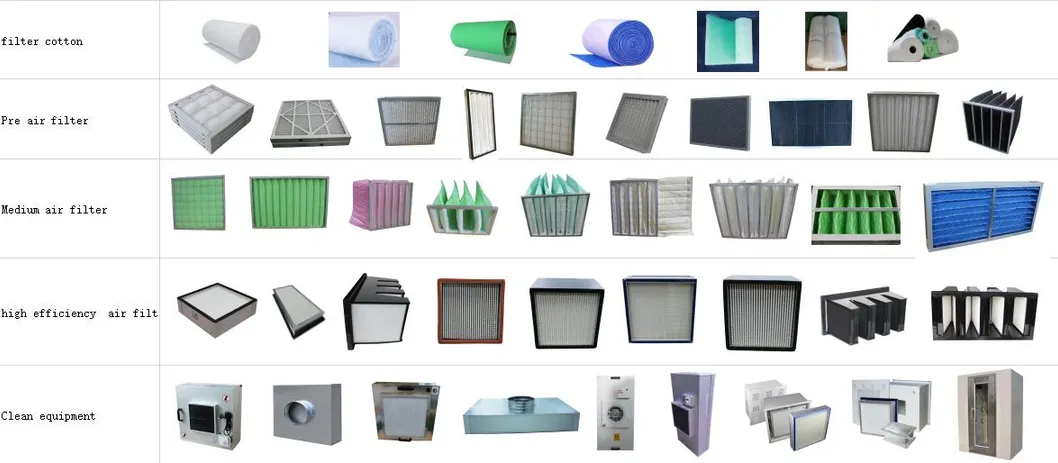

Main Product Categories:

Filter cotton: Coarse filter cotton, Paint Fog Felt, Booth Ceiling cotton
Primary filter: Folding air filter, Paper frame filter, High temperature resistant filter
Medium-efficiency filter: Bag air filter, Green and white cotton filter
Hepa filter: Mini-Pleat, Deep-Pleat, W type, Liquid tank efficiency filter
Air purify equipment: FFU, Efficient air supply outlet, Delivery window, Air shower

Frequently Asked Questions

How is the quality of the filters guaranteed?

We provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure performance standards.

What types of filters can I purchase?

You can purchase a wide range of products including HEPA Filters, Pre Filters, Medium Pocket Filters, HVAC Air Filters, and FFU Fan Filter Units.

Why should I choose these filters over other suppliers?

Our products come with factory pricing, short delivery times (7-10 days), extensive OEM experience, and quality guaranteed by ISO9001 and CE certifications.

What delivery and payment terms are accepted?

We accept various delivery terms including FOB, CFR, CIF, EXW and multiple payment methods such as T/T, L/C, Credit Card, and PayPal in various currencies.

Are custom sizes available for the HEPA filters?

Yes, we specialize in providing customizable sizes for HEPA filters to meet specific equipment and clean room requirements.

What is the standard filtration efficiency for these units?

Standard efficiency ranges from 99.97% to 99.999% for particles as small as 0.3 micrometers, following the EN-1822 testing standard.
