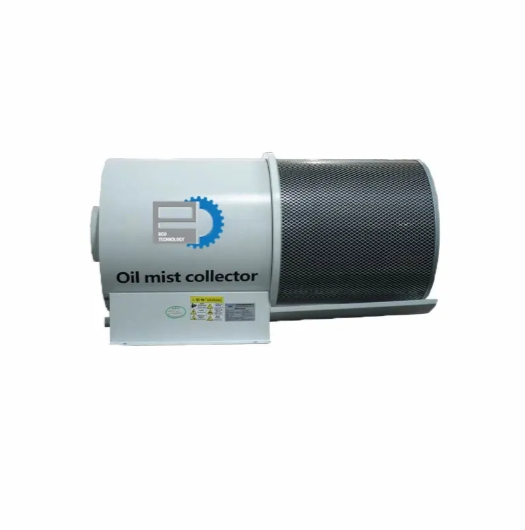

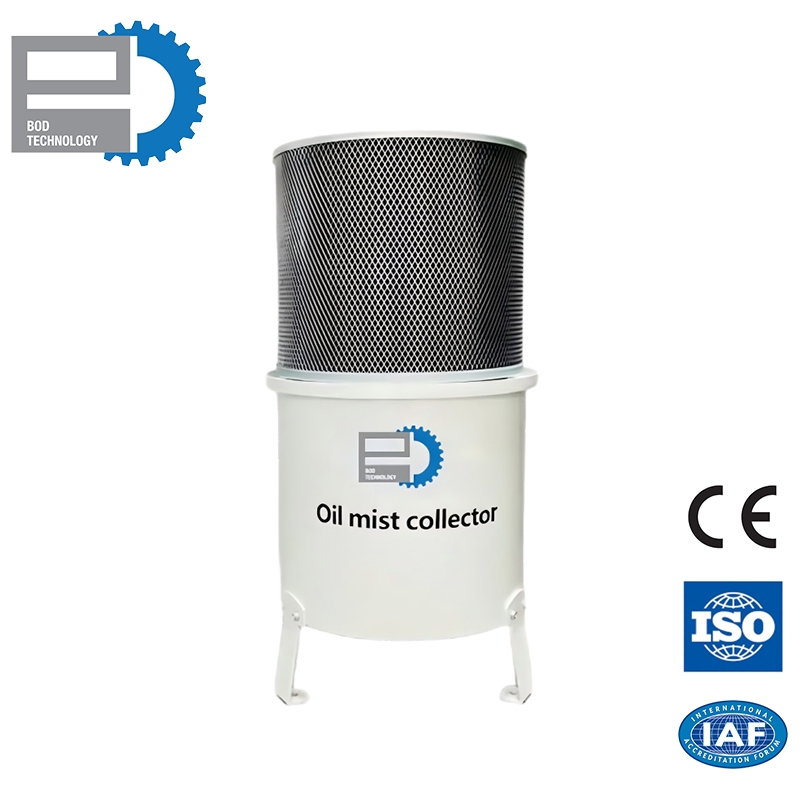

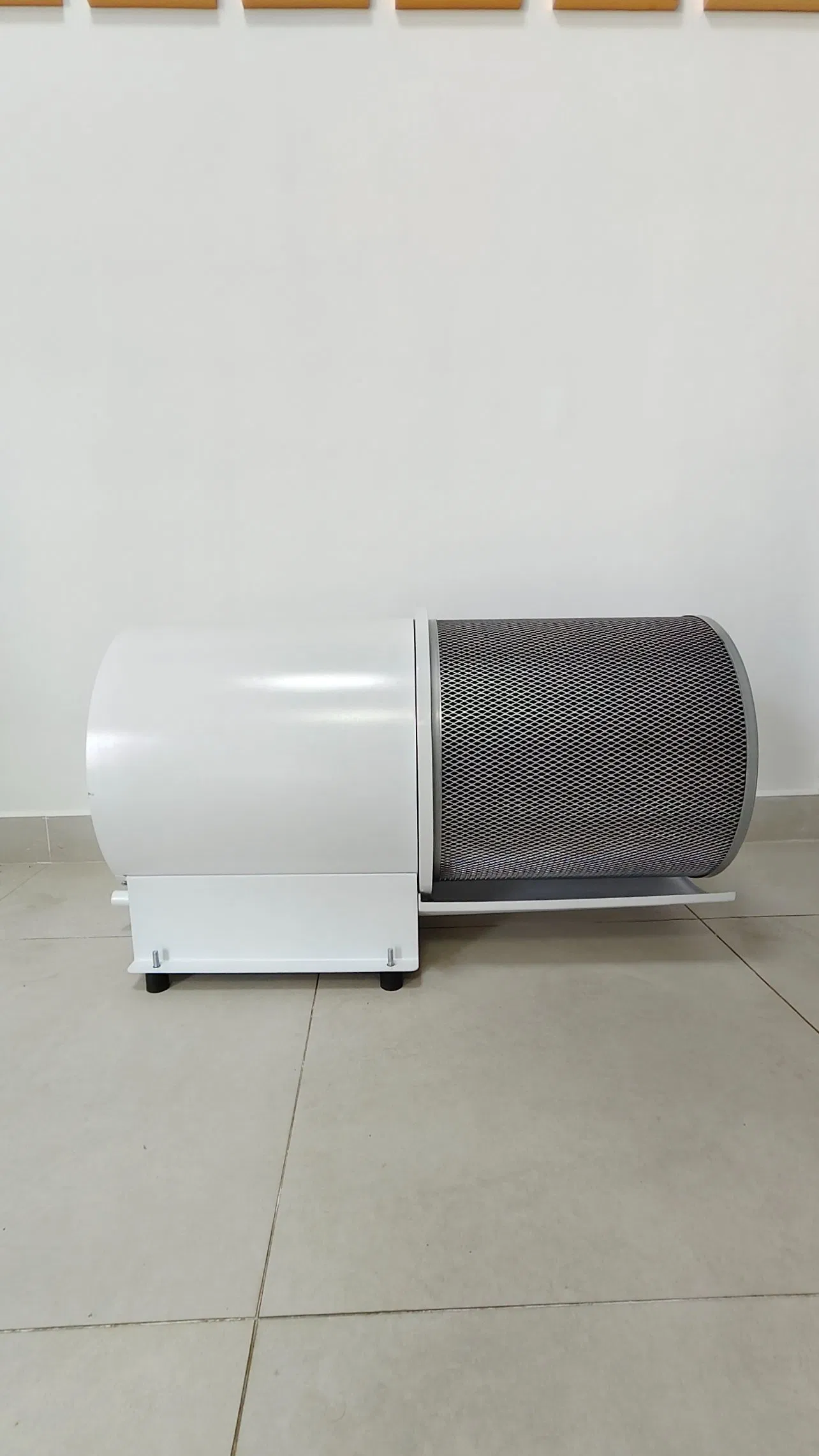

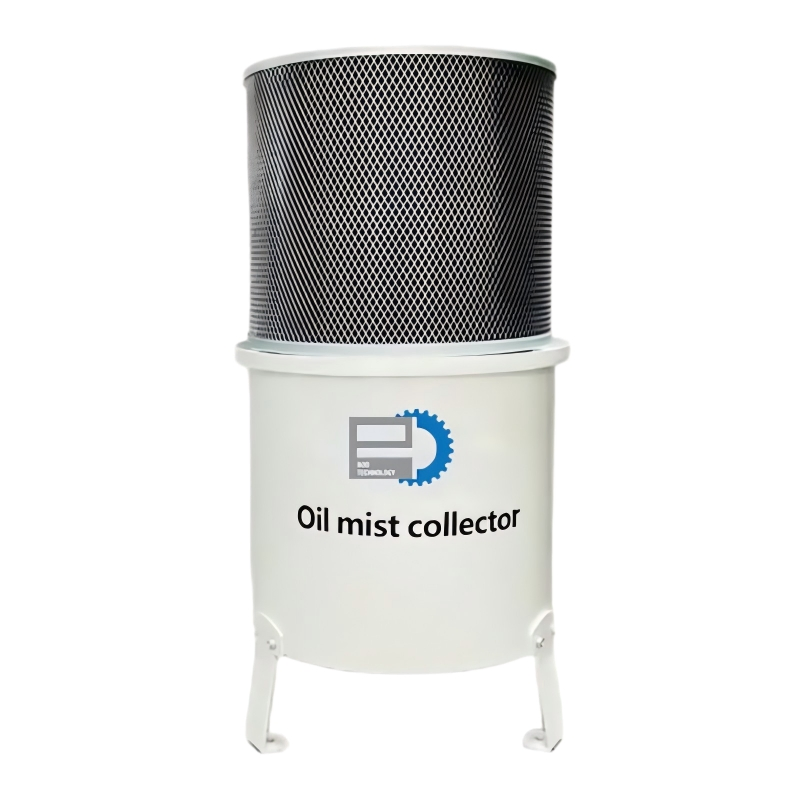

Oil Mist Collector is designed to effectively capture and filter oil mist, smoke, and fine airborne particles generated during machining processes. By adopting multi-stage filtration and high-efficiency separation technology, it cleans the contaminated air and allows cutting fluids to be recycled and reused.

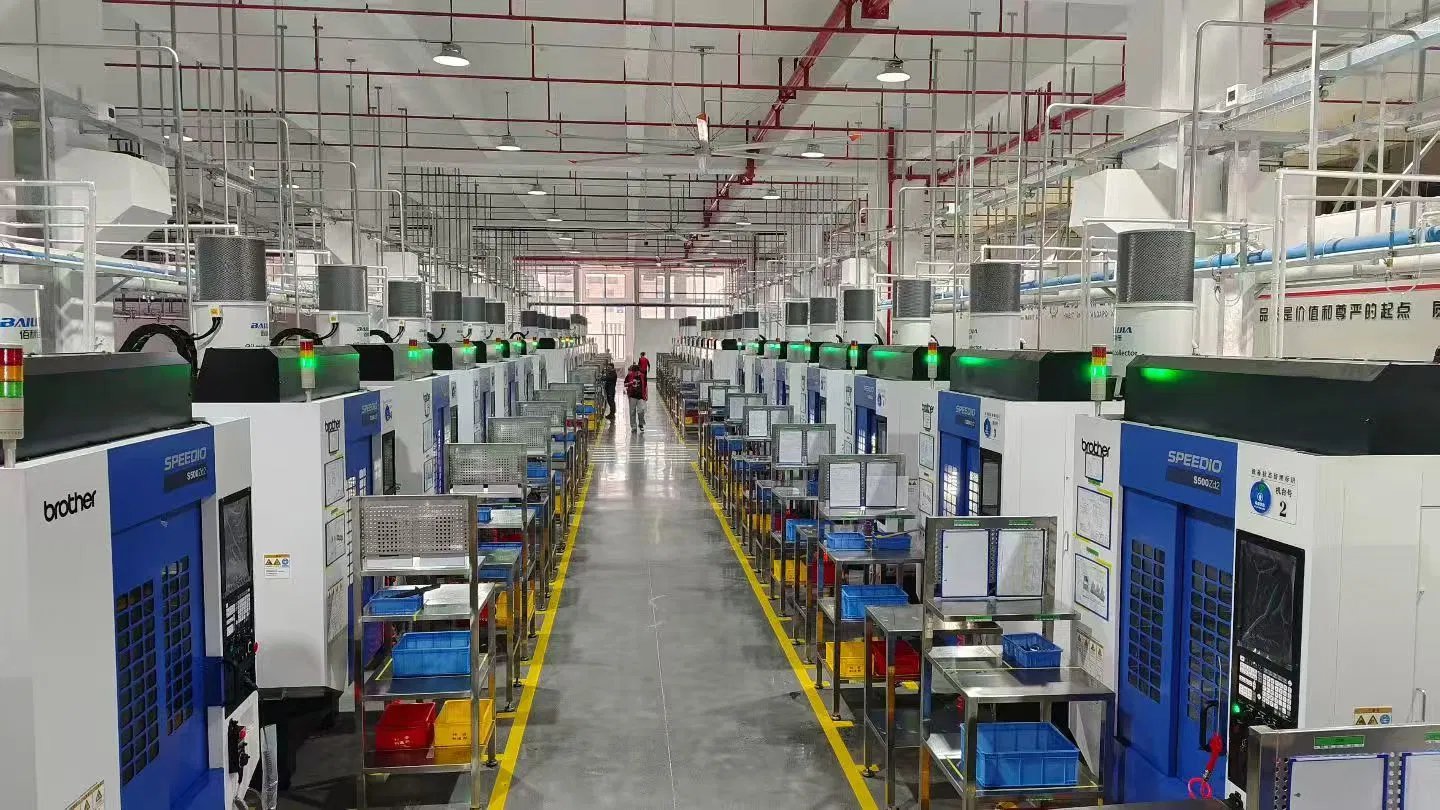

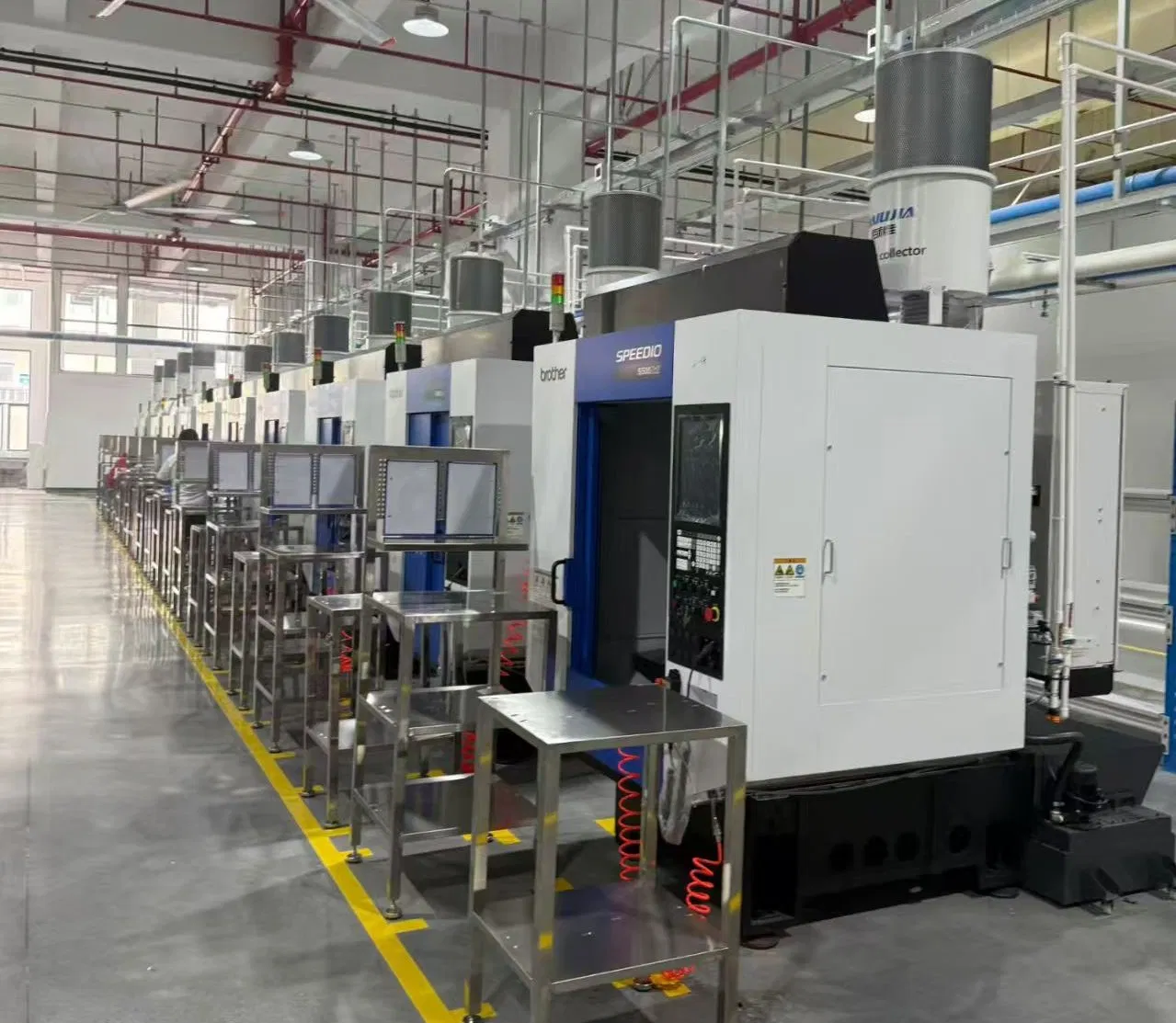

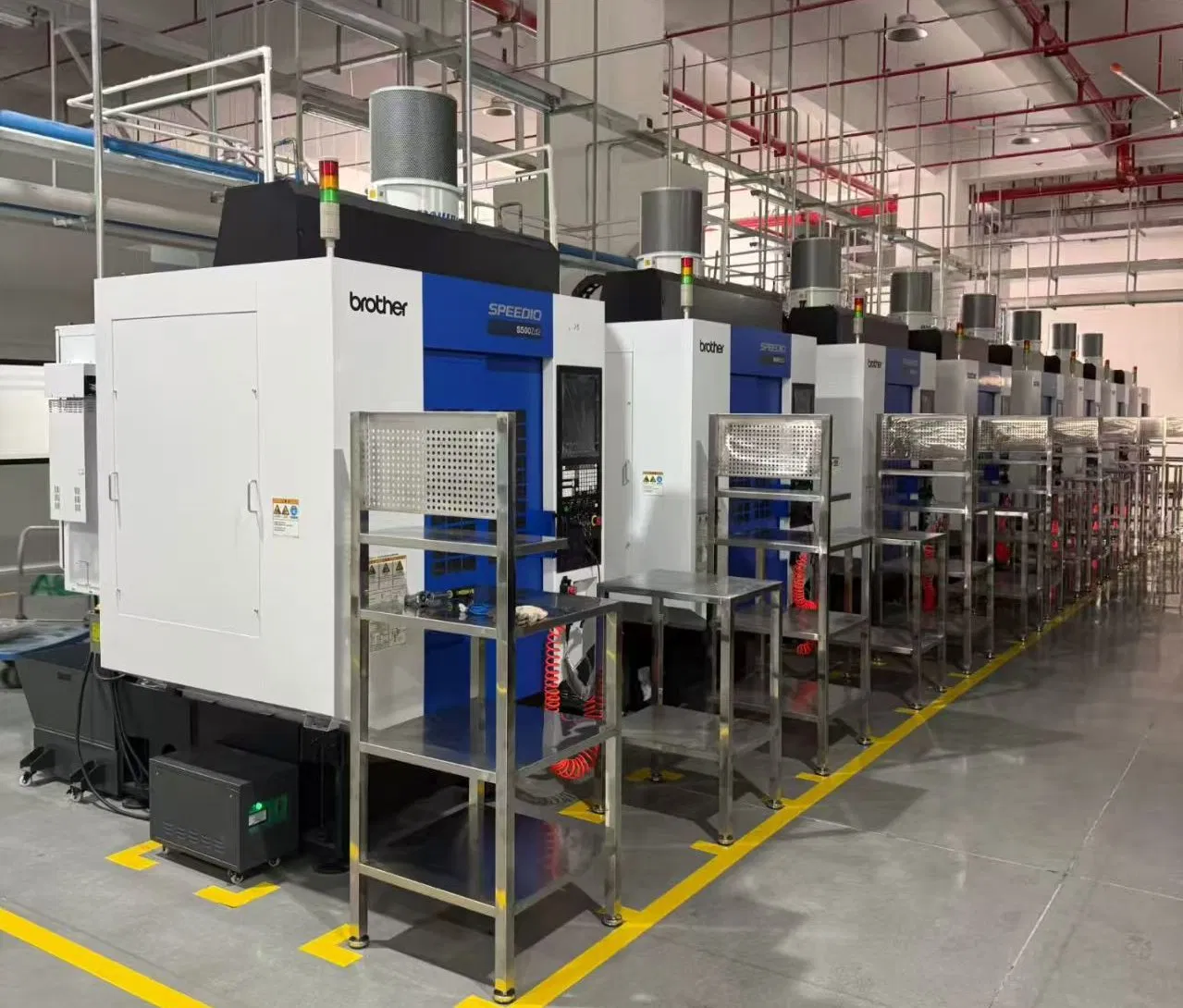

The system significantly improves workshop air quality, helps protect operators' health, and reduces machine contamination and maintenance costs. With a compact structure, stable performance, and easy installation, it is widely used on CNC lathes, machining centers, turning-milling machines, and grinding machines, making it an ideal solution for clean, safe, and environmentally friendly production.
| Model | POWER | FREQUENCY | VOLTAGE | VOLUME | WEIGHT |
|---|---|---|---|---|---|
| BOD-250 | 0.25KW | 50/60HZ | 220V/380V | 680M3/h | 21kg |
| BOD-370 | 0.37KW | 50/60HZ | 220V/380V | 1080M3/h | 30kg |
| BOD-750 | 0.75KW | 50/60HZ | 220V/380V | 1380M3/h | 35kg |
| BOD-750L | 0.75KW | 50/60HZ | 220V/380V | 2300M3/h | 37kg |
| BOD-1100 | 1.10KW | 50/60HZ | 220V/380V | 3000M3/h | 39kg |

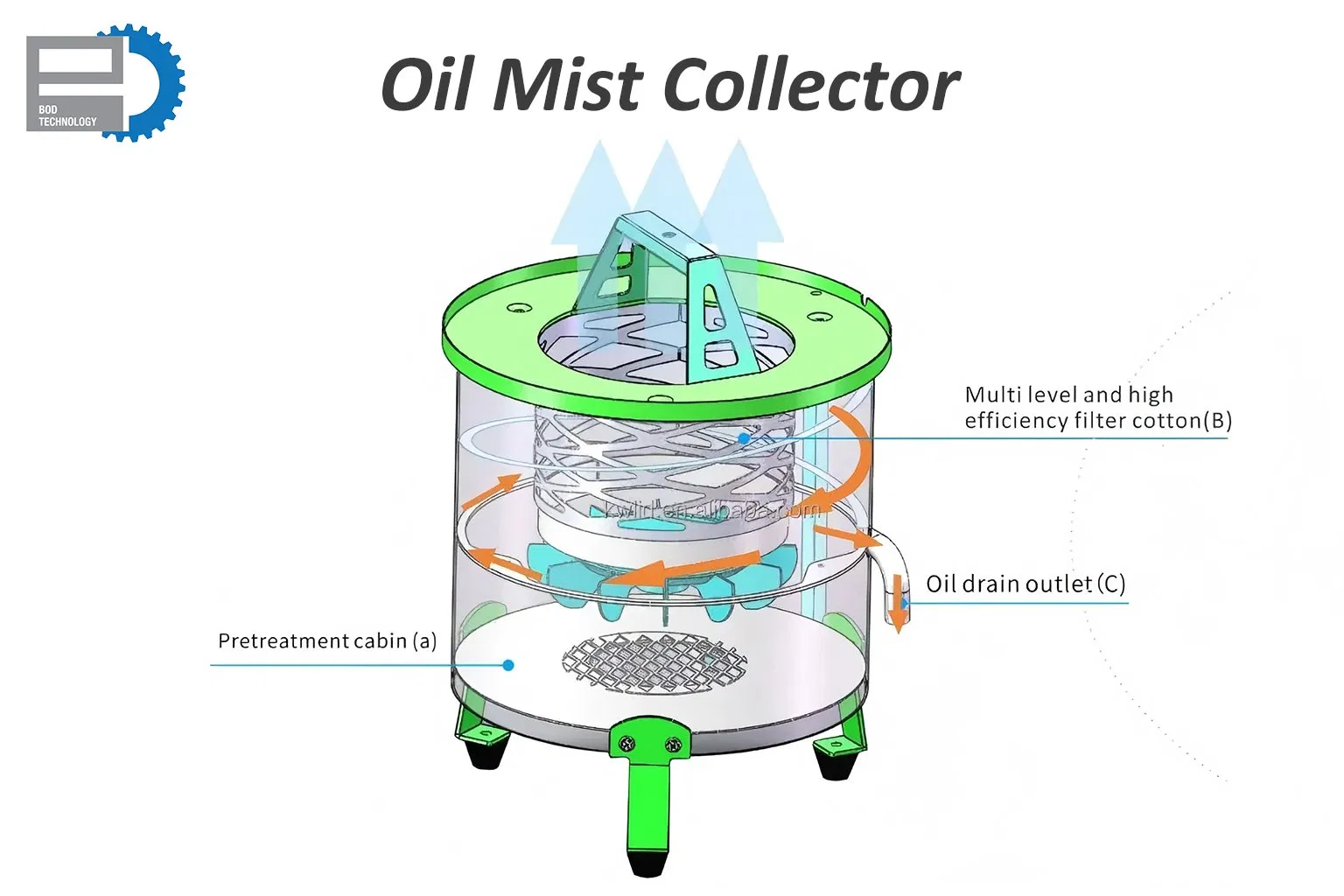

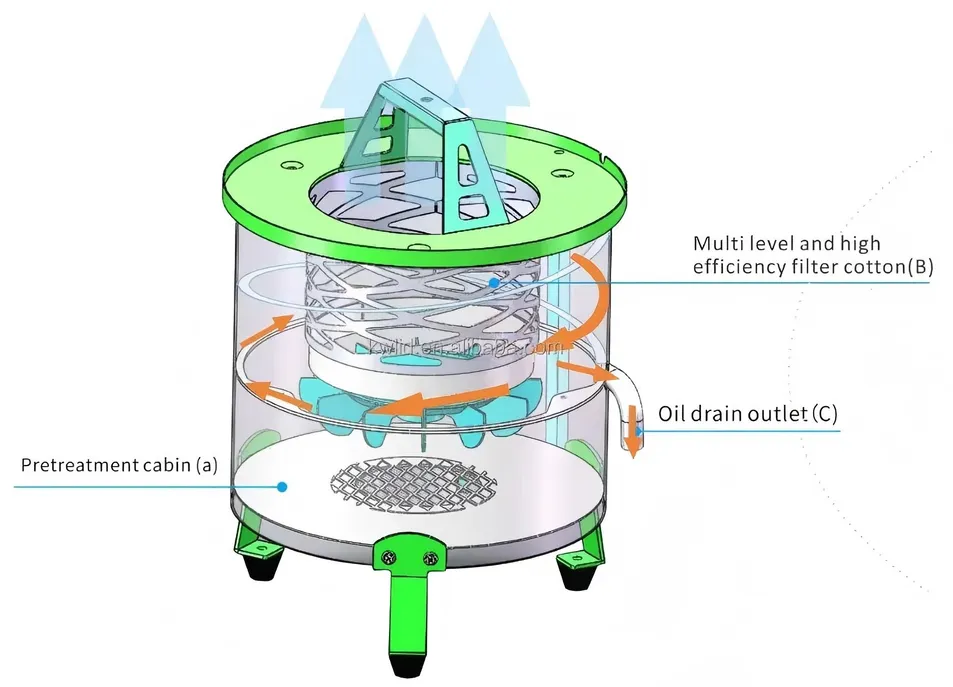

Step A: Contaminated air is drawn into the pre-separation chamber. Centrifugal force and coalescence cause fine oil mist to condense into liquid form.
Step B: Multi-stage high-efficiency filter media captures ultra-fine particulate contaminants, preventing secondary emissions.
Step C: A dedicated oil return system channels collected oil back to the machine tool for reuse.
1. Efficiency: High air volume with low energy consumption. The centrifugal design saves installation space while providing high purification efficiency.

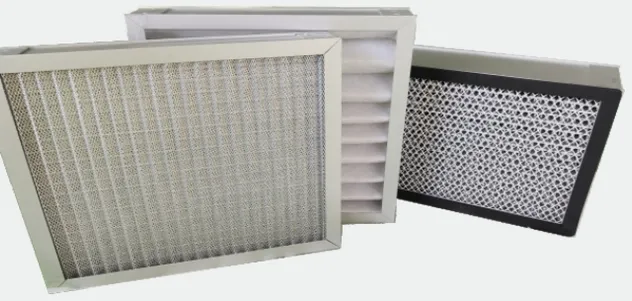

2. Filtration: Equipped with filter cotton and high-efficiency filters. Pre-treatment through centrifugal structure reduces the need for frequent filter replacements.

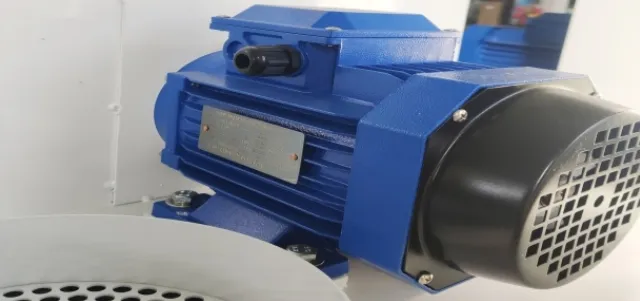

3. Maintenance: External motor design isolates heat and contamination, extending service life and simplifying disassembly.

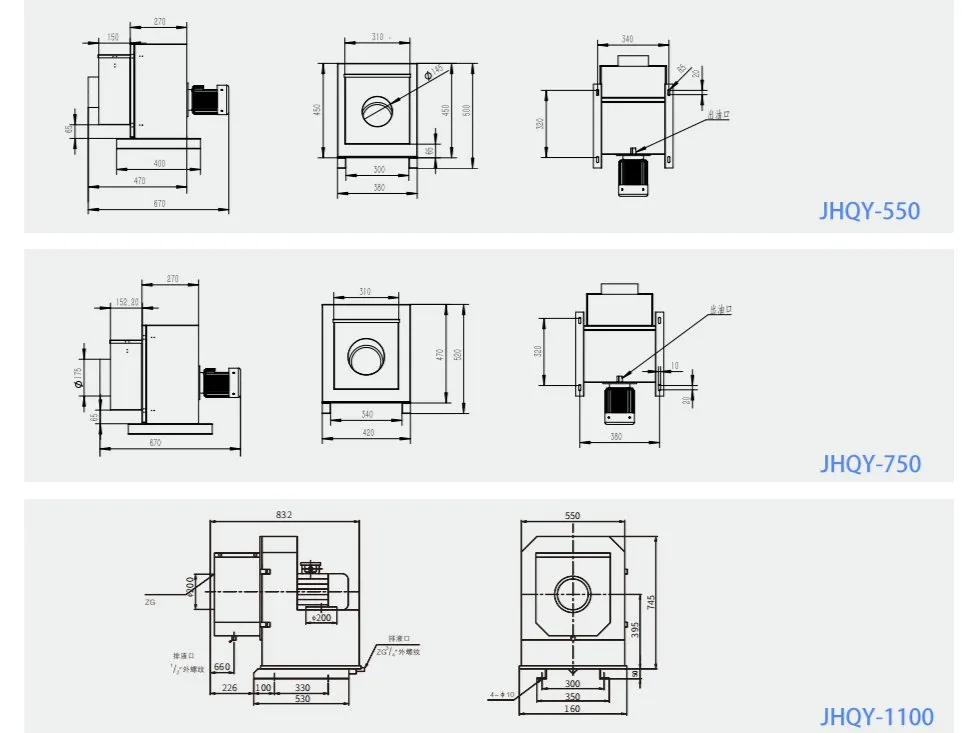

| Model | CFM(m³/h) | Accuracy(μm) | Power(kw) | Noise(dB) | Efficiency |
|---|---|---|---|---|---|
| JHQY-550 | 2000 | 0.3-0.5 | 0.55 | 61 | 99% |
| JHQY-750 | 2500 | 0.3-0.5 | 0.75 | 67 | 99% |
| JHQY-110 | 2800 | 0.3-0.5 | 1.1 | 70 | 99% |

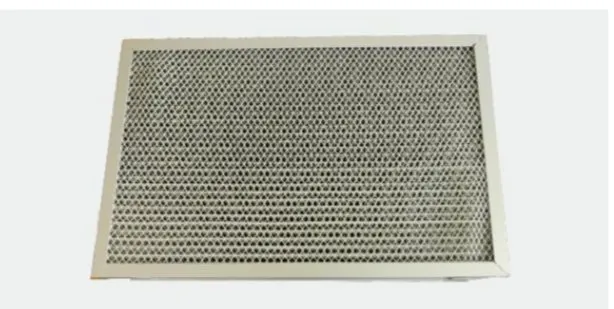

High-Efficiency Cartridge
Captures ultra-fine particles and extends service life by using pre-filtration stages.
Multi-layer Protection
Primary filters can be cleaned and reused, significantly reducing maintenance costs.

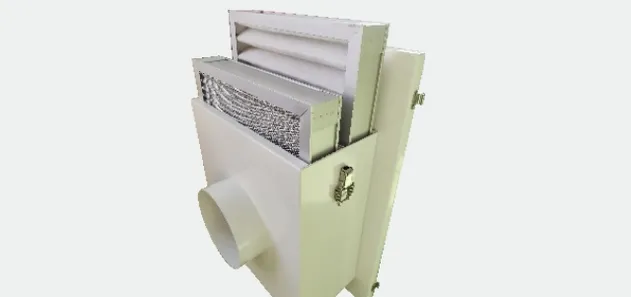

Quick Maintenance
Simple access cover design allows for tool-free inspection and filter cleaning.

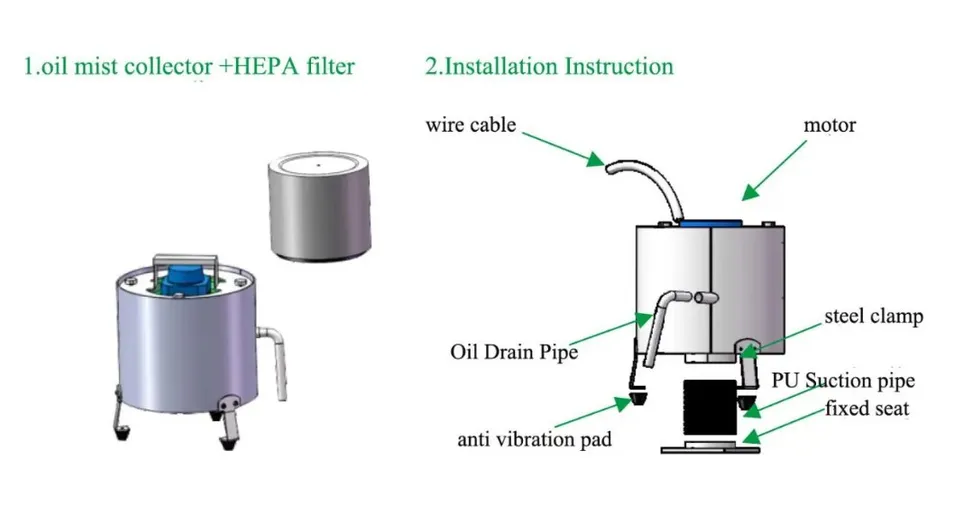

Convenient Installation
External motor design is quick to install and effectively isolated from heat.

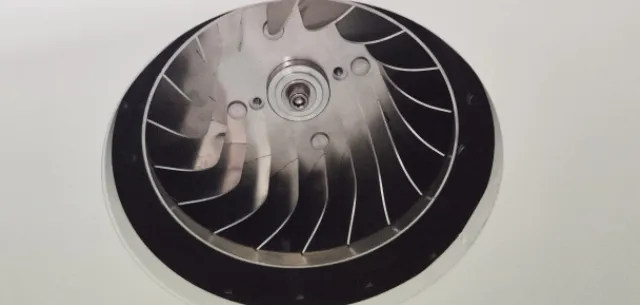

Energy Efficiency
High-speed motor combined with large-airflow impellers reduces power consumption.
