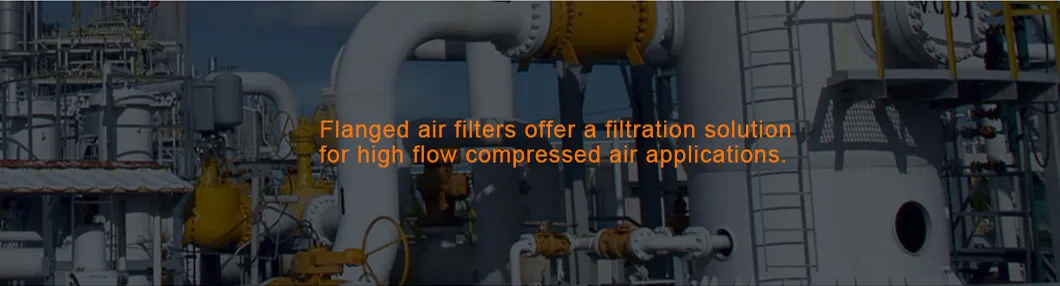

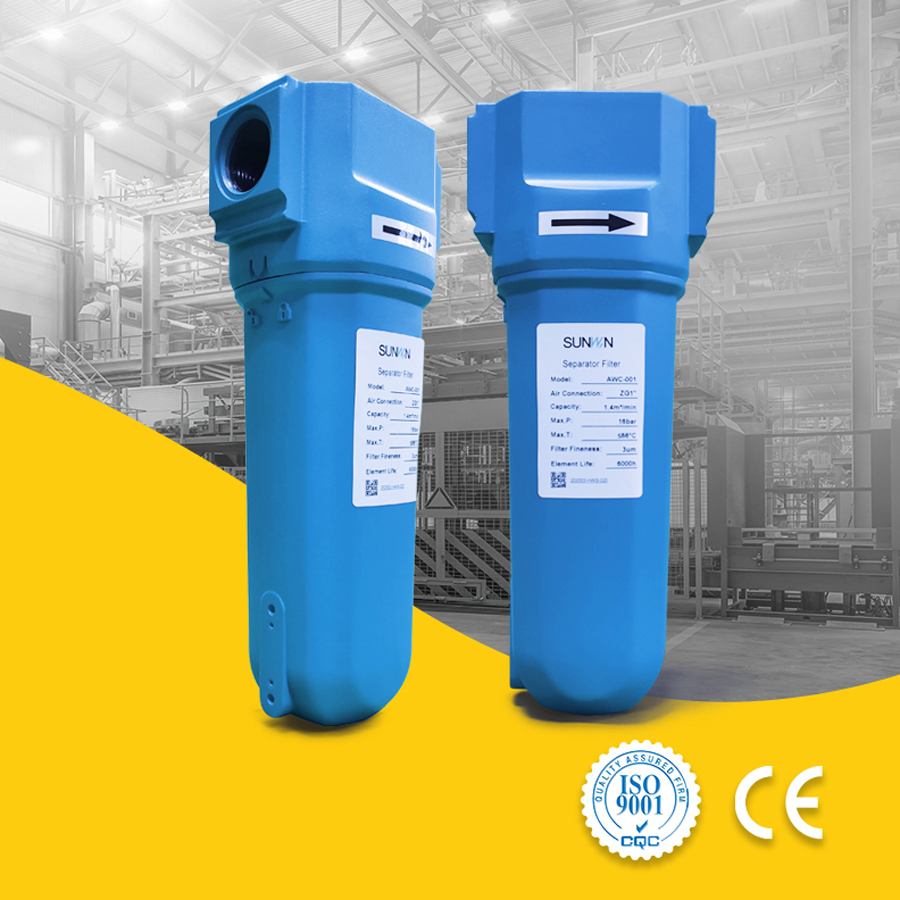

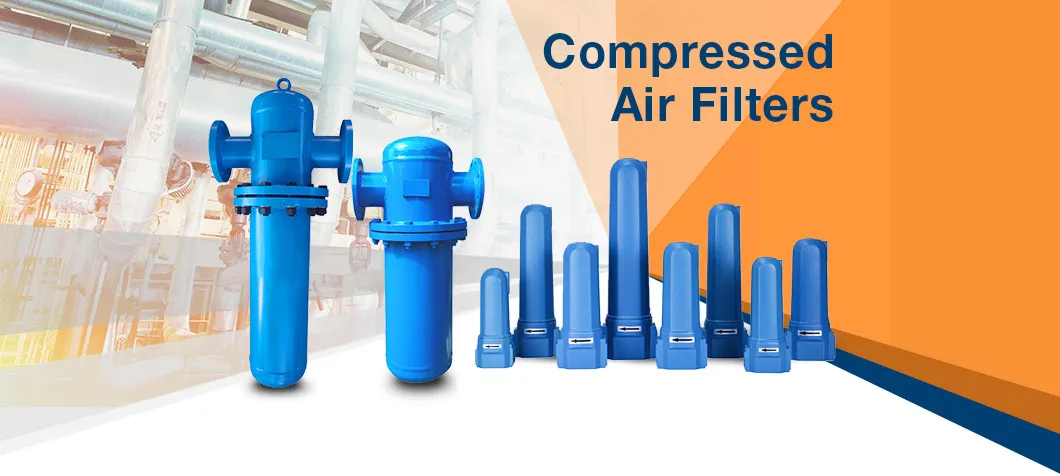

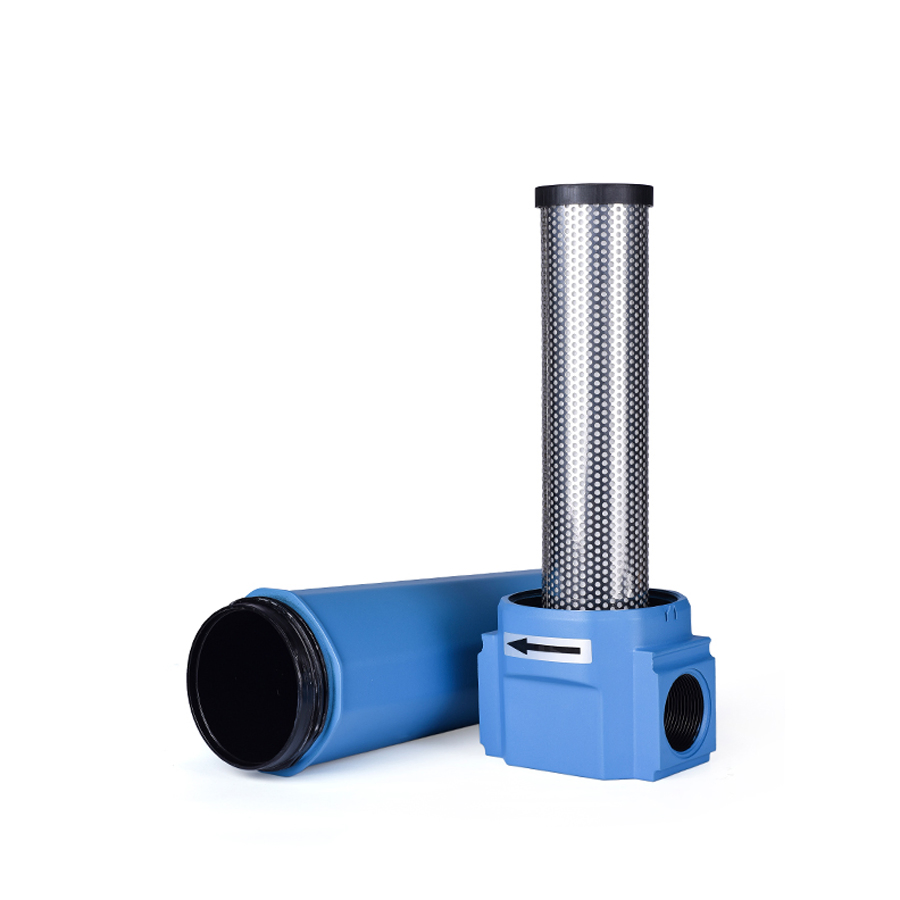

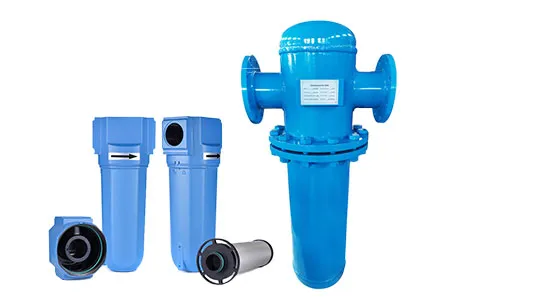

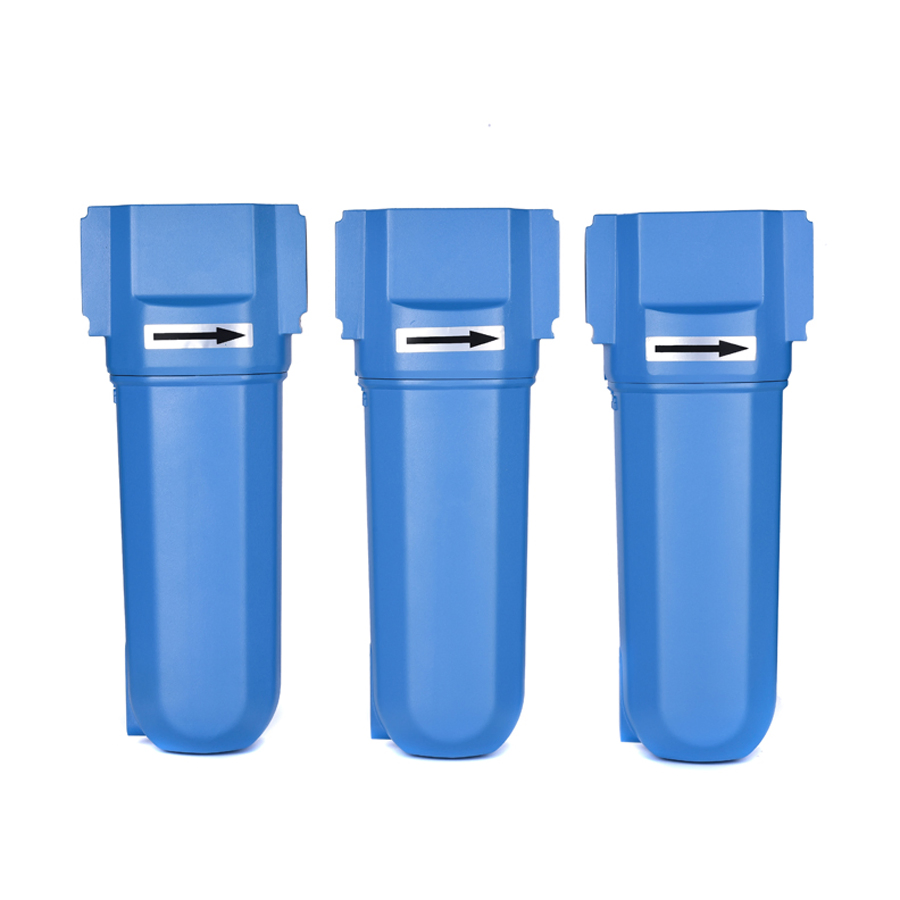

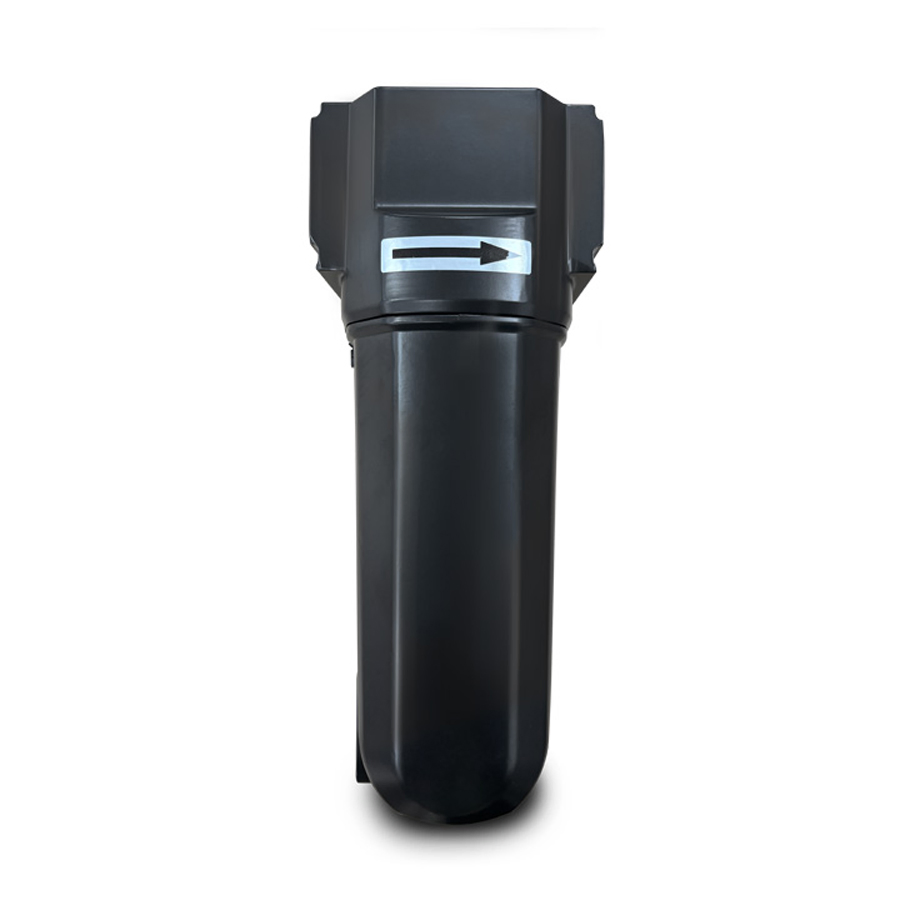

Compressed air can be contaminated by dirt, water and oil, which can damage the downstream appliances. With extensive experience in this sector, we offer a wide range of in-line filters for removing these contamination and protecting the equipment served by compressed air, according to the ISO 8573-1 standards. The flanged filters made up from a flanged carbon steel body containing one or more filtering elements characterised by maximum nominal filtration (99.9%) and very low pressure drops. The cartridges are contained in a welded steel housing and provided with flanged connections at the compressed air inlet and outlet.
| Model | Capacity (Nm³/min) | Connections | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AWC/T/A/AA/H-001 | 1.4 | Rc1" | 102 | 76 | 260 | 1.5 |
| AWC/T/A/AA/H-002 | 2.4 | Rc1" | 117 | 87 | 294 | 2 |
| AWC/T/A/AA/H-003 | 3.8 | Rc1-1/2" | 134 | 85 | 330 | 3 |
| AWC/T/A/AA/H-006 | 6.5 | Rc1-1/2" | 134 | 85 | 428 | 4 |
| AWC/T/A/AA/H-010 | 10.7 | Rc2" | 160 | 108 | 555 | 5 |
| AWC/T/A/AA/H-015F | 18 | DN65 | 310 | 133 | 910 | 25 |
| AWC/T/A/AA/H-030F | 35 | DN100 | 449 | 219 | 1164 | 65 |
| AWC/T/A/AA/H-060F | 65 | DN125 | 513 | 273 | 1218 | 98 |
1. Generous aerodynamic flow paths and edged ports for reducing pressure drops.
2. Differential pressure gauges provide a simple way to check filter status and determine element replacement timing.

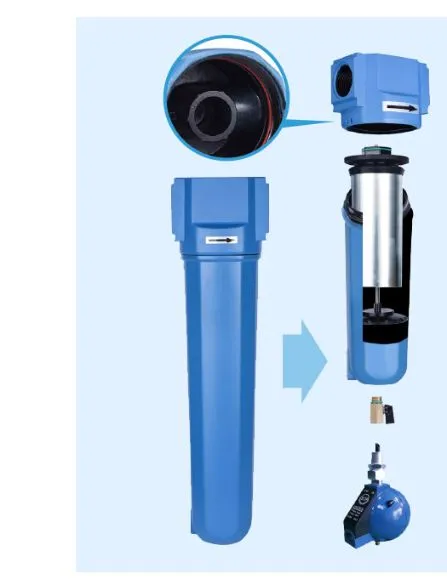

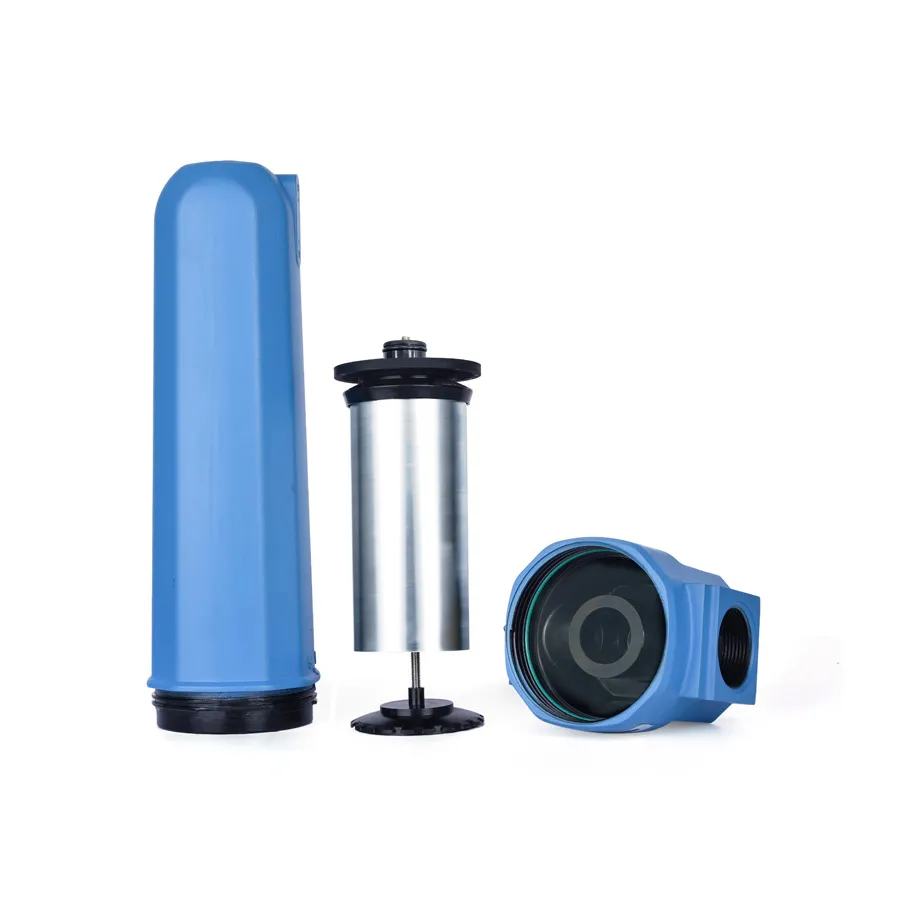

3. Reduced service clearance facilitates element replacement; absence of tie-rods improves the flow path.
4. Antiseptic coating ensures high-quality finish and long-term protection against corrosion.

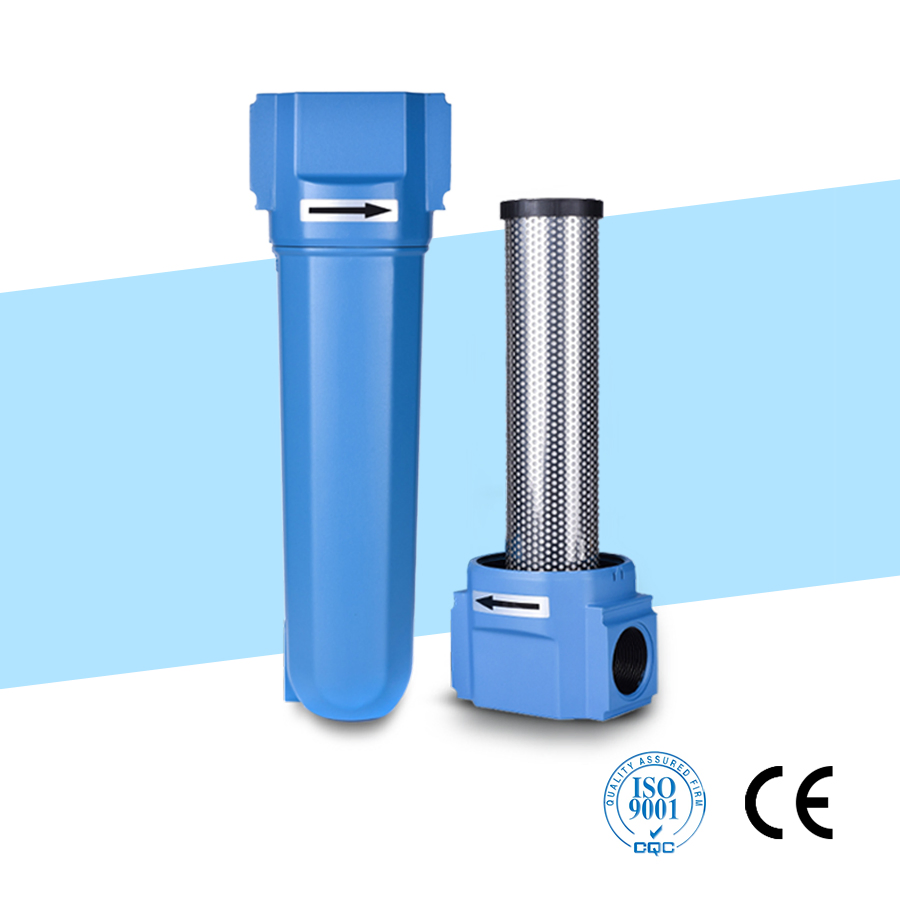

5. Filter elements feature high-quality stainless steel cores and end caps resistant up to 120 °C.
6. Outer drainer made of strong alloy material for timely and durable drainage.
We are a manufacturing and trading combo specializing in compressed air drying and purification equipment for more than 15 years. Our professional technical team provides reasonable suggestions and technical support according to various customer needs and site conditions. Our products are sold to more than 40 countries, including the United States, Germany, Australia, Japan, and South Korea. We have full experience in exporting machines to the Southeast Asian market. Our products have passed the latest CE and ISO certificates.
