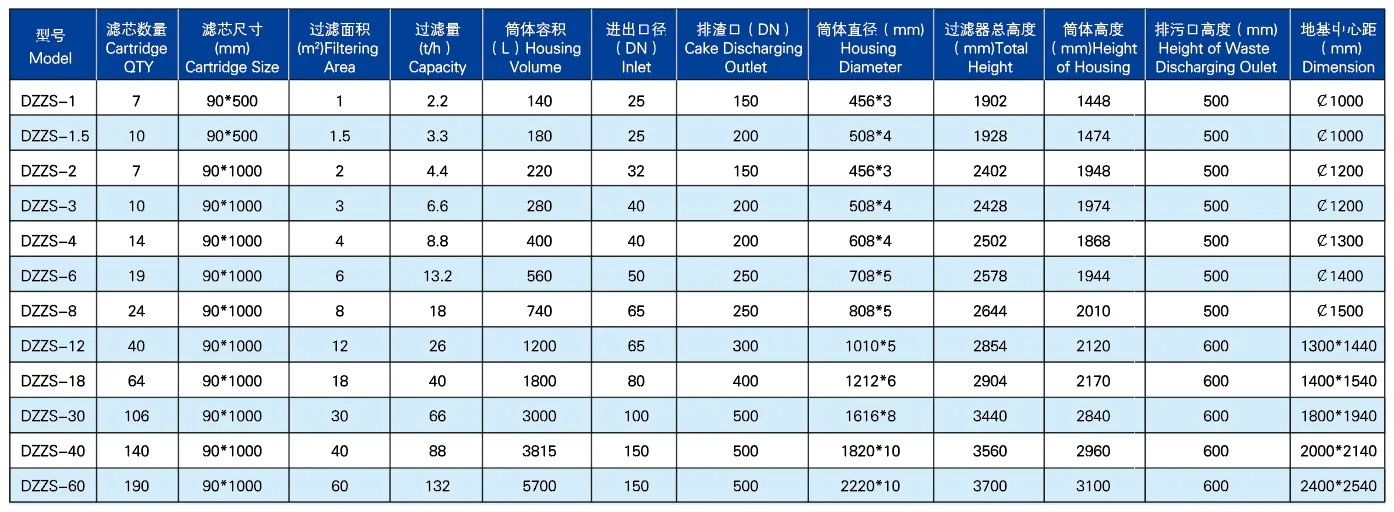

| Model NO. | DZZS-60 |
| Capacity(T/H) | 132 |
| Housing Volume(L) | 5700 |
| Inlet(DN) | 150 |
| Cake Discharging Outlet(mm) | 500 |
| Housing Diameter(mm) | 2220*10 |
| Transport Package | Woodcase |
| Package Size | 450.00cm * 180.00cm * 250.00cm |
| Package Gross Weight | 500.000kg |
| Origin | China |

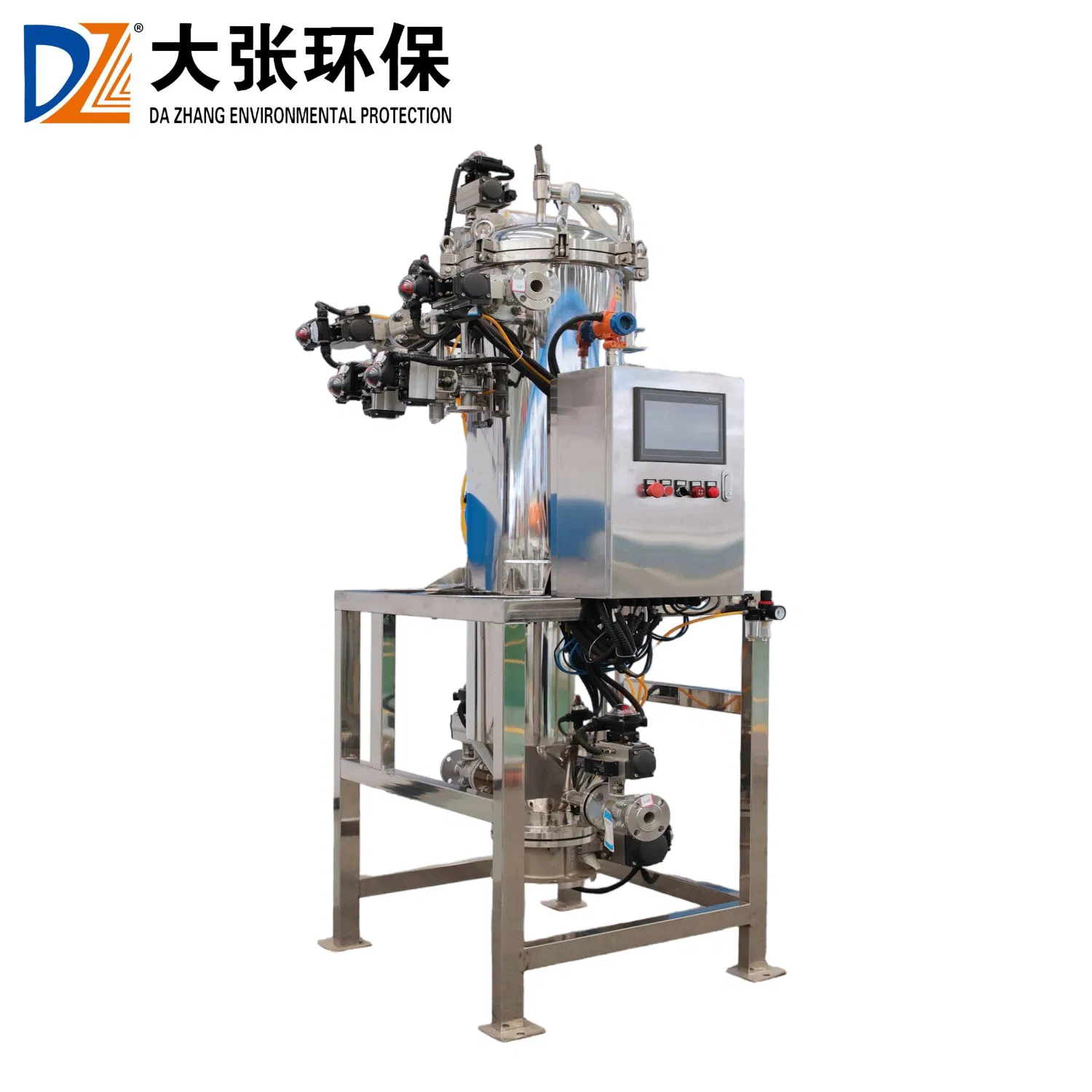

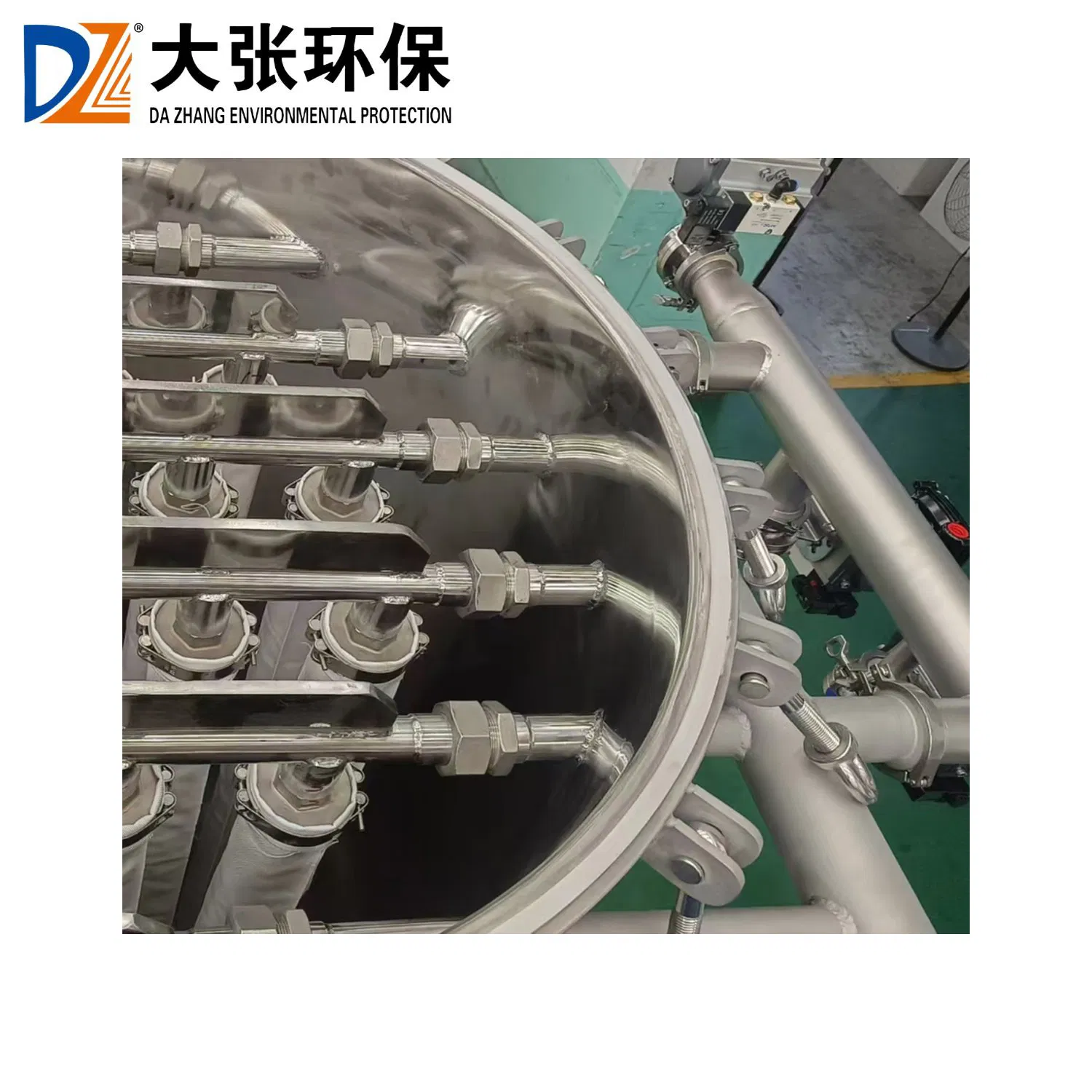

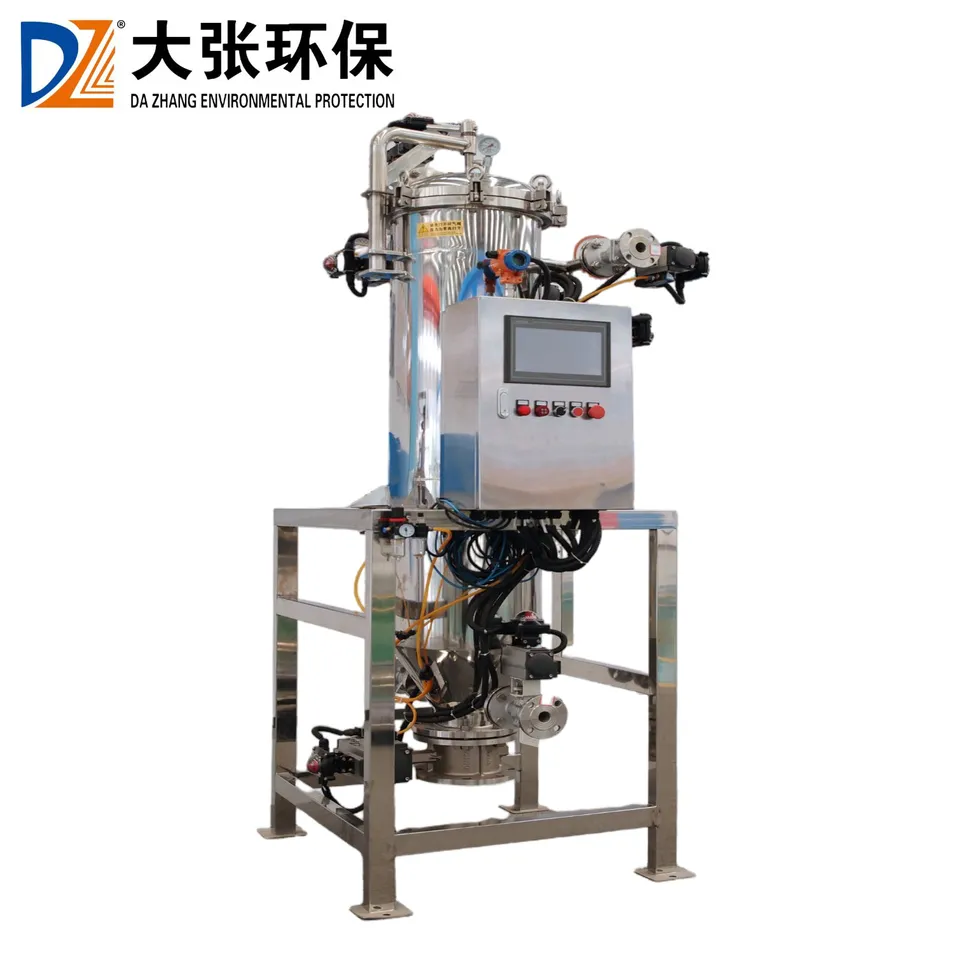

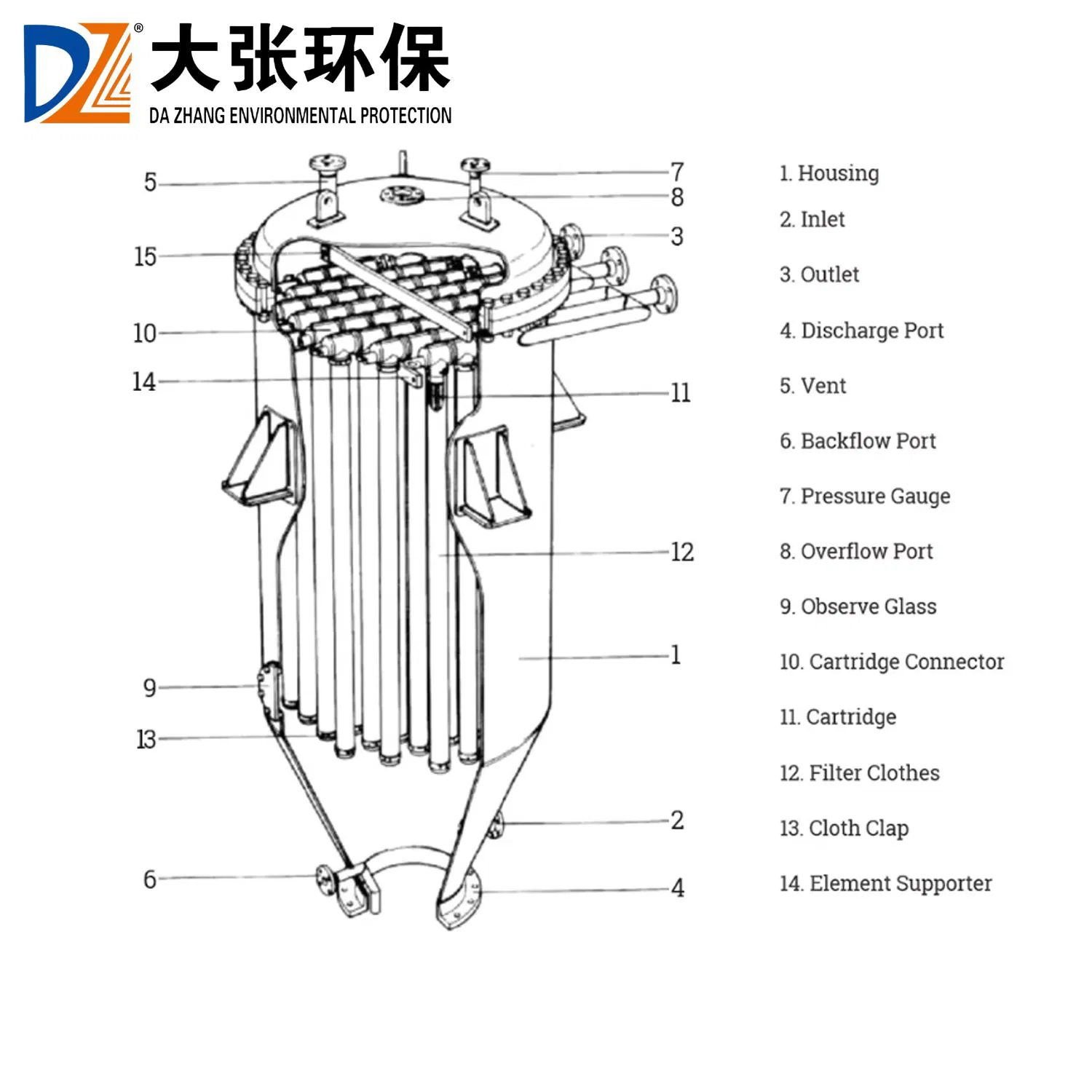

The candle filter stands out as a fully automated, sealed filtration solution engineered for precision in solid-liquid separation. Its core design features vertical filter units—porous petaloid cartridges wrapped in filter cloth, secured with specialized clamps to ensure airtight performance. This structure guarantees a pollution-free process, with zero leaks to safeguard both workplace safety and environmental compliance.

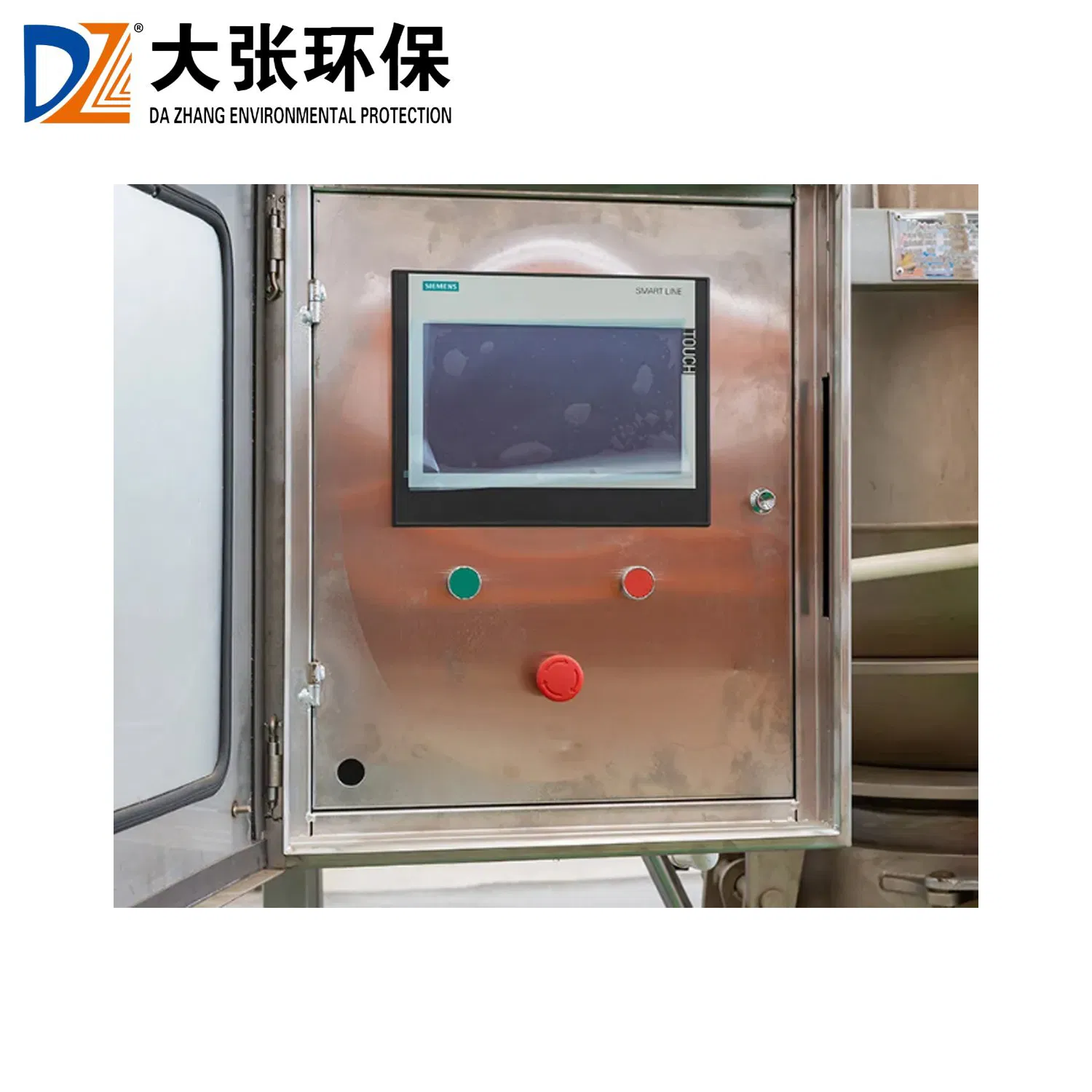

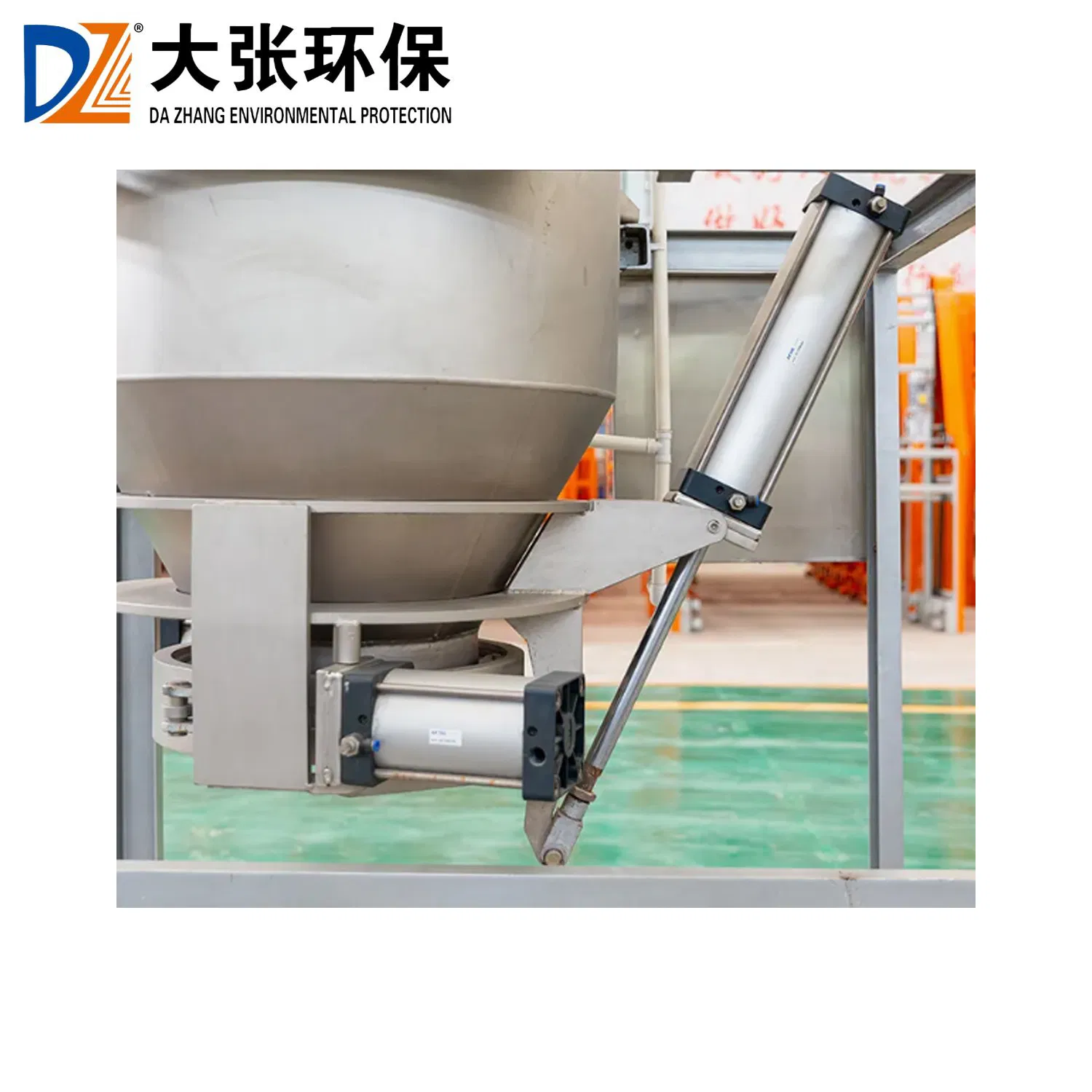

The filtration cycle, controlled by PLC, unfolds seamlessly: raw material is pumped into the system, where solids gradually form a filter cake on the cloth. Once the cake reaches optimal thickness, clarified liquid is directed to subsequent processes. When pressure exceeds 0.5MPa, the system automatically triggers backblowing (via compressed air, nitrogen, or steam) to dislodge and discharge cake, completing the cycle with minimal manual input.
Available in carbon steel, 304, or 316L stainless steel, and with customizable O-rings for diverse fluids and temperatures, it adapts to chemical, food, and pharmaceutical industries effortlessly. Whether handling high-viscosity liquids or solutions with heavy impurities, it maintains consistent efficiency, making it a reliable choice for businesses prioritizing speed, cleanliness, and operational ease.
