| Model NO. | LF9080 | Product Name | Engine Oil Filter |
|---|---|---|---|
| Height | 11.88 Inches / 301.8 mm | Material | Premium Metal |
| Thread Size | M95X2.5-7h | Max Differential Pressure | 25mpa |
| Tank Diameter | 118.5 mm | Sealing Ring OD | 118.9 mm |
| Property | Corrosion Resistance, High Temperature Resistance | ||
| Customization | OEM & ODM / Logo / Sample Support | ||

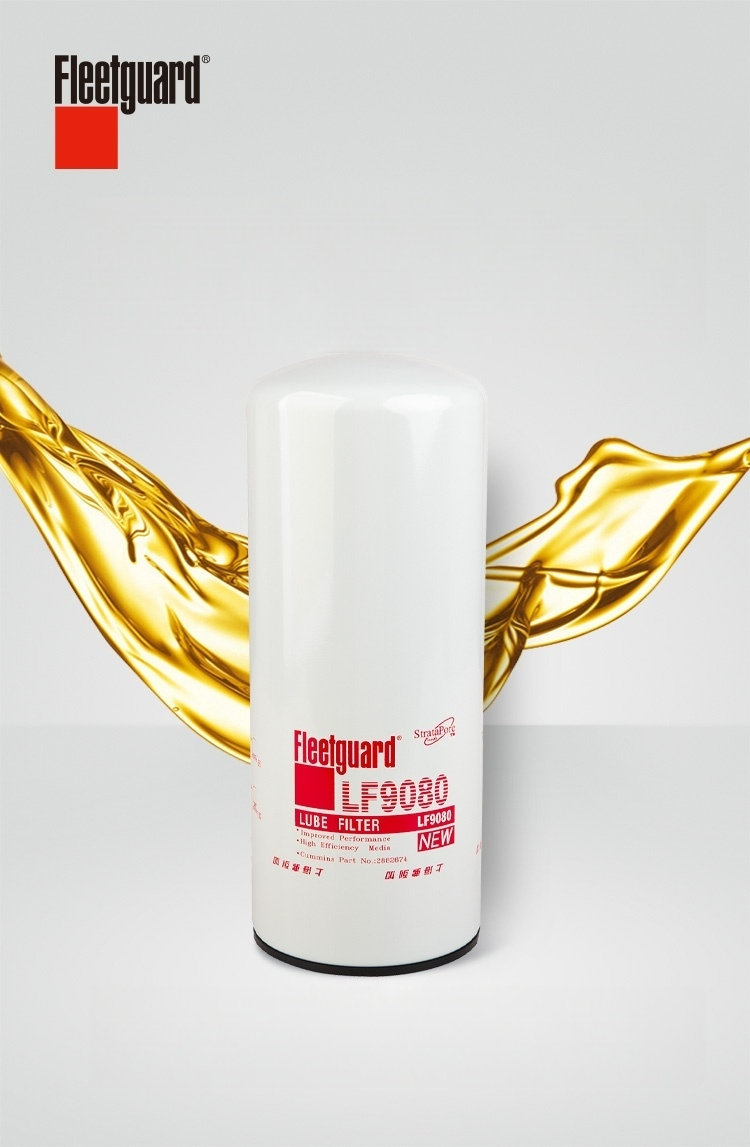

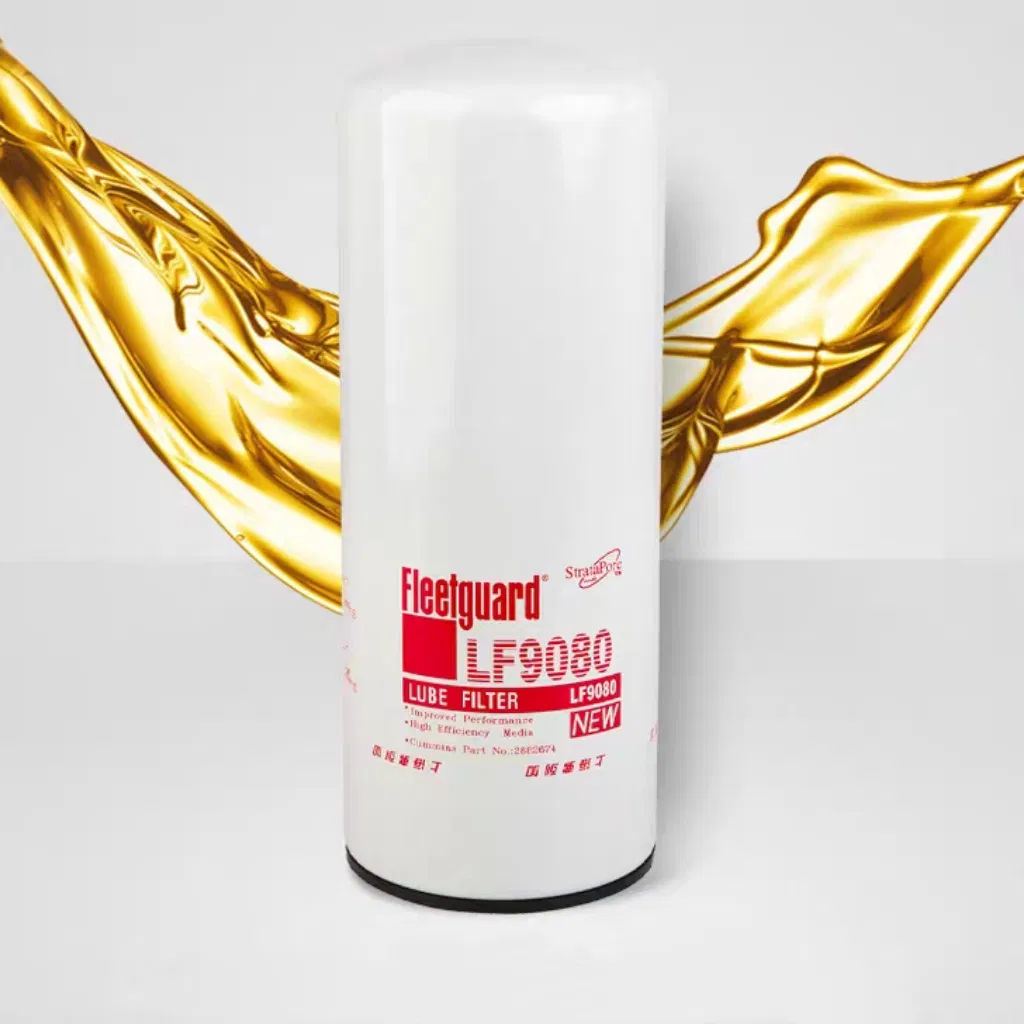

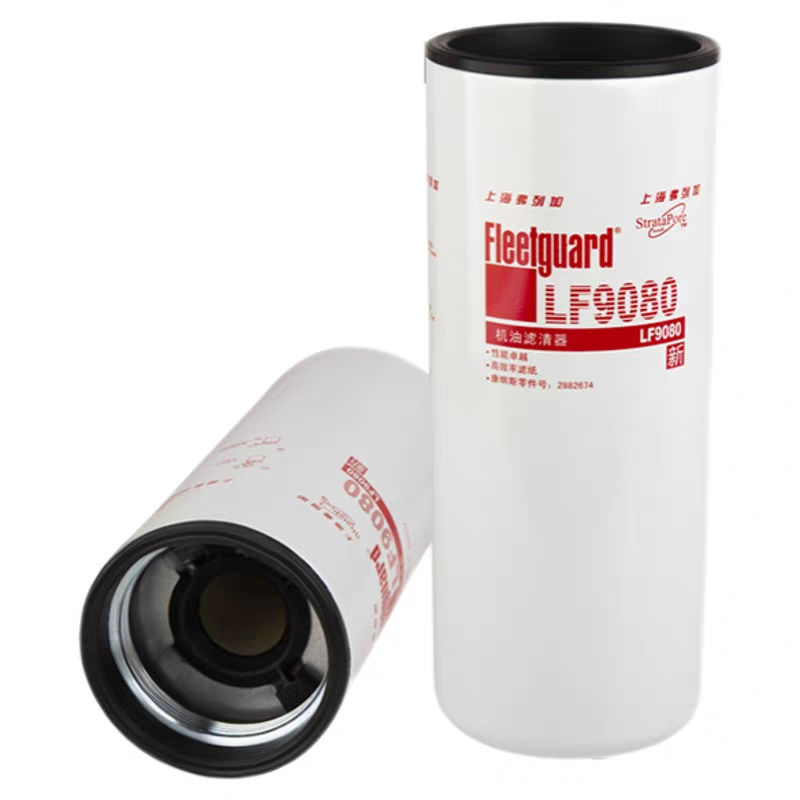

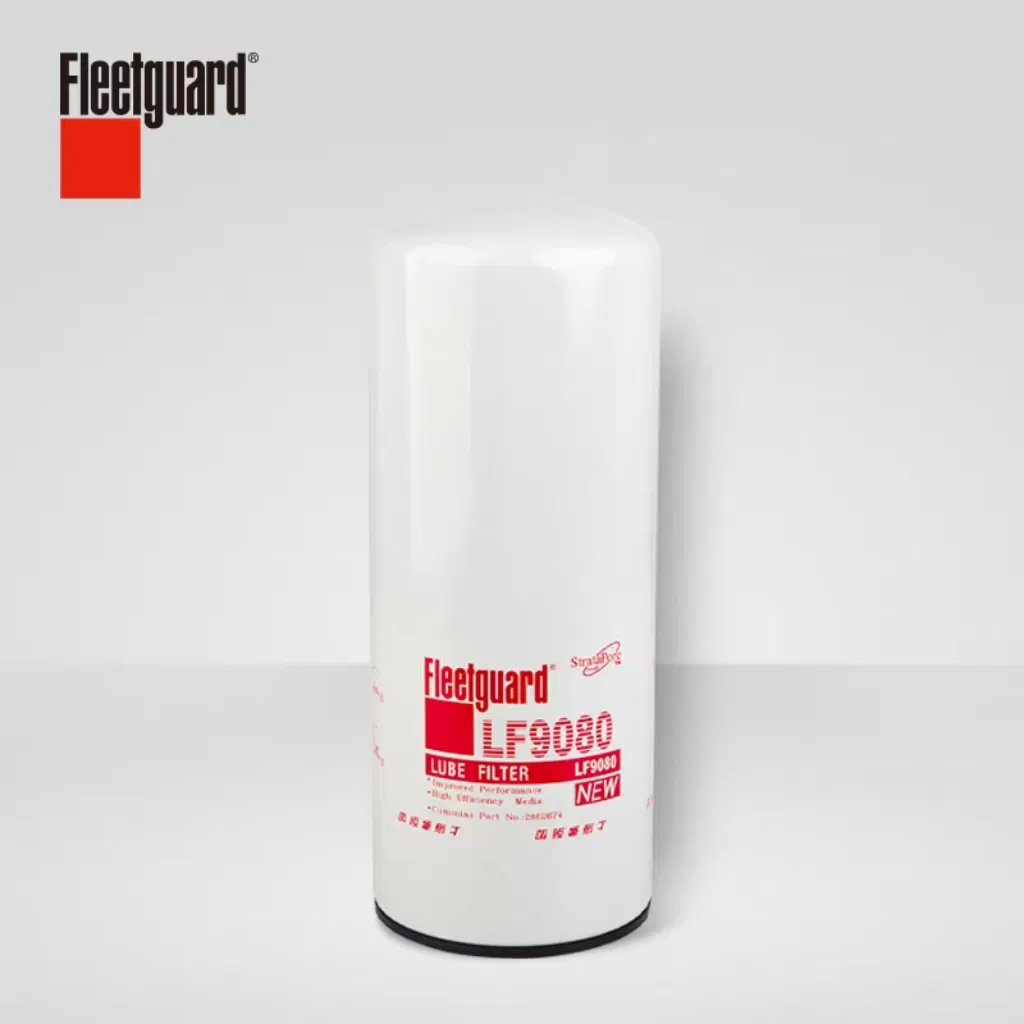

The Heavy Duty Engine Oil Filter is a premium lube combo spin-on filter engineered for heavy-duty trucks, construction machinery, and industrial equipment. Designed with multi-layer synthetic StrataPore media, this oil filter delivers outstanding engine oil filtration efficiency, capturing metal particles, soot, sludge, and dust to keep the lubricant clean and extend engine life.
Its full-flow + by-pass combination design integrates two filtration stages in a single spin-on housing, reducing plumbing complexity while supporting long service intervals in severe duty applications. It is widely used as a reliable, high-performance lubrication protection solution for commercial vehicles.
| TECHNICAL PARAMETERS | |
|---|---|
| Tank Diameter | 118.5 Mm |
| Sealing Ring Outer Diameter | 118.9 Mm |
| Sealing Ring Inner Diameter | 101.9 Mm |
| Thread Size | 2 1/4-12 UNS |
| Total Height | 301.8 Mm |
| OEM & ODM Custom | Accept |
Specially designed to remove metal wear particles, carbon soot, and sludge. By effectively controlling contamination, it significantly reduces engine wear and extends service life in heavy-duty diesel applications.

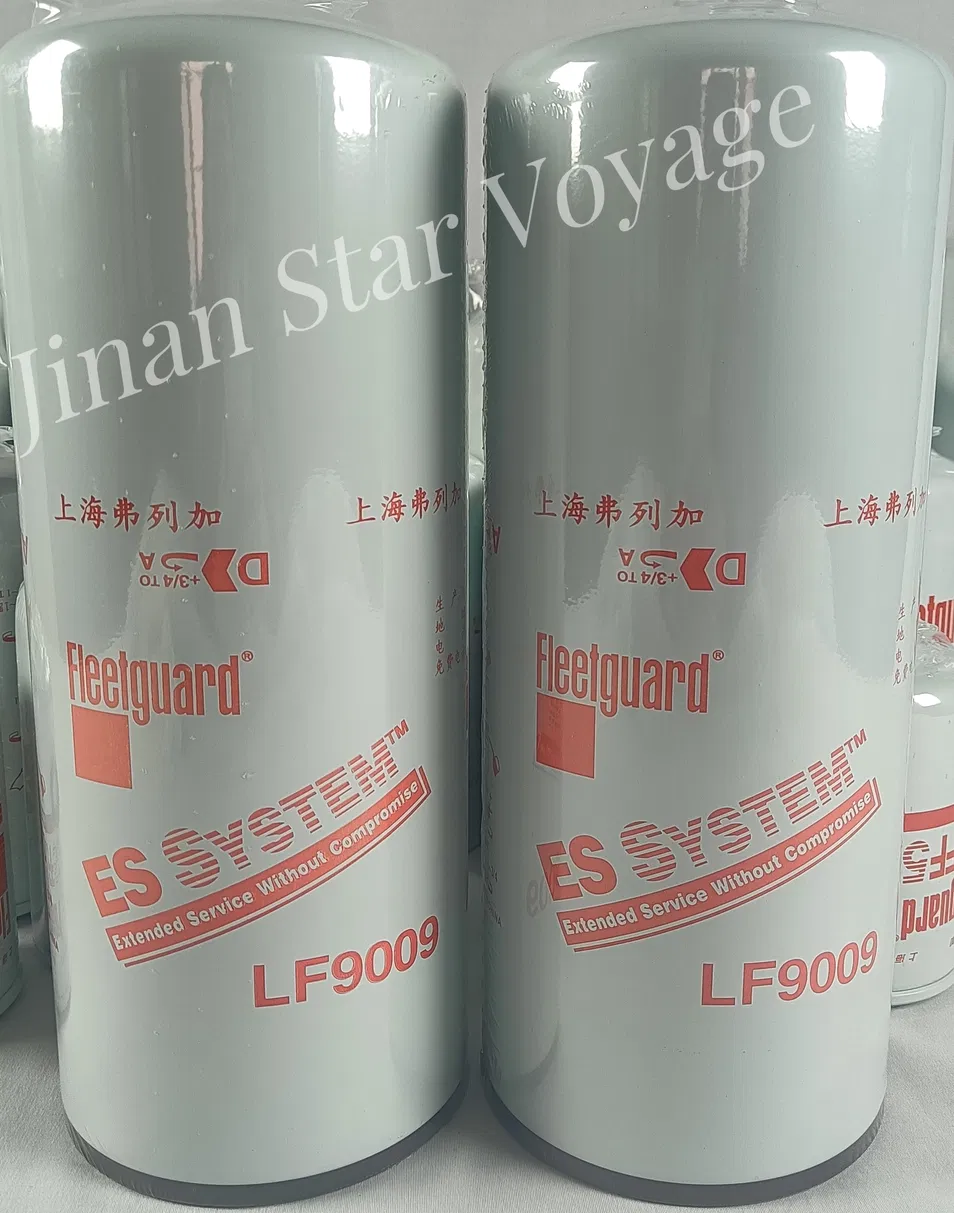

Combines two units into one. The full-flow section cleans all oil before it enters the engine, while the by-pass section filters fine particles at higher precision. This integrated design reduces external piping and installation space.
Engineered for long-haul transportation and construction hauling. It supports extended maintenance intervals, reducing downtime and the total cost of ownership for fleet operators.

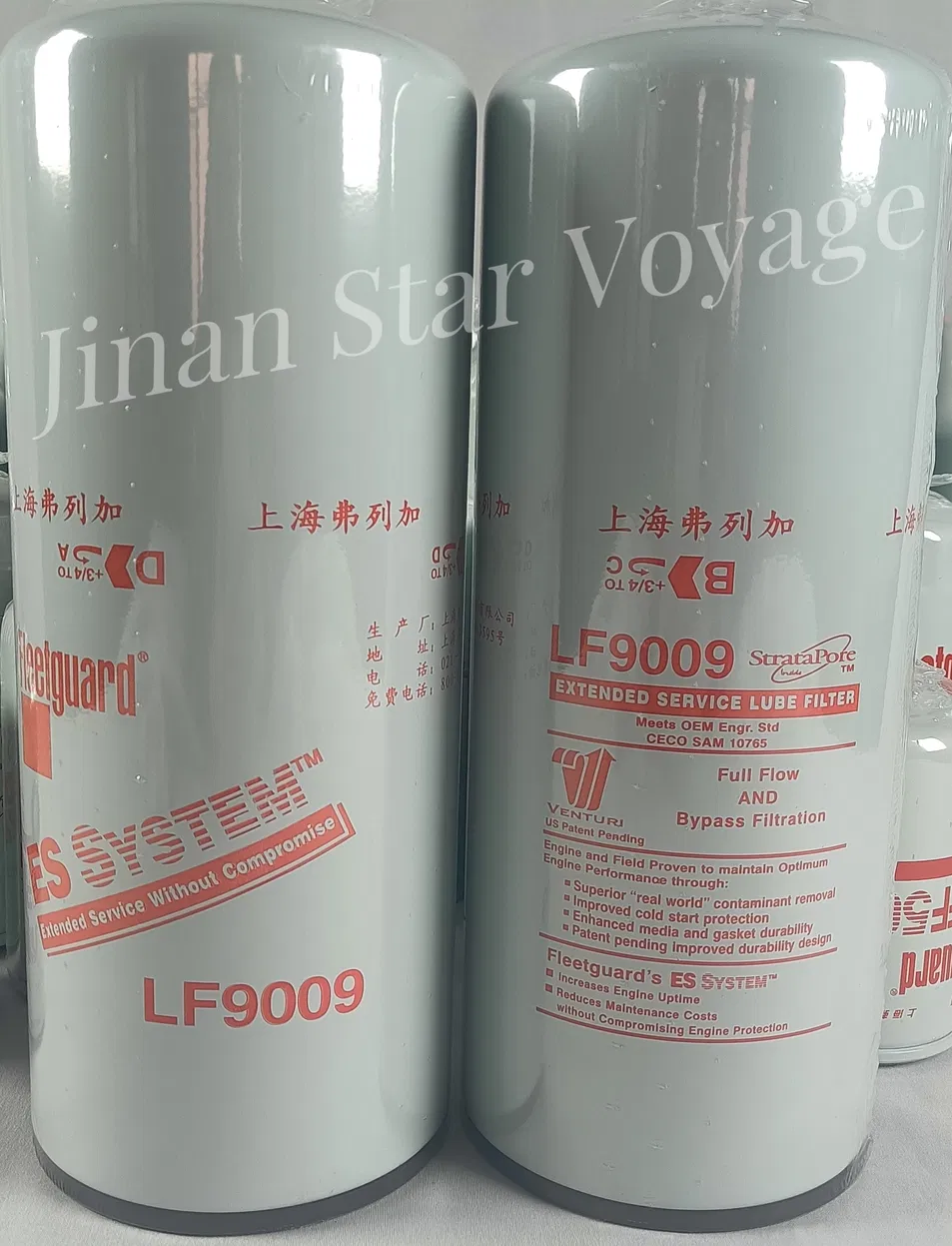

• Heavy Duty Diesel Engines: Commonly used on ISC 8.3 L, ISL 9.0 L, ISM, and other medium- to large-displacement engines.
• Commercial Vehicles: Applied in tractors, dump trucks, and highway trucks from various leading brands equipped with high-torque engines.
• Construction Machinery: Popular in wheel loaders, excavators, cranes, motor graders, and rollers working in high-dust environments.
• Industrial Power: Suitable for diesel generator sets, standby power systems, industrial pump stations, and air compressors.
We provide high-quality spare parts for trucks, construction machinery, generator sets, and marine systems. Our expertise covers a wide range of vehicle and engine parts including well-known domestic and international brands. We are committed to providing customers with reliable filtration solutions and comprehensive technical support.
