Product Description

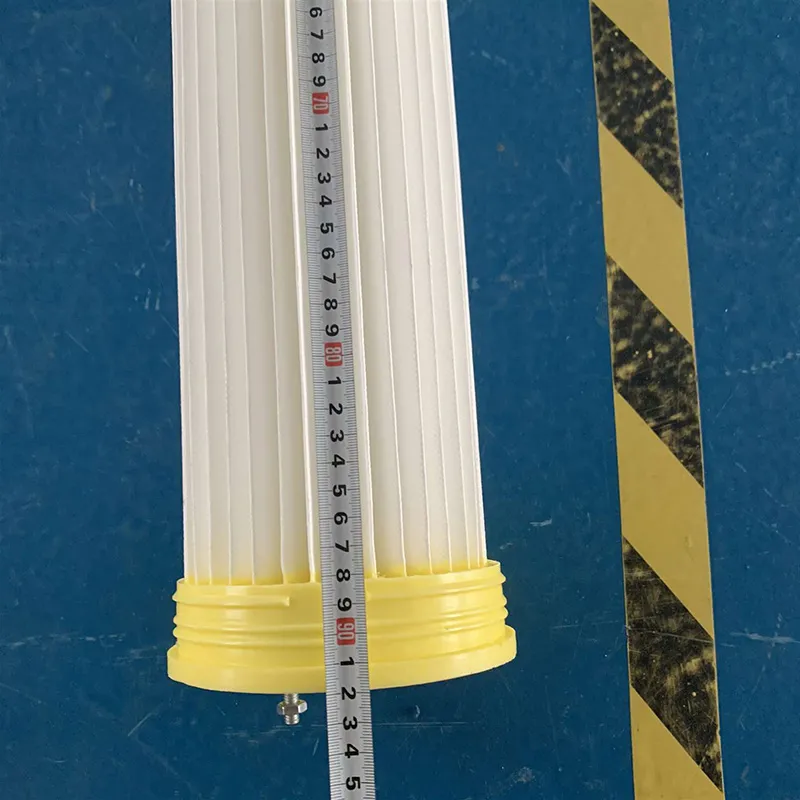

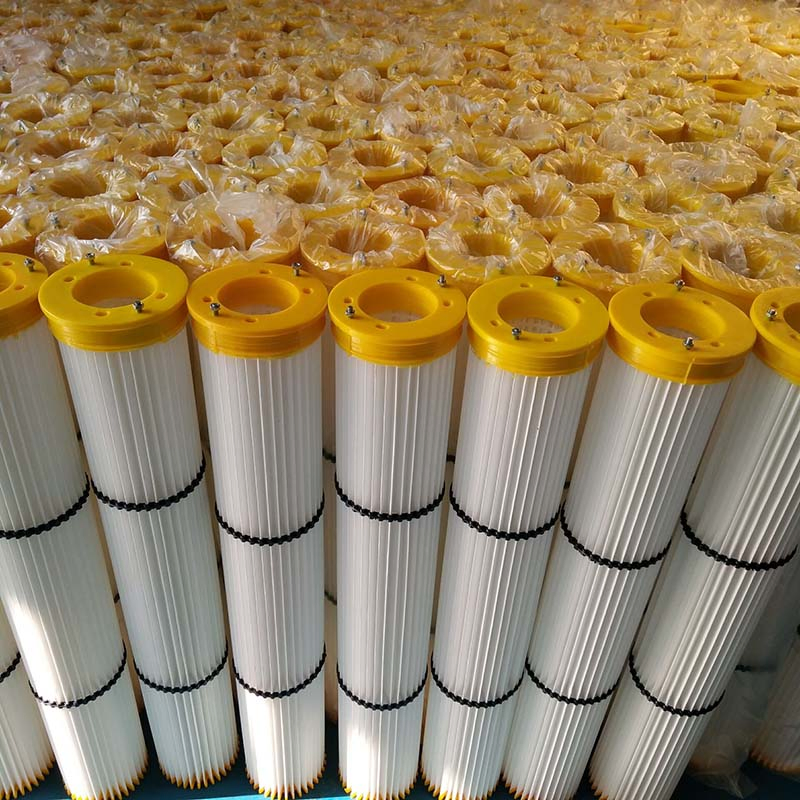

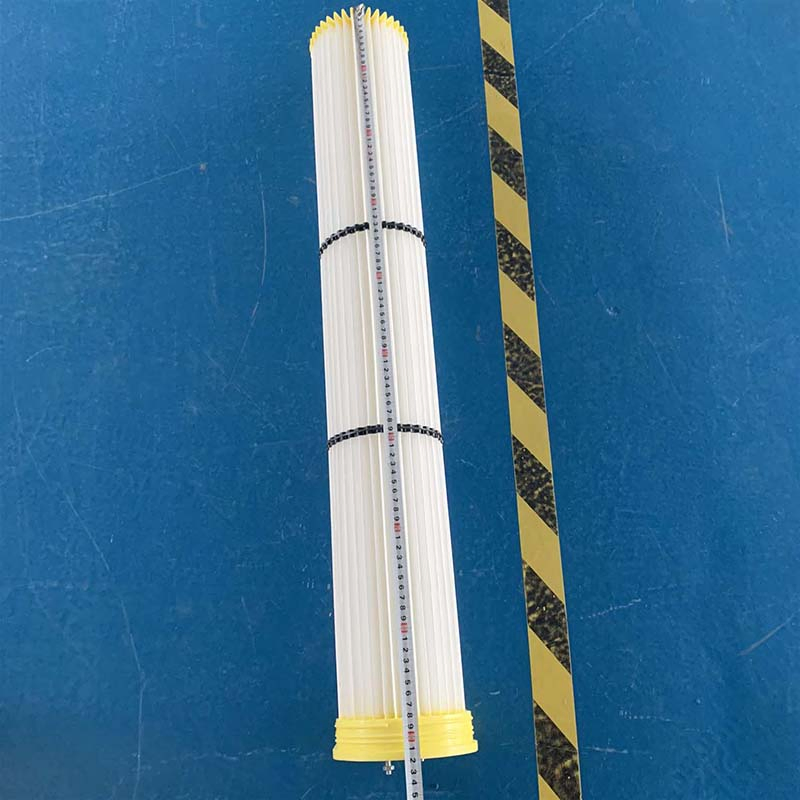

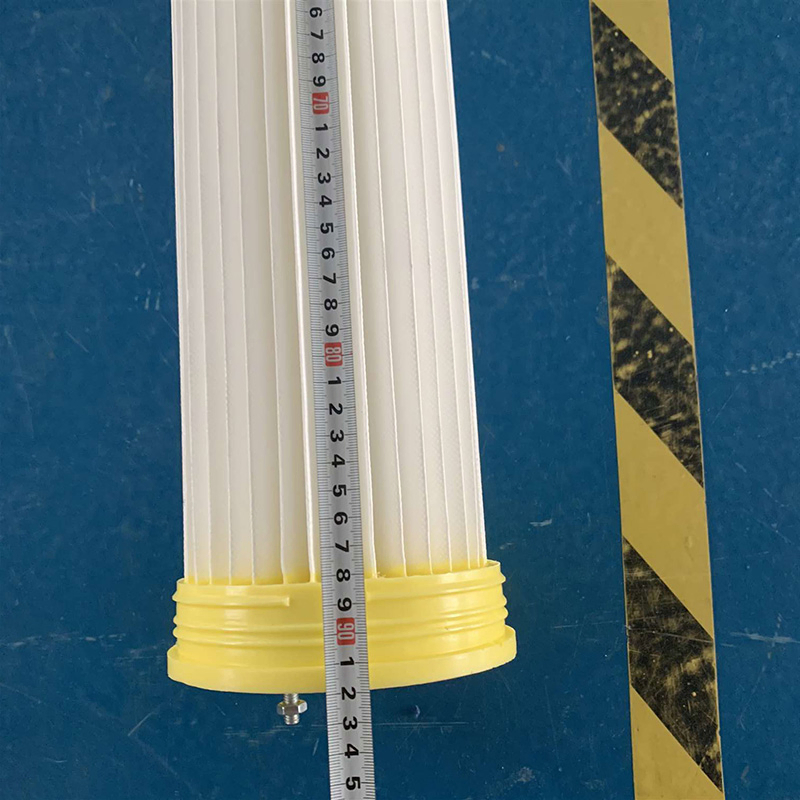

Water and Oil Repellent Polyester Filter Cartridge For Cement Plant
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Key Features:
- Suitable for the filtration of very fine dust type in welding fumes, pharmaceutical and construction industries.
- Spun bonded polyester with PTFE membrane offers 99.99% filter efficiency.
- Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
- Excellent resistance to chemical erosion.
- Electrochemical plate/stainless steel top and bottom, no rust; Perforated zinc galvanized inner core.
Technical Specifications
| Model |
OD (mm) |
ID (mm) |
Length (mm) |
Area (m²) |
| F3566 |
Φ352mm |
Φ241mm |
660mm |
9.4m2 |
| F3275 |
Φ324mm |
Φ213mm |
750mm |
10.7m2 |
| F3288 |
Φ324mm |
Φ213mm |
880mm |
12.5m2 |
| F3290 |
Φ324mm |
Φ213mm |
915mm |
13.0m2 |
Filter Material Details:
- Base media: Spunbonded polyester
- Operating efficiency: 99.9% on 1 micron
- Washable: Several times
- Maximum operating temperature: 200°F / 93°C
- Abrasion & Chemical resistance: Excellent
- Optional: Flame retardant media (FR) available to order
Structural Components:
- Gasket: Neoprene rubber for absolute hermetic seal.
- Inside cage: Galvanized steel to prevent corrosion.

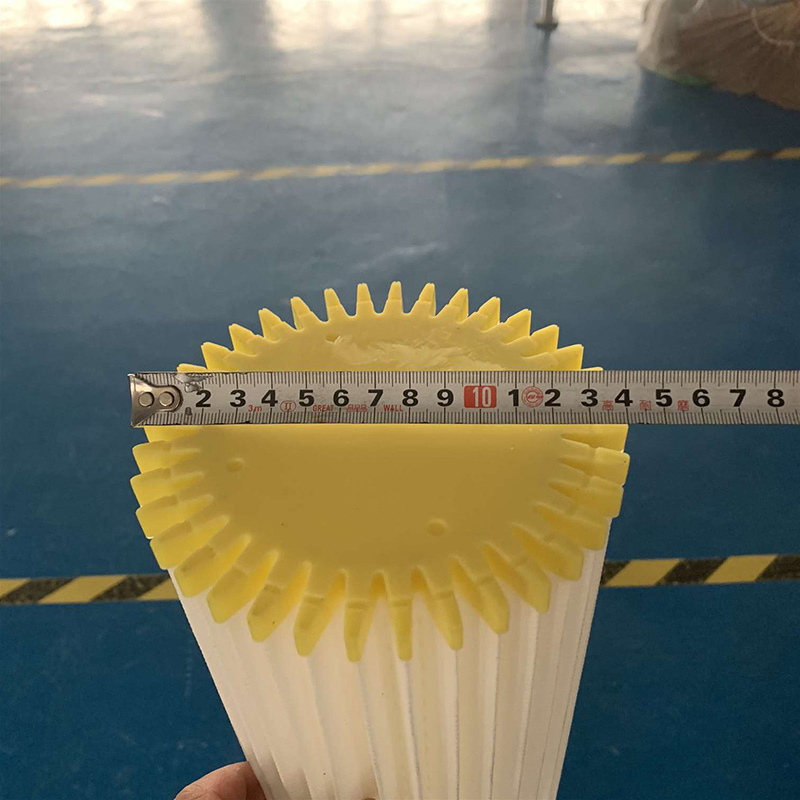

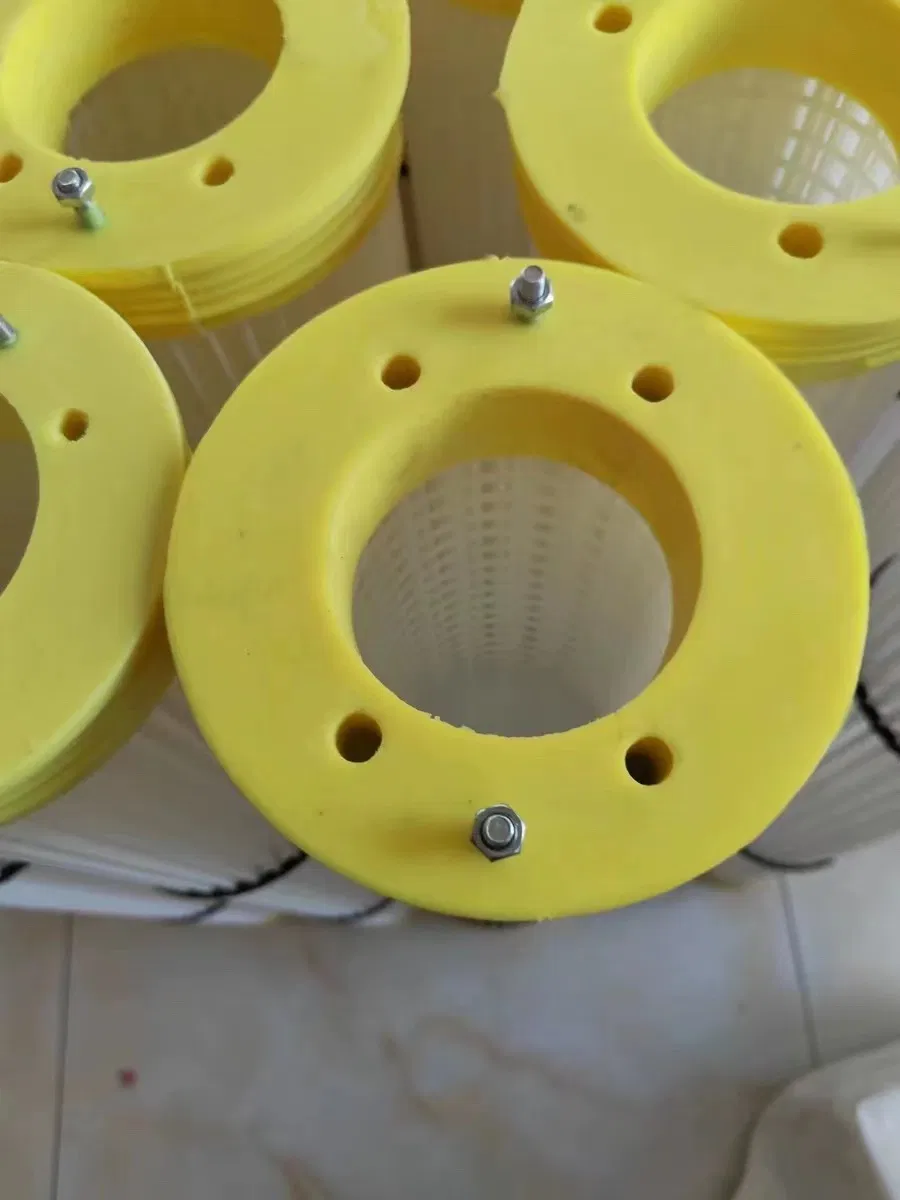

- Molded top: Available in various styles and sizes for tubesheet holes.
- Molded bottom: Resists abrasive wear at the bottom.
Applications & Markets:
- Markets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical, cement, woodworking.
- Dust types: Fumed silica, metallic fume, metallurgical powders, and more.
- Suitable for collectors: SFF/XLC, SFFK, Torit DFT.
Frequently Asked Questions
What is the filtration efficiency of this cartridge?
The spun bonded polyester with PTFE membrane offers a high filtration efficiency of 99.99% for fine particulates.
Is the filter media washable?
Yes, the spunbonded polyester media is durable and can be washed several times to extend its service life.
What is the maximum operating temperature?
The maximum recommended operating temperature for this filter cartridge is 200°F (93°C).
In which industries can this filter be used?
It is widely used in cement plants, pharmaceutical manufacturing, thermal spraying, welding, and woodworking industries.
Does the filter provide resistance to chemicals?
Yes, the spun bond media offers excellent resistance to both chemical erosion and abrasion.
Are there flame retardant options available?
Yes, optional flame retardant (FR) media can be provided upon request for specific order requirements.
