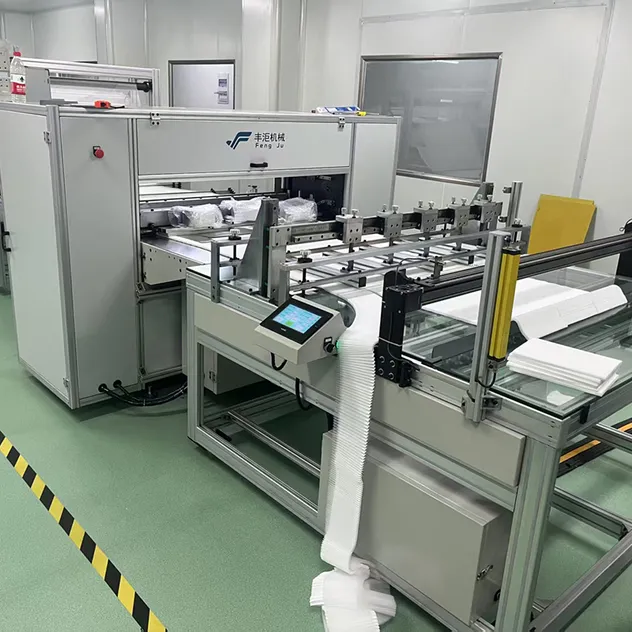

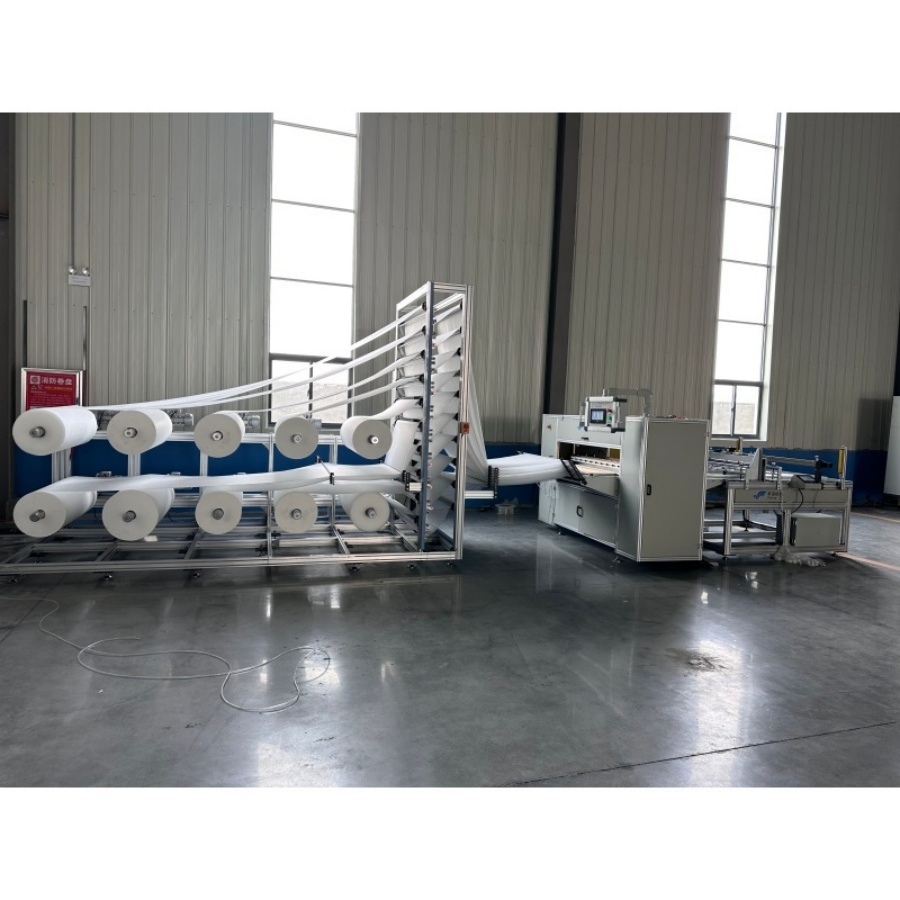

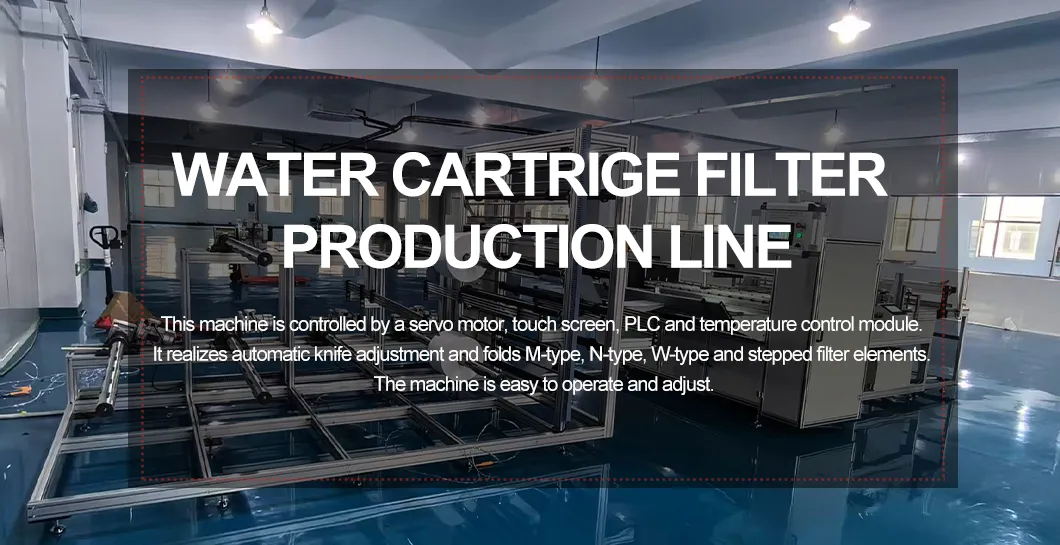

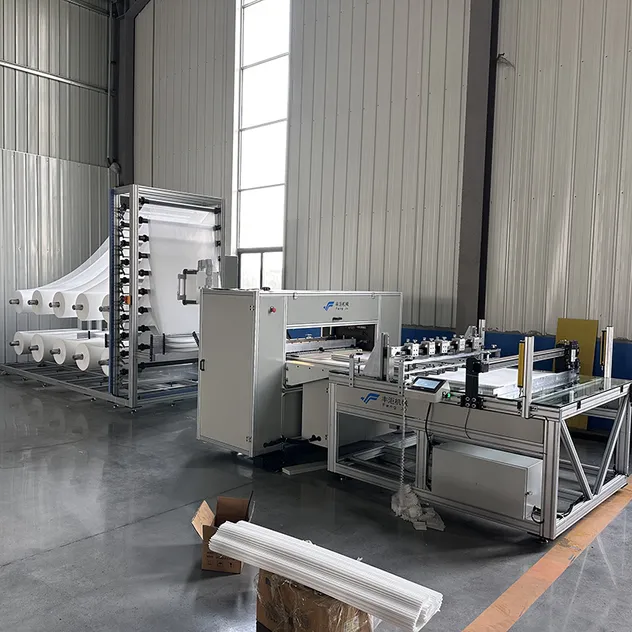

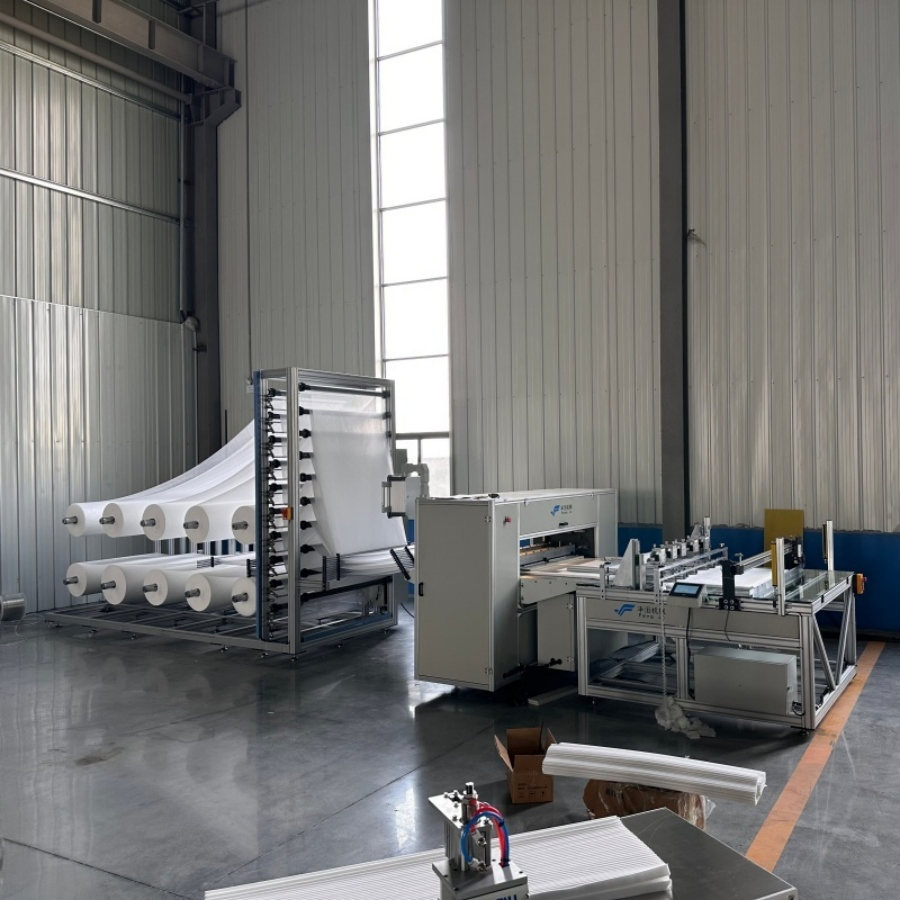

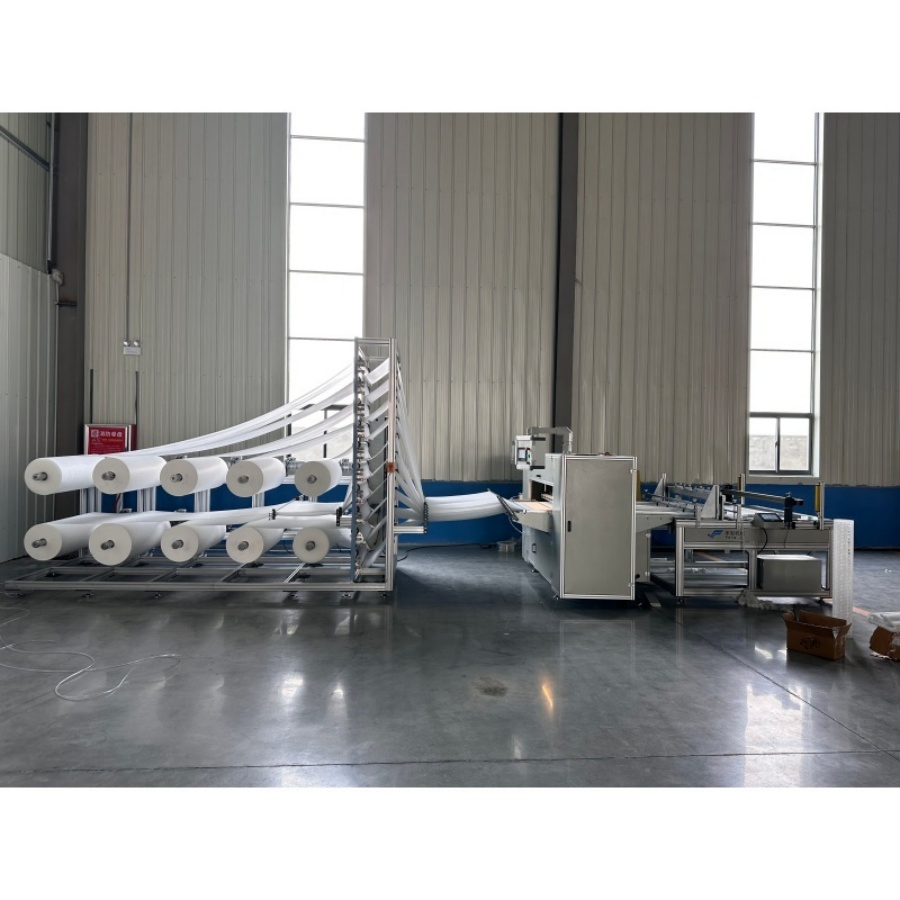

Full-Auto Anti-Bacterial Cartridge Water Filter Production Manufacturing Line

Customization:	Available
Usage:	Environmental Protection, Chemical Industry
Motive Force:	Pressure

Basic Info

Model NO.	water cartridge filter production line
Style	Tube
Performance	Efficient Filtration
Certification	CE
Crated Dimensions	2600 X 1910 X 2020 mm
Weight	950 Kg

Maximum Product Width	1250mm
Fold Height Range	4-50mm
Folding Speed	150 Folds/Min
Temperature Control	Room Temperature - 180°C
Operating Voltage	AC 380V (Three-Phase, Four-Wire)
Total Machine Power	14.5kw

Product Description

Maximum product width	1250mm
Fold height range	4-50mm
Folding speed	150 folds/min
Temperature control	Room temperature - 180°C (separate upper and lower heating)
Operating voltage	AC 380V (three-phase, four-wire)
Servo/Touch/Motion Controller	Xinjie Brand
Fold height adjustment	Automatic adjustment by servo system

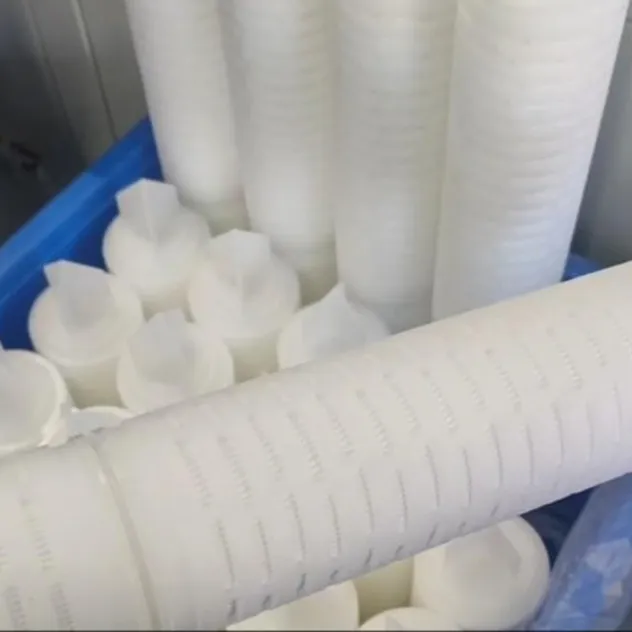

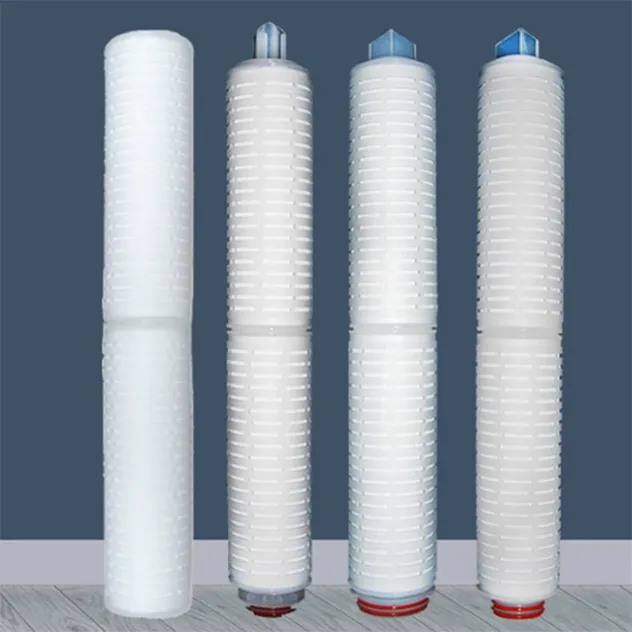

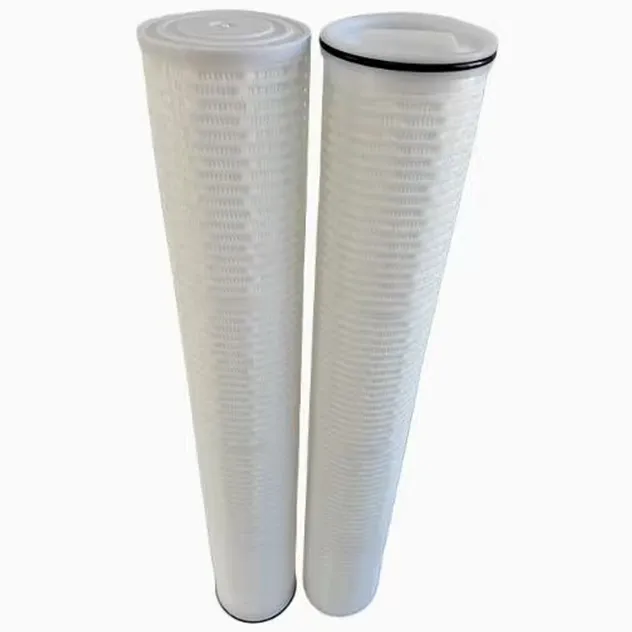

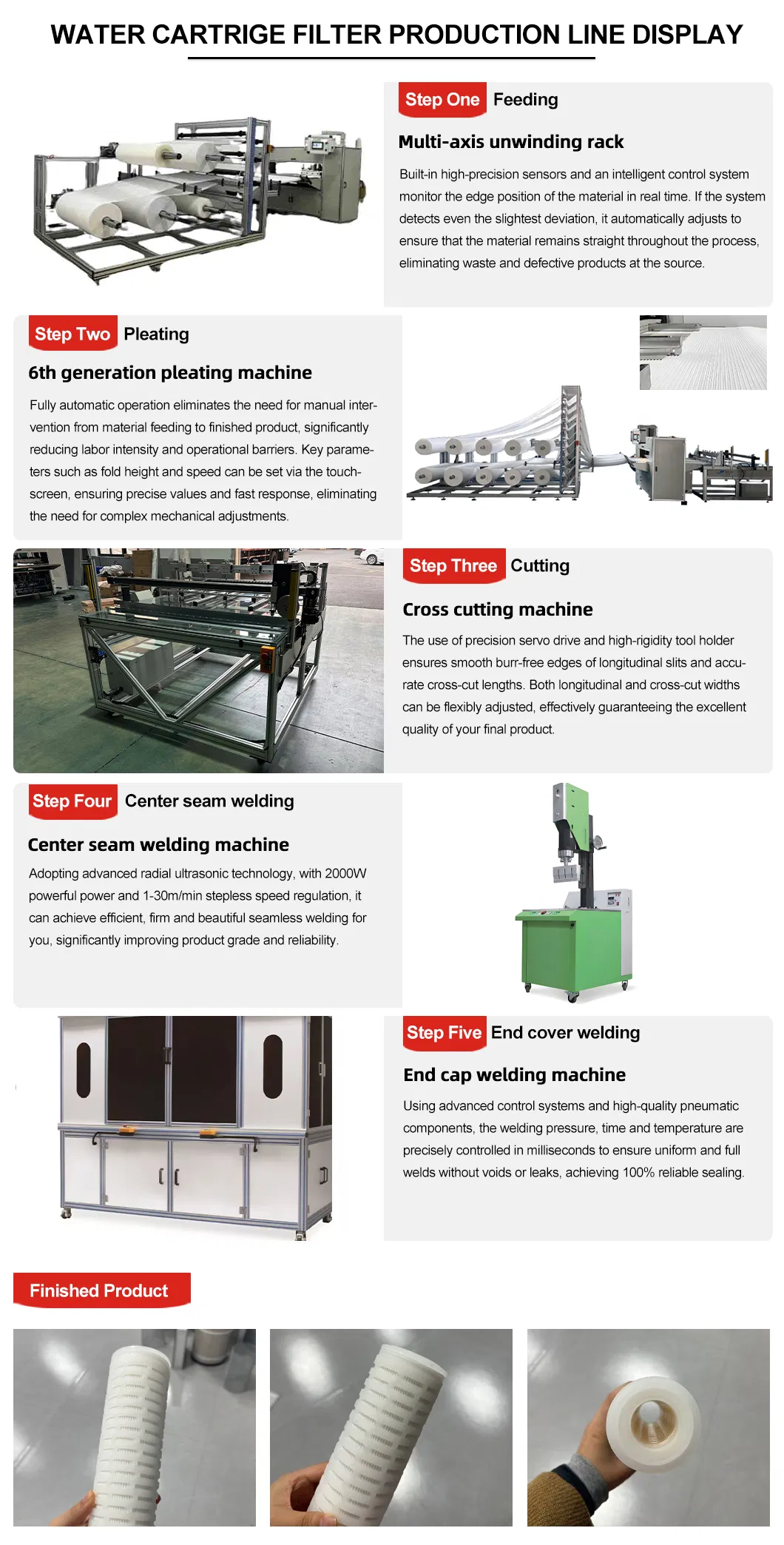

Finished Product Display

Technical Specification

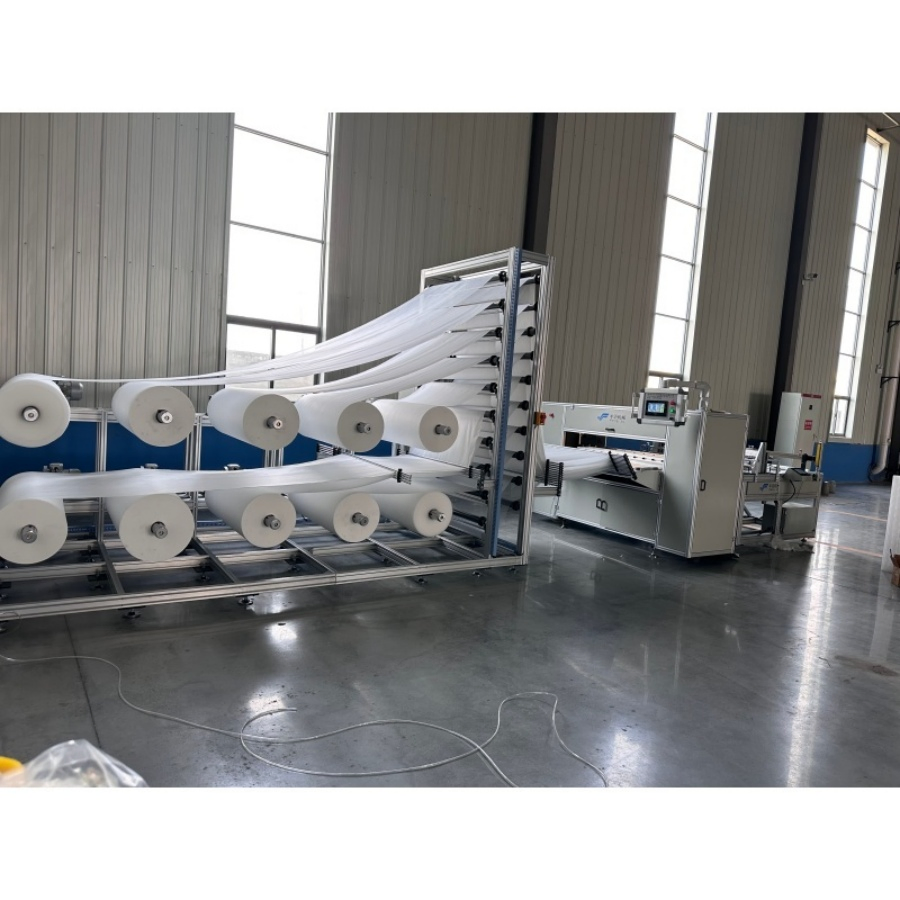

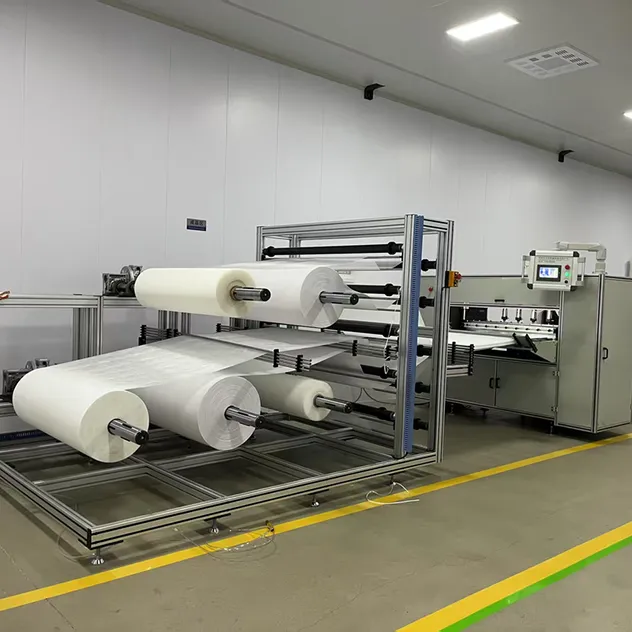

7-axis Automatic Unwinder

Effective unwinding width	1050mm
Unwinding coil diameter	600mm
Capacity	7 coils with independent control

Slitting & Cross-cutting Machine

Operating voltage	AC220V/50Hz
Number of slitting blades	5 blades
Effective width	1250mm
Safety Features	Light barrier protection

Key Benefits

High Flow Rate: Significantly greater capacity than standard elements, saving space and equipment costs.
Filtration Efficiency: Smooth water flow with lower resistance and reduced energy consumption.
Long Service Life: High dirt holding capacity extends replacement cycles and reduces maintenance labor.
Robust Construction: Reinforced center tube and end caps to withstand high differential pressures.

Production Excellence

Equipped with over 20 years of industry filter field production experience, we specialize in research, development, and manufacturing of advanced equipment tailored to user requirements.

Our production range includes 6th generation knife folding machines, primary filter cotton rewinding machines, slitting and rewinding machines, and V-shaped filter paper machines.
