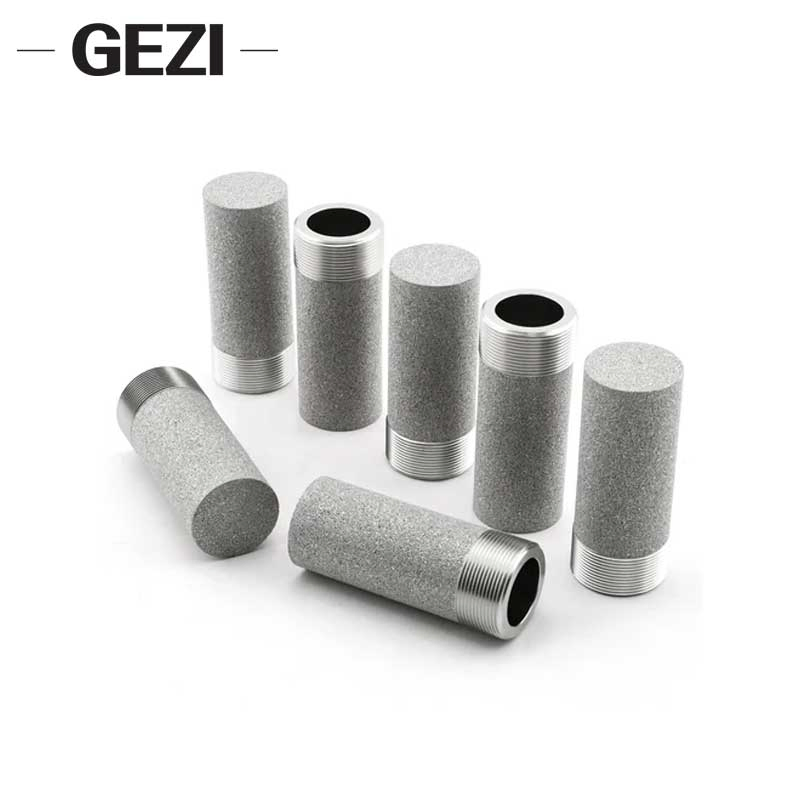

Custom Porous Stainless Steel Sintered Filters Air Filter Elements

1 / 5

Custom Porous Stainless Steel Sintered Filters Air Filter Elements

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Info.

Model NO.:Sintered Stainless Steel Filter Element

Type:Air Filter

Filter Connector:Threaded, Flanged, Clamp

Filtration Grade:Medium Filter

Pore Size:10-100 Microns

Porosity:30%-60%

Filtration Rating:1, 5, 10, 25, 50, 100 Microns

Surface Treatment:Nickel-Plated, Chrome-Plated, Polished

Filter Material:Sintered Stainless Steel Powder

Seal Material:Silicone, FKM, EPDM, etc.

Transport Package:Carton/ Wooden Box

Specification:100mm x 50mm x 50mm (Custom sizes)

Origin:China

HS Code:730799

📦

Packaging & Delivery

Package Size:15.00cm * 10.00cm * 10.00cm

Package Gross Weight:0.600kg

🔍

Product Description

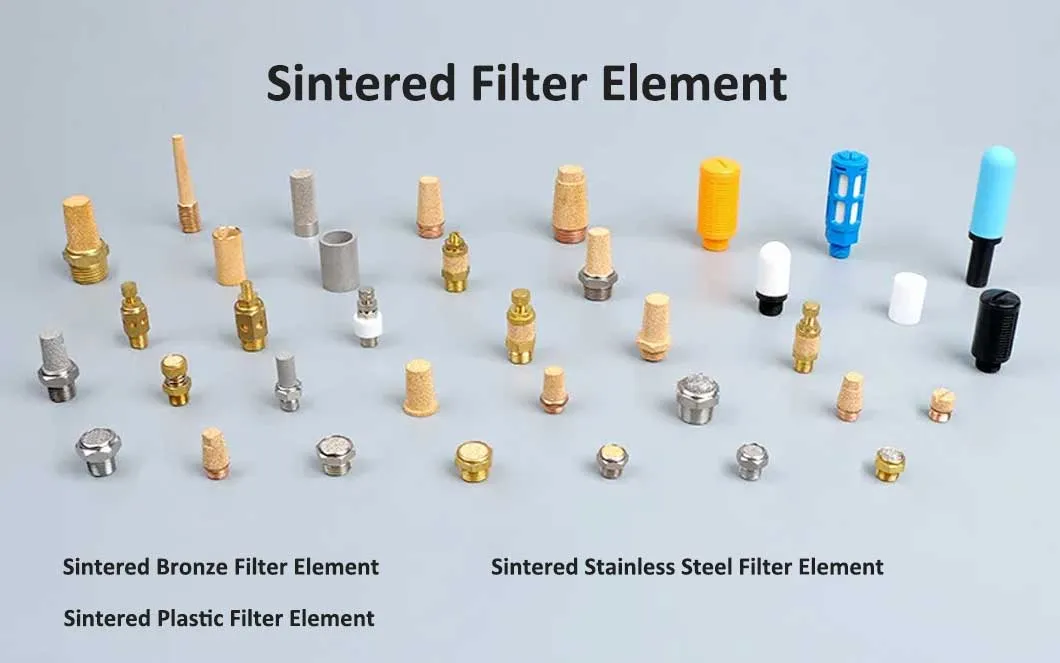

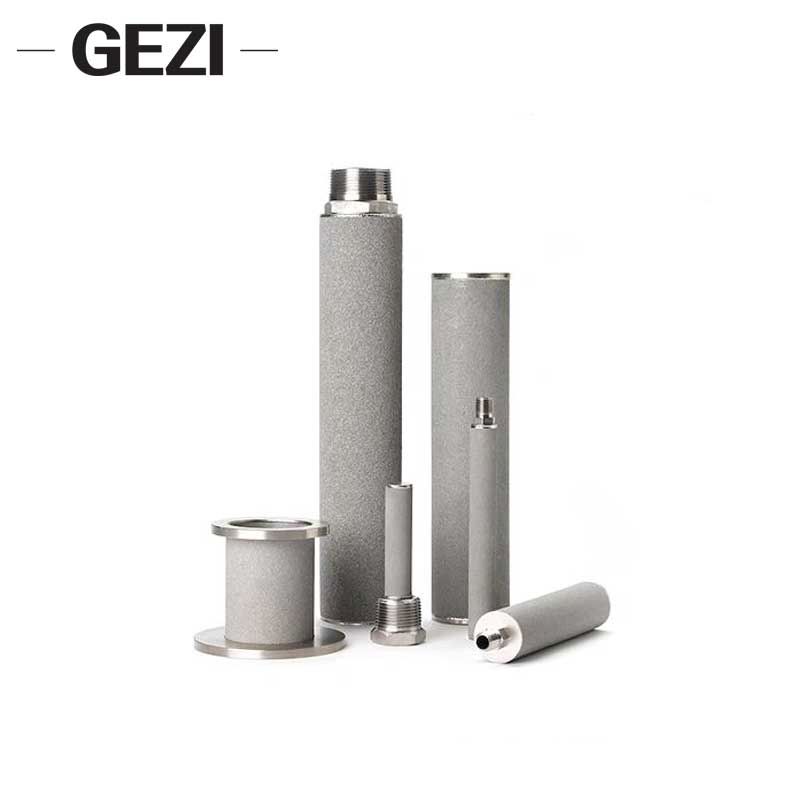

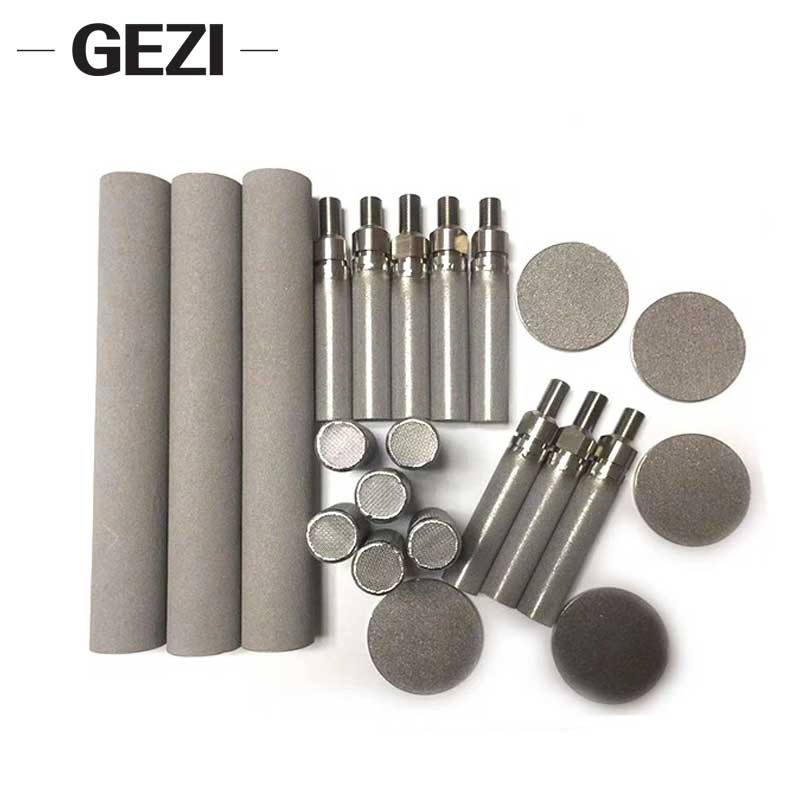

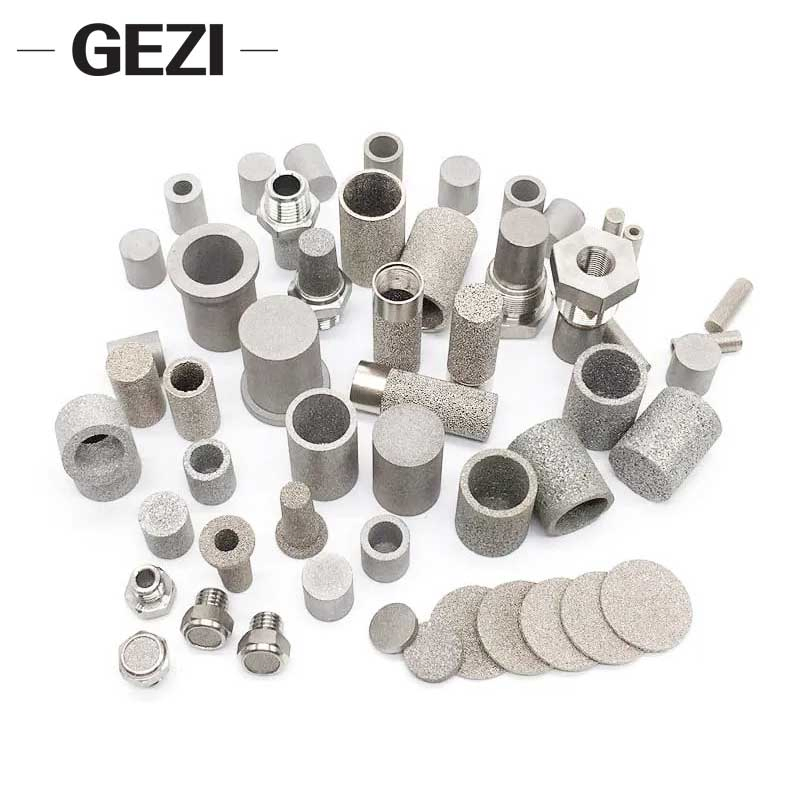

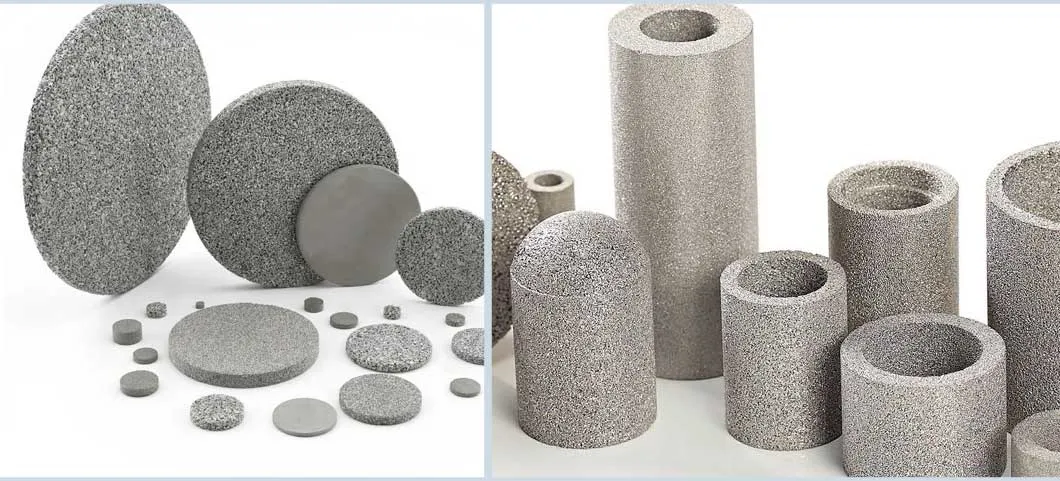

Sintered Stainless Steel Filter Element
Material	Sintered Stainless Steel Alloy
Filtration Rating	1, 5, 10, 25, 50, 100 microns
Working Temperature	-200°C to +800°C (-328°F to +1472°F)
Application Scenarios	High temp/pressure fluid (steam, hot oil), Chemical corrosive media, Pharmaceutical/Food (SIP/CIP-free), Oil/Gas separation.

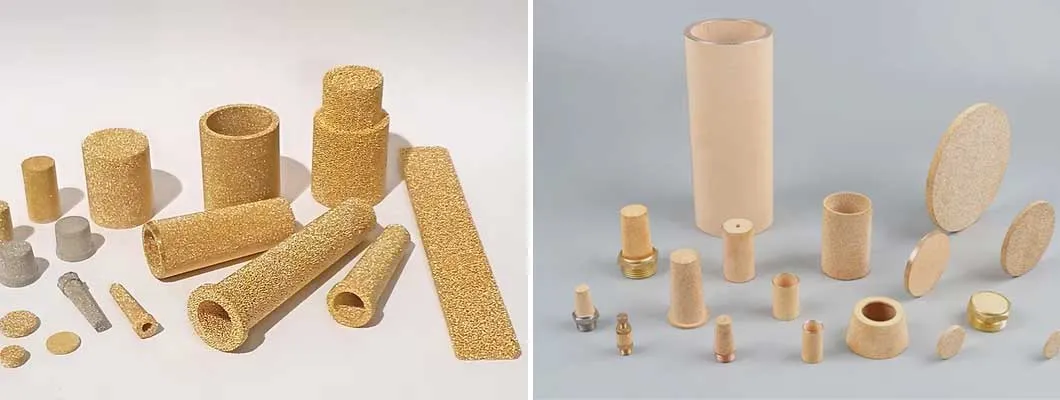

Sintered Bronze Filter Element
Material	Sintered Bronze Alloy
Pore size range	1-250µm (Customizable)
Filtration efficiency	Up to 99.98% at 5 µm
Operating Temperature	-250°C ~ 200°C (Oxidation); up to 450°C (Reduction)
Application Scenarios	Liquid/Gas filtration, Muffler/Pressure stabilizers, Compressed air purification, Instrumentation protection.

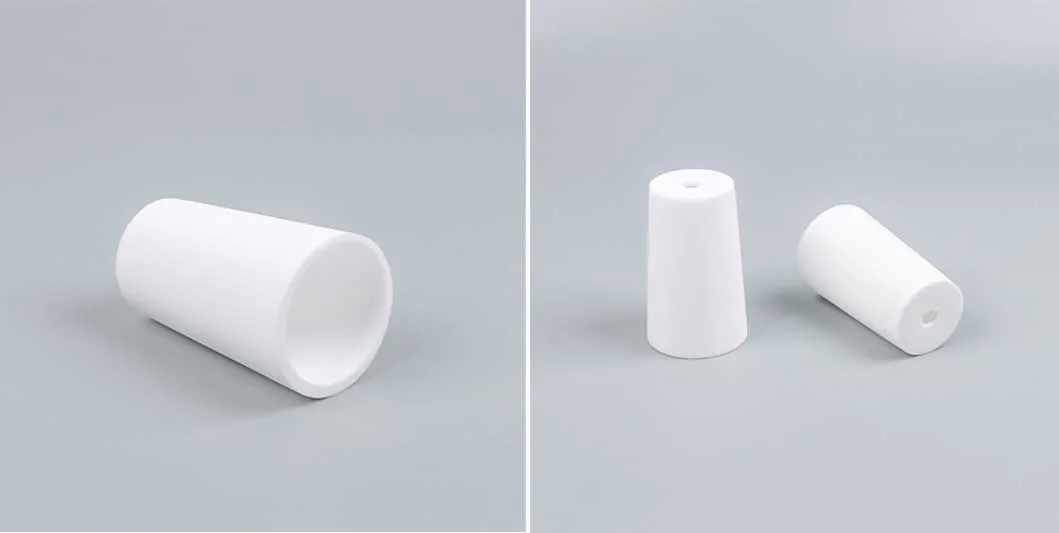

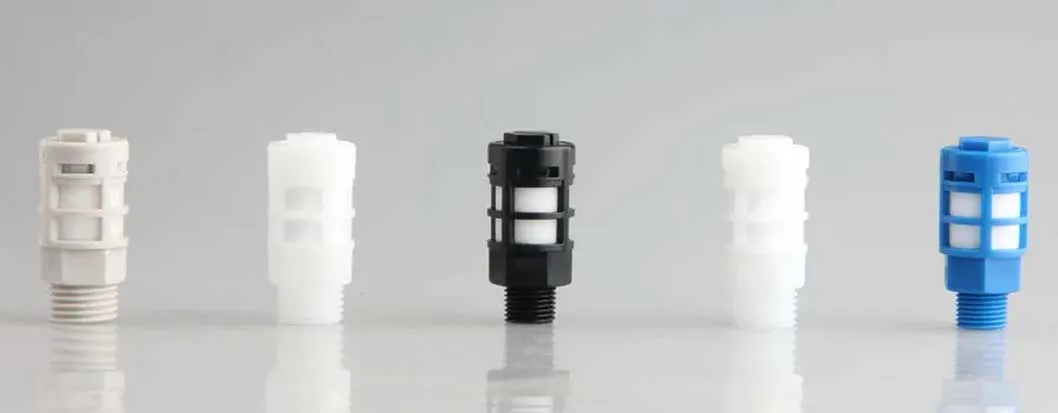

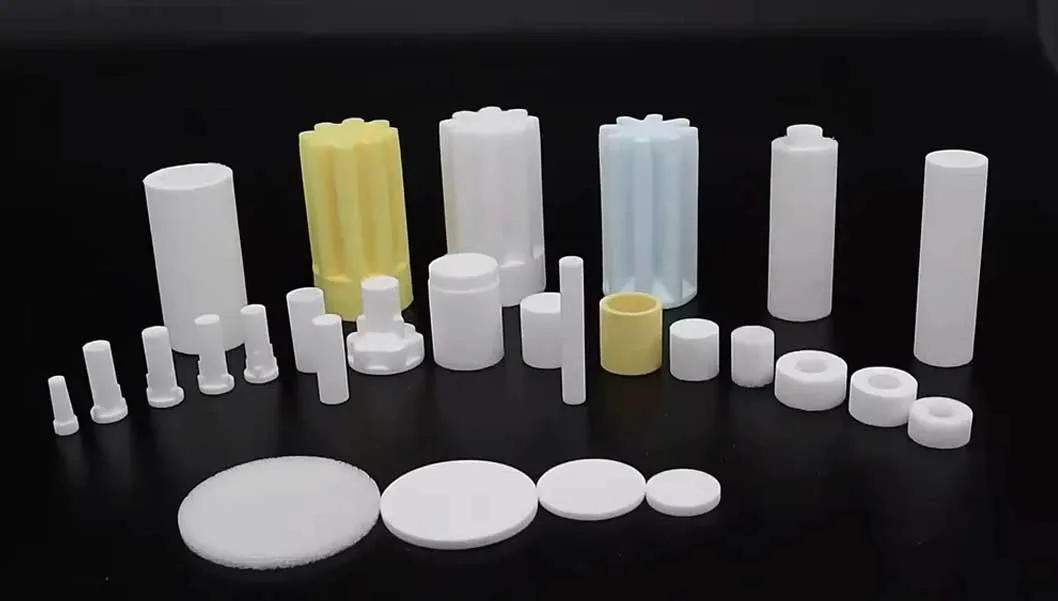

Sintered Plastic Filter Element
Material	PP, PE, PTFE, etc.
Working Temperature	-50°C to 150°C
Filtration Rating	1, 5, 10, 25, 50, 100 microns
Application Scenarios	Gas filtration, Breathable sound absorption, Medical/Lab components (syringe filters), Industrial dust-proofing.

❓

Frequently Asked Questions

What are the main materials available for these sintered filter elements?

We offer three primary materials: Sintered Stainless Steel Alloy (for high heat and corrosion), Sintered Bronze Alloy (for silencers and steady flow), and Sintered Plastics like PP, PE, and PTFE (for medical and lab applications).

What is the maximum temperature these filters can withstand?

Sintered stainless steel filter elements can operate in extreme environments ranging from -200°C to +800°C. Sintered bronze can handle up to 450°C in reduction environments.

Can I customize the dimensions and pore sizes?

Yes, we provide full customization for dimensions (standard is 100mm x 50mm x 50mm) and pore sizes typically ranging from 1 to 250 microns to meet specific industrial requirements.

Are these filters suitable for food or pharmaceutical use?

Absolutely. Our stainless steel sintered filters are designed with no shedding and are SIP/CIP-free, making them ideal for pharmaceutical, food, and electronics industries where pollution-free filtration is required.

What type of connections are supported?

Our filter elements support multiple connection types, including Threaded, Flanged, and Clamp connections, ensuring compatibility with various piping and equipment setups.

How efficient is the filtration for the bronze alloy elements?

Sintered bronze filter elements are highly efficient; for example, they can achieve a particle interception rate of up to 99.98% when the pore size is 5 µm.
