Customizable High Precision Water Treatment Pph Filter Housing

Basic Information

Model NO.

INCEF-6APRKS

Motive Force

Pressure

Style

Vertical

Performance

Efficient Filtration

Certification

CE

Filter Bag Size

7"X22"(180X560mm)

Upper Cover Style

Screw Top Cover

Main Material

PPH

Protection Switch

Micro Switch Type

Transport Package

Carton

Origin

China

HS Code

8421219990

Product Description

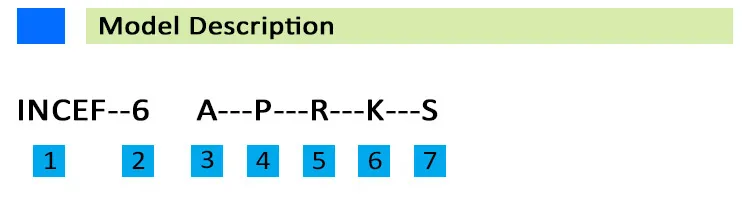

Model Selection Guide
1. Model Series	F: One-piece filter housing
2. Filter Bag Size	1: φ180x430mm, 2: φ180x810mm, 4: φ105x380mm, 5: φ150x510mm, 6: φ180x560mm
3. Upper Cover Style	A: Screw top cover, B: Lifting ring gland, AX: Screw top cover with union-type inlet/outlet
4. Main Material	P: PPH, V: PVDF
5. Upper Cover Joint	D: Internal PT1/2, R: External PT1/2 with pressure gauge, E: Exhaust valve
6. Protection Switch	K: Install protection switch (micro switch type)
7. Special Code	S: SUS31 metal accessories, T: Titanium accessories

Model	In-outlet (mm)	Filter Bag (mm)	Area (m²)	Capacity/Weight (l/kg)	Max Traffic (m³/h)	Temp (ºC)	Max Pressure (Mpa)
INCEF-1A-P	50x50	180x430	0.25	20.3/15.3	20	90	0.8
INCEF-2A-P	65x65	180x810	0.5	32/24.2	40	90	0.8
INCEF-4A-P	40x40	105x380	0.12	6.5/5.9	12	90	0.8
INCEF-5A-P	50x50	150x510	0.3	2.8/10.8	22	90	0.8

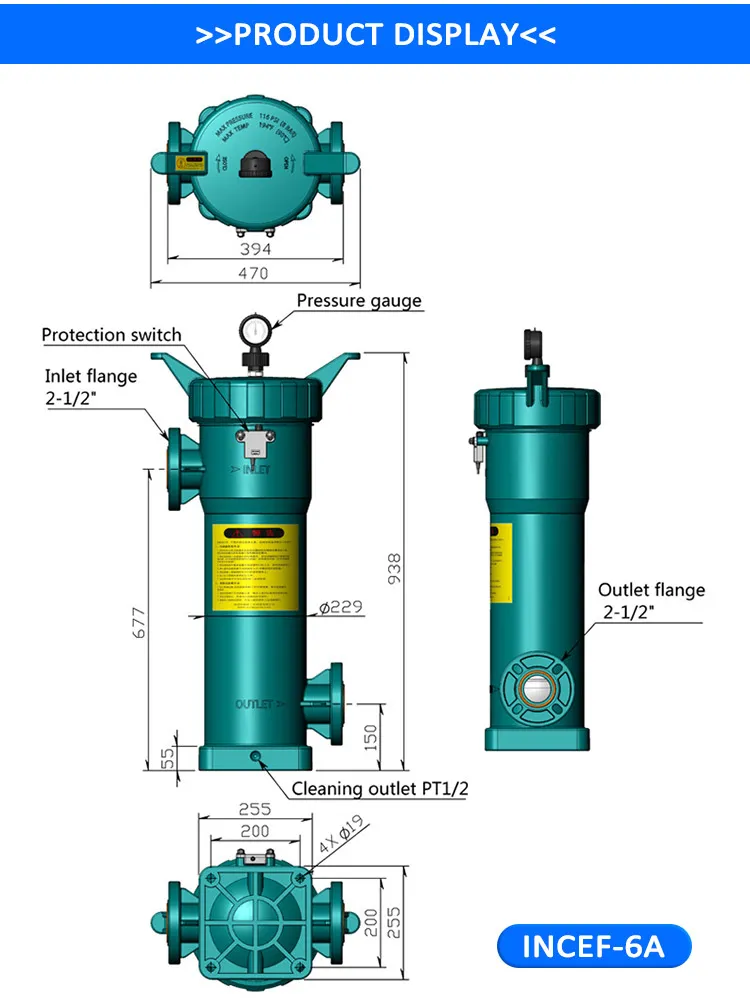

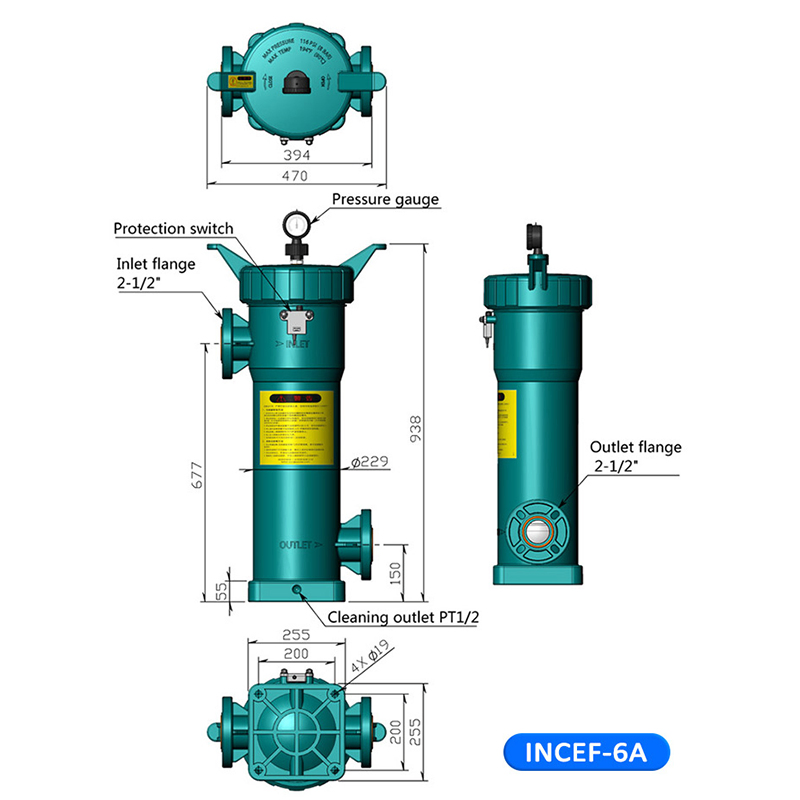

INCEF-6A-P	65x65	180x560	0.35	24/18	25	90	0.8

Core Features

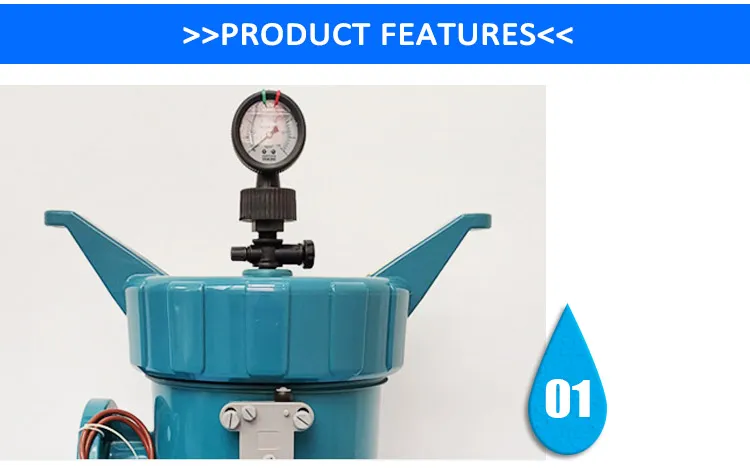

1 Standard 6# filter bag (φ180*560MM) support. Can be modified into a 20"*5 cotton core filter.

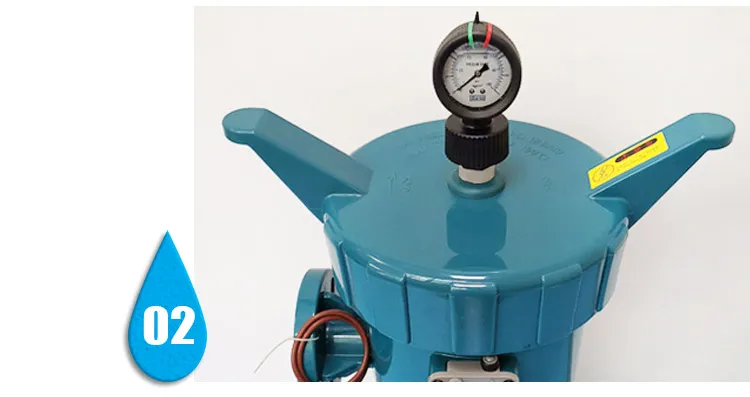

2 Manufactured to international standards. Compatible with EATON, FSI, and domestic standard bags.

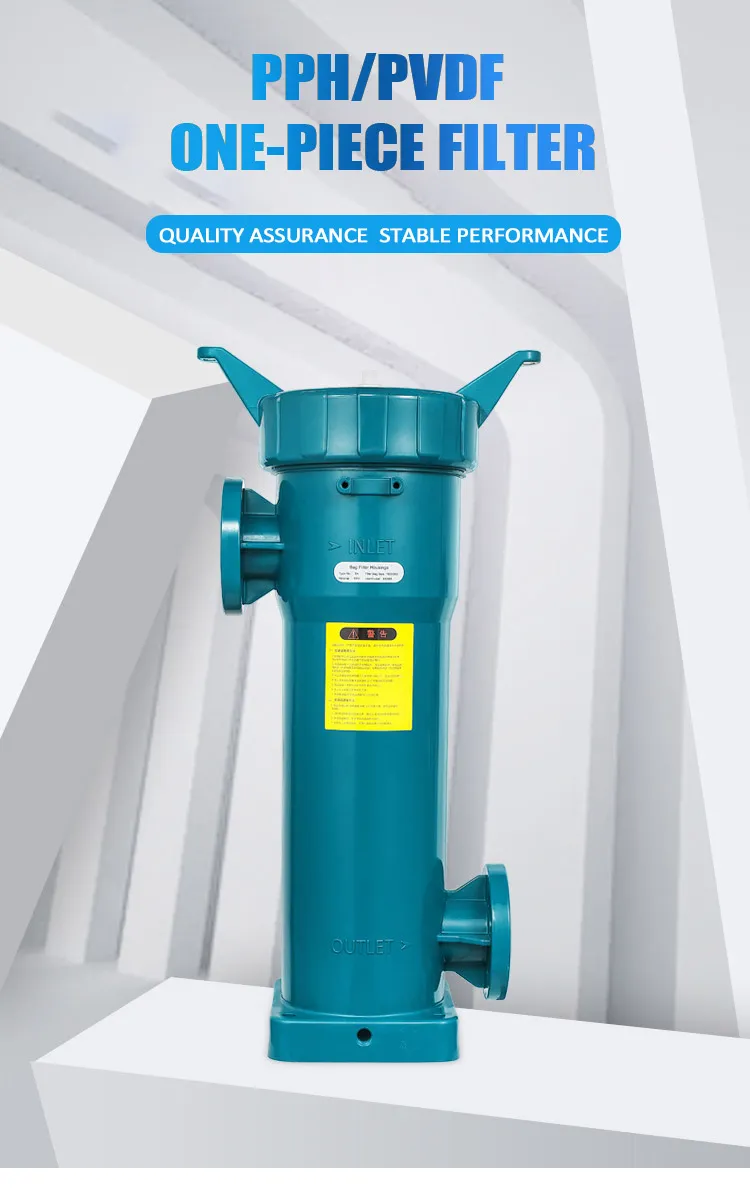

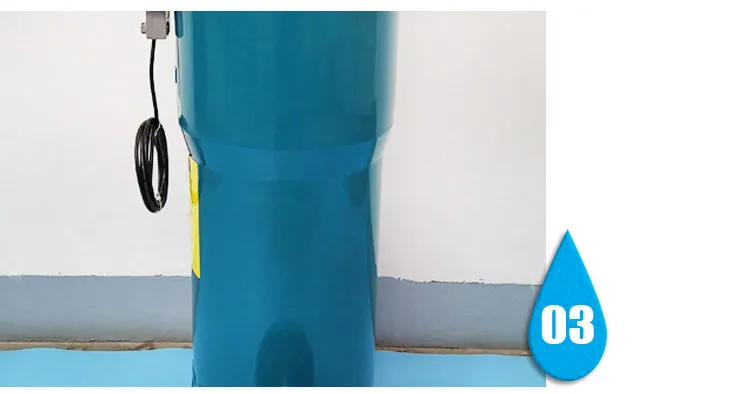

3 One-piece solid structure with no welding points. Polished barrel wall prevents chemical crystallization and simplifies cleaning.

4 Lightweight imported PPH raw material. Excellent corrosion resistance. PVDF and ETFE materials also available.

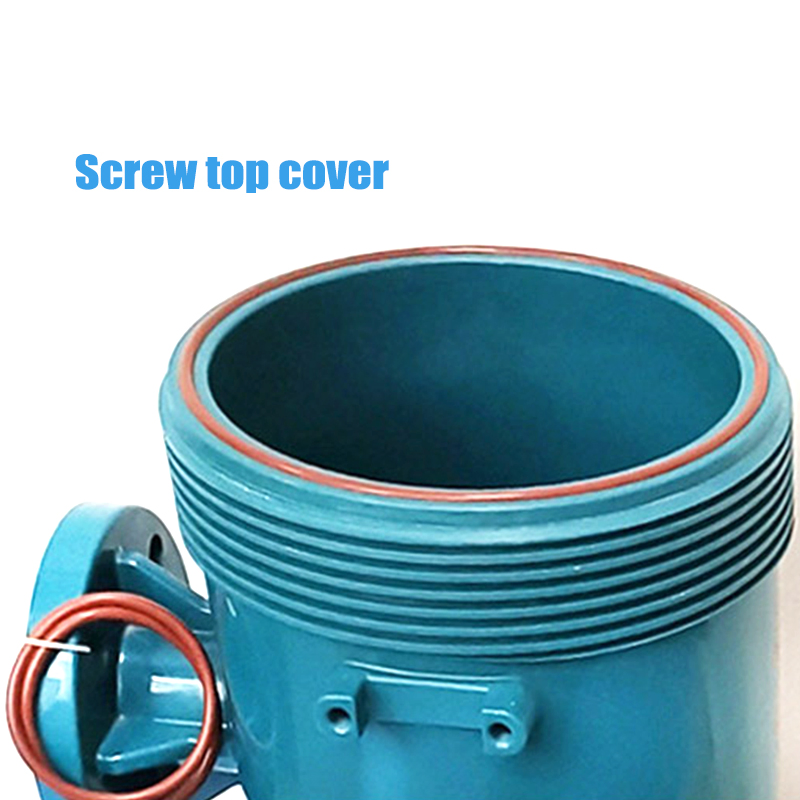

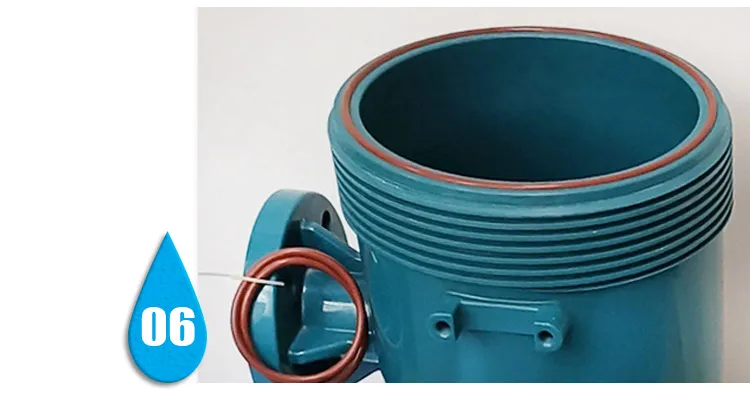

5 Screw-in upper cover design allows opening and closing without tools, ensuring rapid bag replacement.

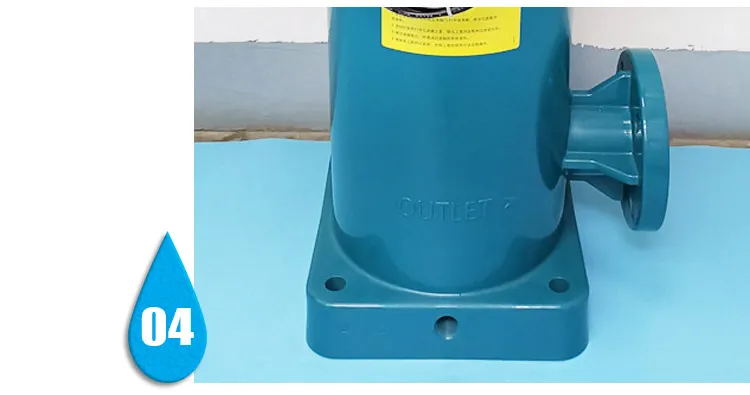

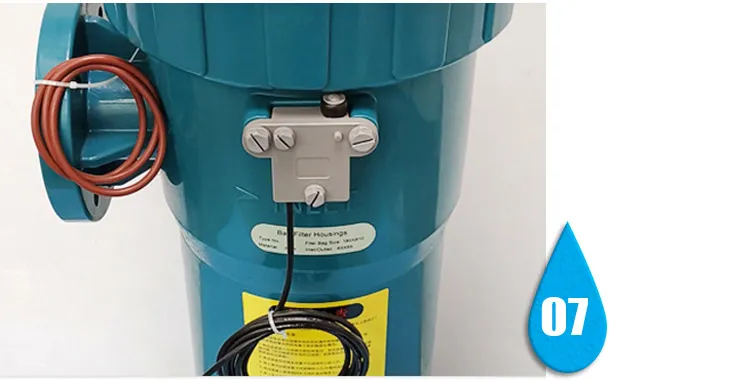

6 Fixed base for sensor installation. Automatically detects if the cover is locked to prevent pump startup hazards.

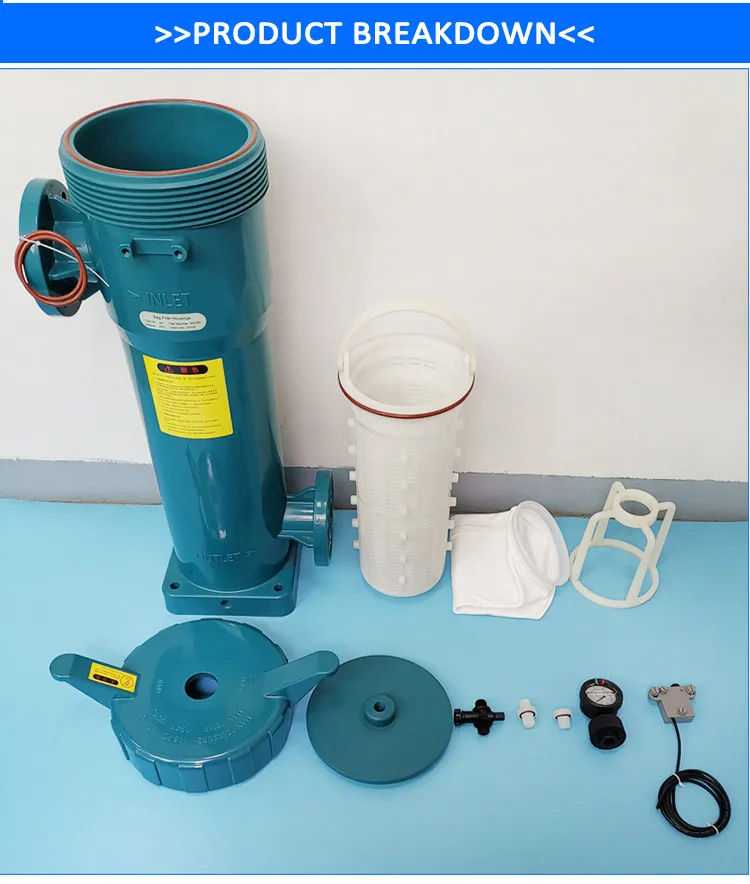

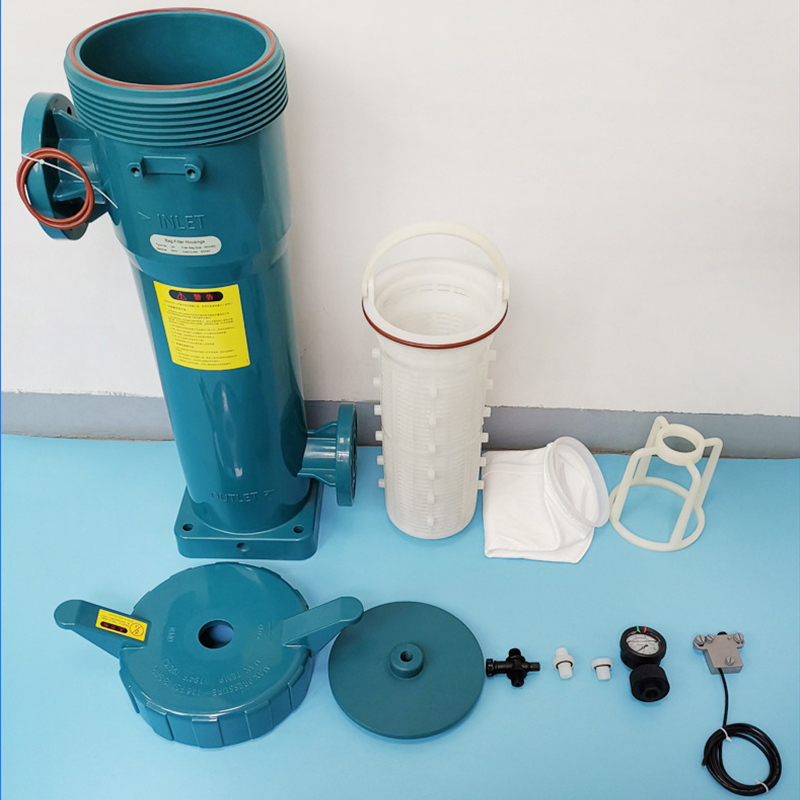

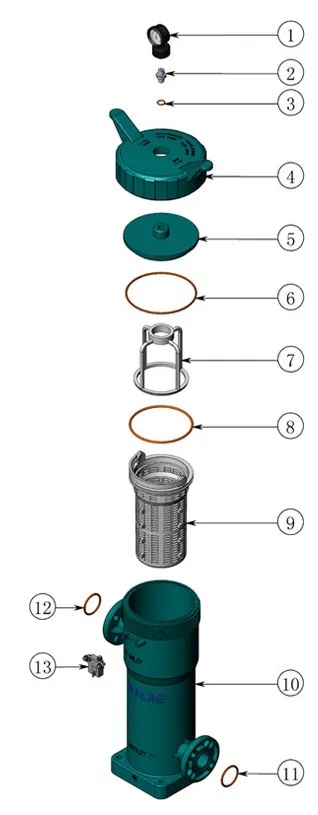

Components & Operation

Part No.	Component	Main Material
1-2	Pressure Gauge & Joint	PP
3, 6, 8	O-rings	FKM
4-5	Cover Parts	PPH
9-10	Basket & Filter Body	PPH
13	Protection Switch	Optional

IT IS STRICTLY PROHIBITED TO OPEN THE UPPER COVER WHILE THE EQUIPMENT IS RUNNING.
FAILURE TO COMPLY MAY CAUSE SERIOUS CASUALTIES.

Industrial Applications

This high-precision filter system is suitable for a wide range of industries including: Urban sewage treatment, copper/gold powder recovery, petrochemicals, bioengineering, pharmaceuticals, electronics, electroplating, industrial wastewater treatment, seawater desalination, printing, dyeing, and papermaking.

Frequently Asked Questions

Q1: What are the main advantages of PPH material for filter housings?

PPH (Polypropylene Homopolymer) offers superior corrosion resistance against most industrial chemicals, high temperature tolerance (up to 90ºC), and is lightweight yet durable. It also includes UV-resistant materials for outdoor longevity.

Q2: Can this filter housing be used with international filter bag brands?

Yes, our filter housings are designed and manufactured in accordance with international standards and are fully compatible with filter bags from renowned brands like EATON and FSI.

Q3: How does the "one-piece design" benefit my operations?

The one-piece molded structure eliminates welding points, which are common failure areas. This completely solves leakage problems and provides a solid, reliable structure for high-pressure applications.

Q4: Do I need special tools to replace the filter bags?

No tools are required. The screw-in upper cover design allows for manual opening and closing, making the replacement of filter bags quick and easy, reducing maintenance downtime.

Q5: What safety features are included in the housing design?

The unit features a fixed base for a micro-switch sensor. Once installed, it can automatically detect if the upper cover is securely locked, preventing the pump from starting in an unsafe configuration.

Q6: What is the filtration range and pressure limit?

The housing is suitable for a wide filtration precision range from 0.1 to 800 microns. It operates effectively within a pressure range of up to 116 PSI (8 BAR) and temperatures up to 176°F (80°C).
