Basic Information
Model NO.:Multi bag filter
Motive Force:Pressure
Style:Vertical
Performance:Efficient Filtration
Certification:CE, GS, RoHS
Tank Material:304/316L Stainless Steel
Design Pressure:150 Psi (Standard)
Flow Capacity:100-5,000+ Gpm
Bag Sizes:#1, #2, #3, #4
Accuracy:1 - 800 Microns
Surface:Mirror Polish / Sand Blasting
HS Code:8421299090

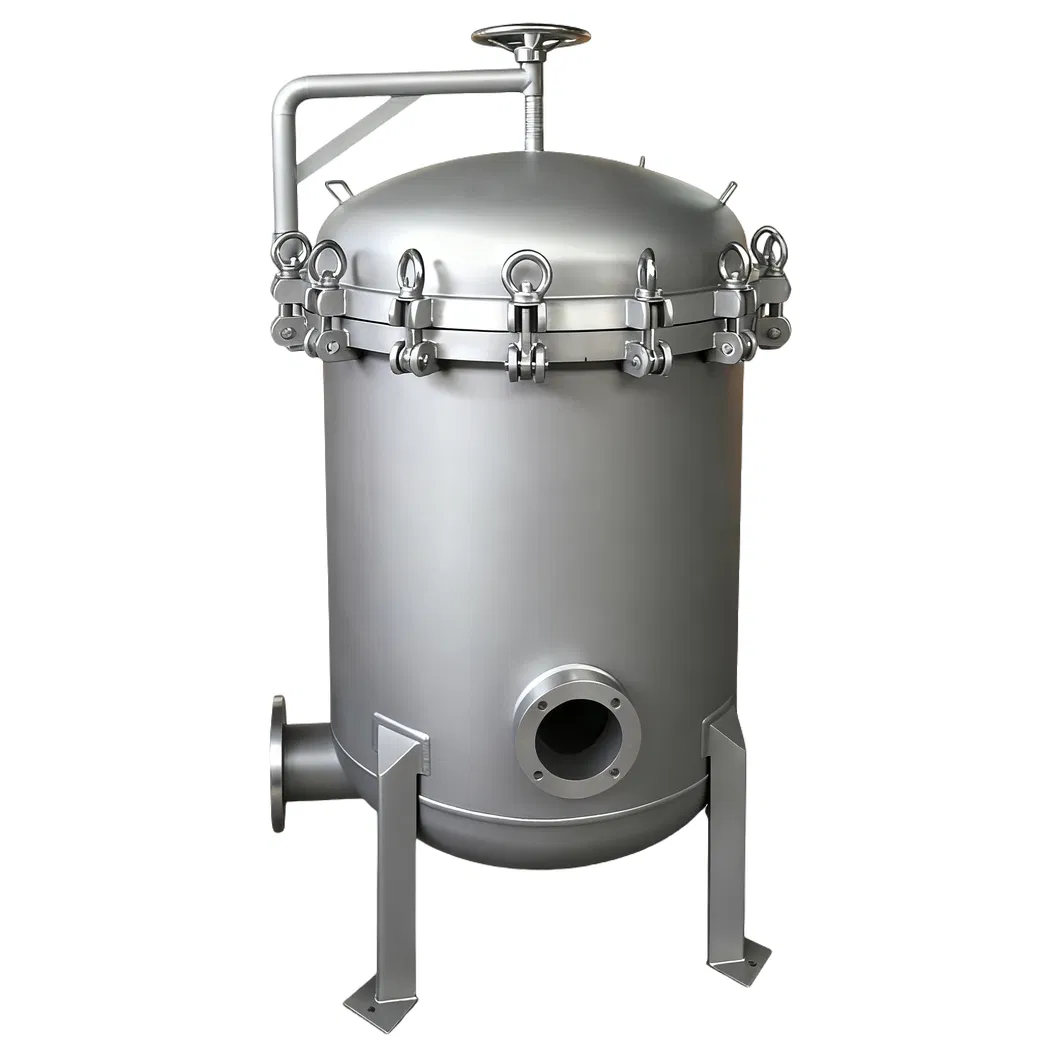

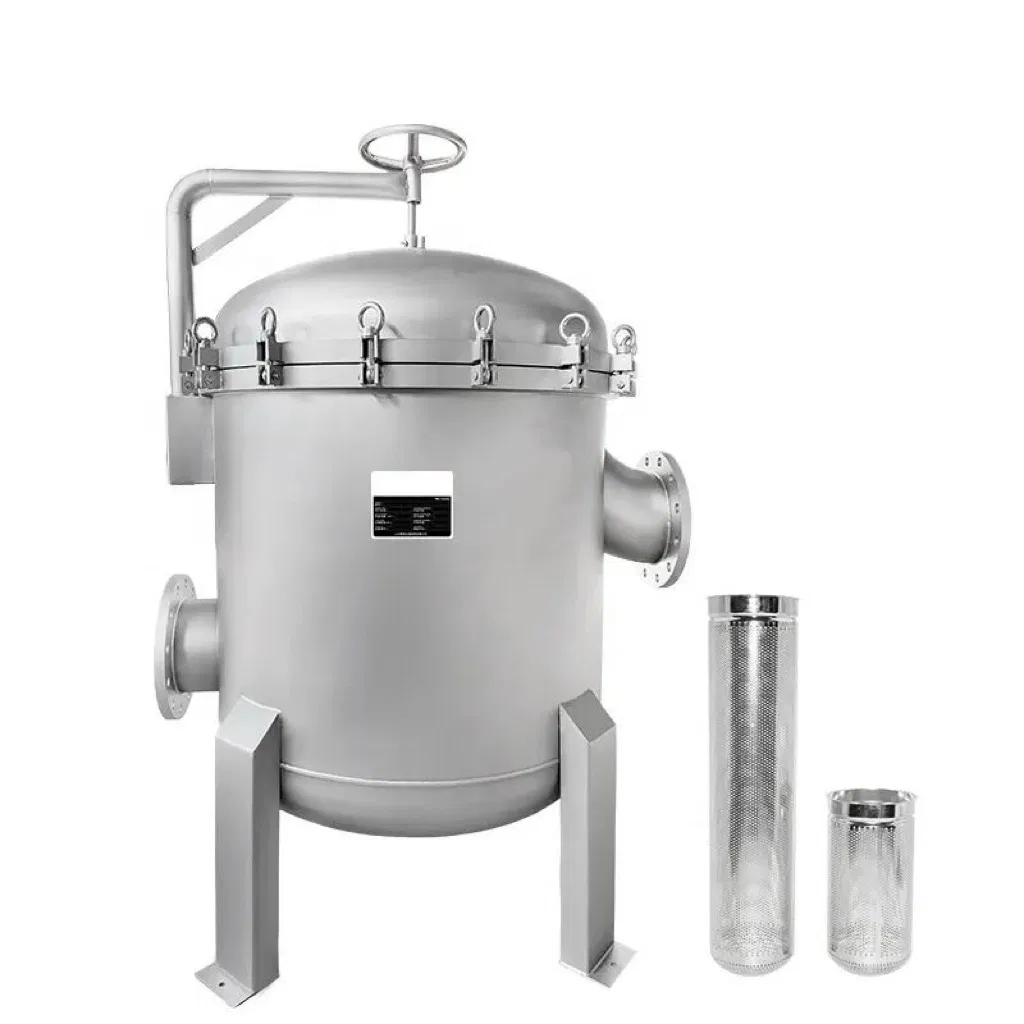

High-Volume Filtration with Maximum Efficiency

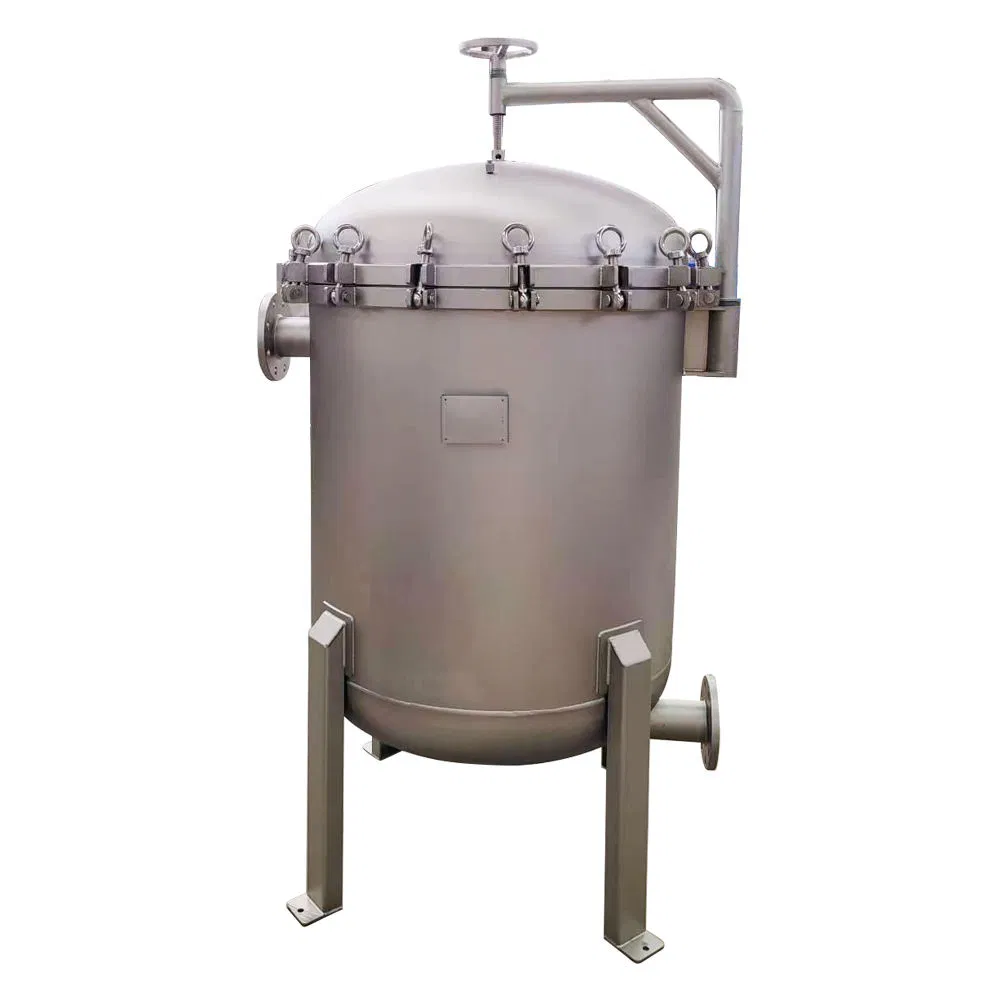

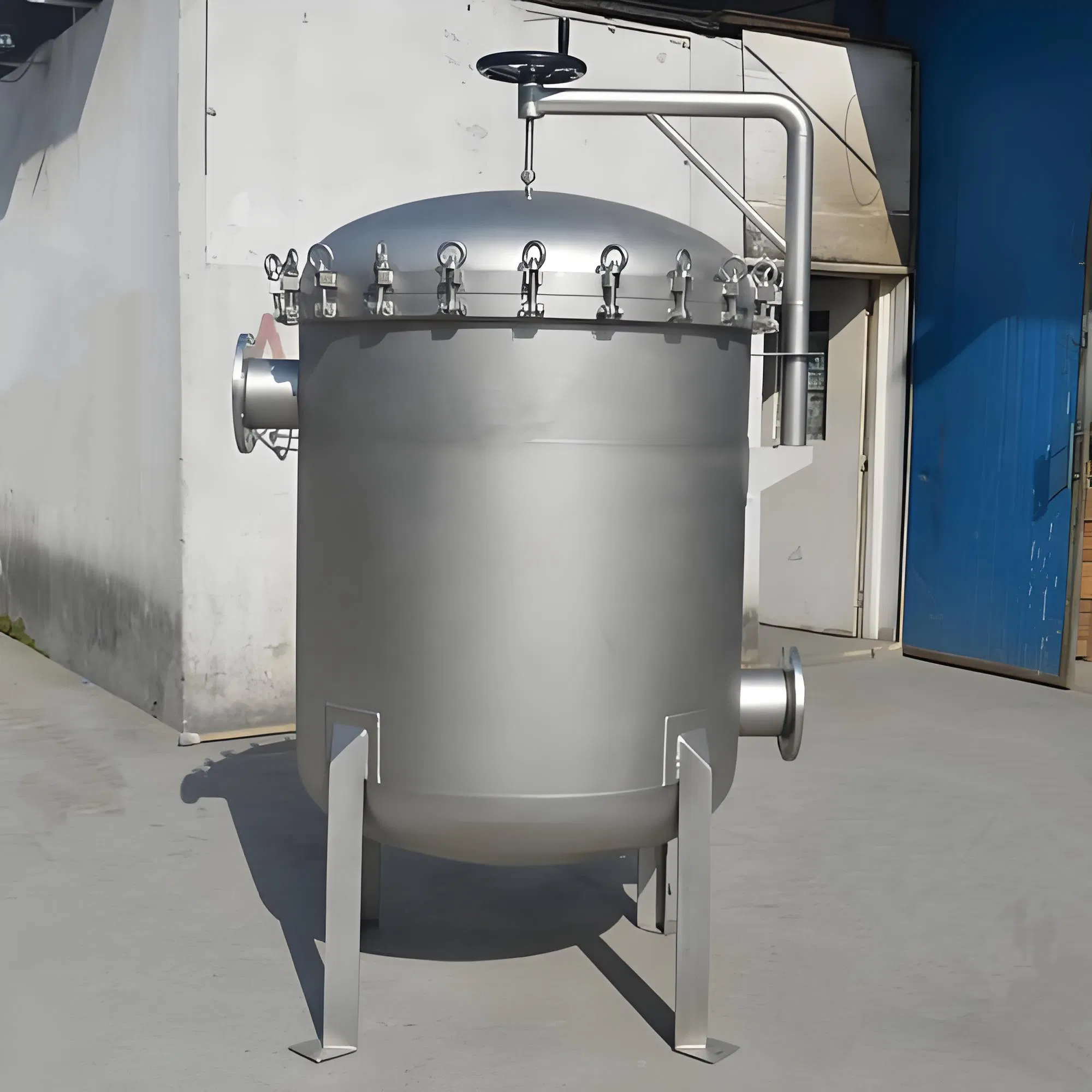

Discover the pinnacle of industrial filtration with our Stainless Steel Multi-Bag Filter System, masterfully crafted for applications demanding exceptional flow capacity, extended service longevity, and superior filtration prowess. This innovative system ensures remarkable dirt retention capacity while maintaining minimal pressure drop.
Advanced Multi-Chamber Technology
- Multi-Bag Configuration: Accommodates 2 to over 24 filter bags within a single vessel, offering filtration areas from 10 to beyond 200 square feet.
- Parallel Flow Distribution: Patented inlet diffuser system guarantees uniform flow distribution, preventing early clogging.
- Modular Scalability: Configure systems in parallel or series to match flow rate demands up to 5,000+ GPM.
- Precision Filtration: Supporting filtration from 1 to 800 microns with polypropylene, nylon, and composite media.
- Optimized Hydraulic Design: CFD-modeled internal geometry reduces turbulence, minimizing pressure drop.
System Design Advantages
1. Operational Efficiency: All bags function in parallel for continuous high flow. Quick-change design with swing-bolt clamps facilitates rapid replacement.
2. Maintenance Optimization: Positive-lock basket design prevents bag collapse; bottom drain valves allow easy sediment removal.
3. Application Versatility: Ideal for Chemical Processing, Water Treatment, Food & Beverage, and Metalworking.
| Material |
SUS304 / SUS316L |
| Inlet/Outlet |
Customized Connections |
| Surface Treatment |
Mirror Polish / Sand Blasting / Electropolished |
Frequently Asked Questions
Q1: What materials are available for the multi-bag filter housing?
A1: Our housings are primarily constructed from high-quality 304 or 316L stainless steel, providing excellent corrosion resistance and durability for various industrial environments.
Q2: What is the maximum flow rate this system can handle?
A2: Depending on the configuration and number of bags (from 2 to 24+), our systems can handle flow rates ranging from 100 GPM to over 5,000 GPM.
Q3: What filtration micron ratings are supported?
A3: The system supports a wide range of filtration accuracy, including 1, 5, 10, 25, 50, 100, 200, 400, and 800 microns, depending on the filter bag media selected.
Q4: Does the system meet industrial pressure standards?
A4: Yes, our standard design is rated for 150 Psi (10 Bar), and we offer custom configurations that can handle up to 300 Psi to meet specific project requirements.
Q5: How easy is it to replace the filter bags?

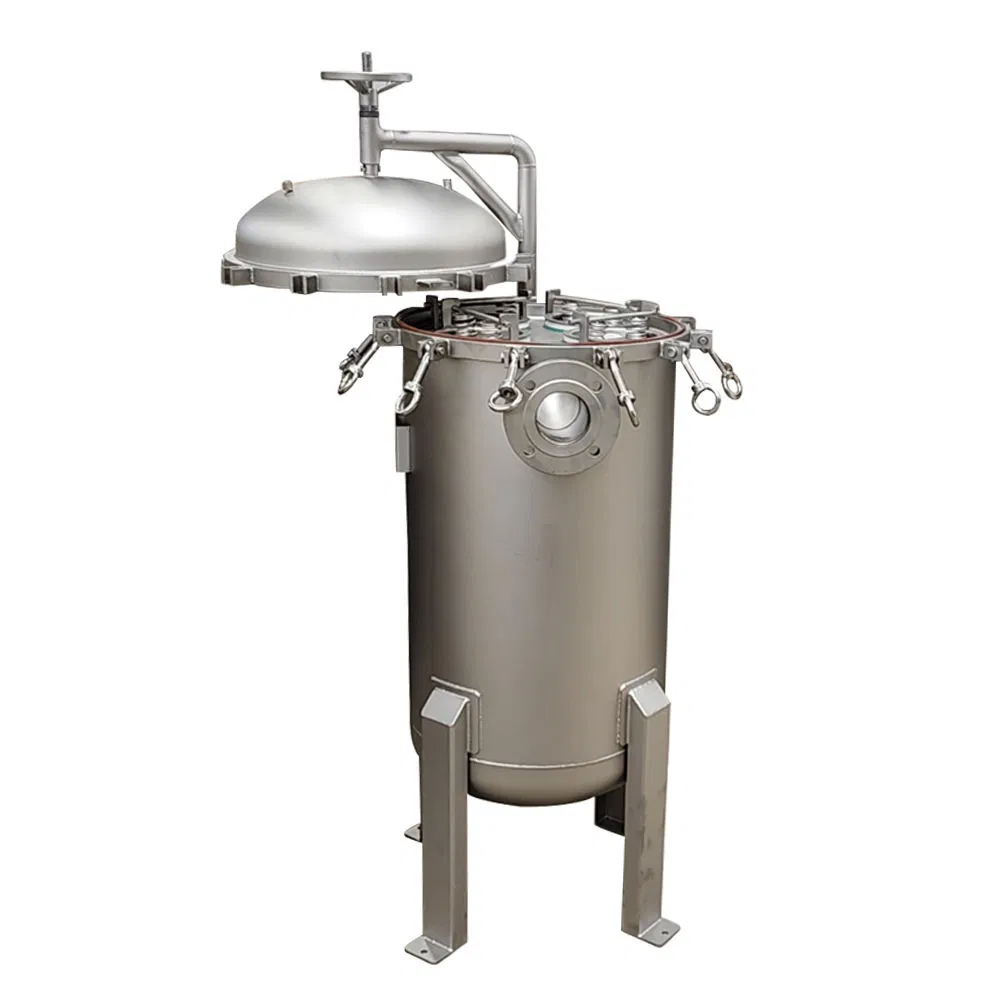

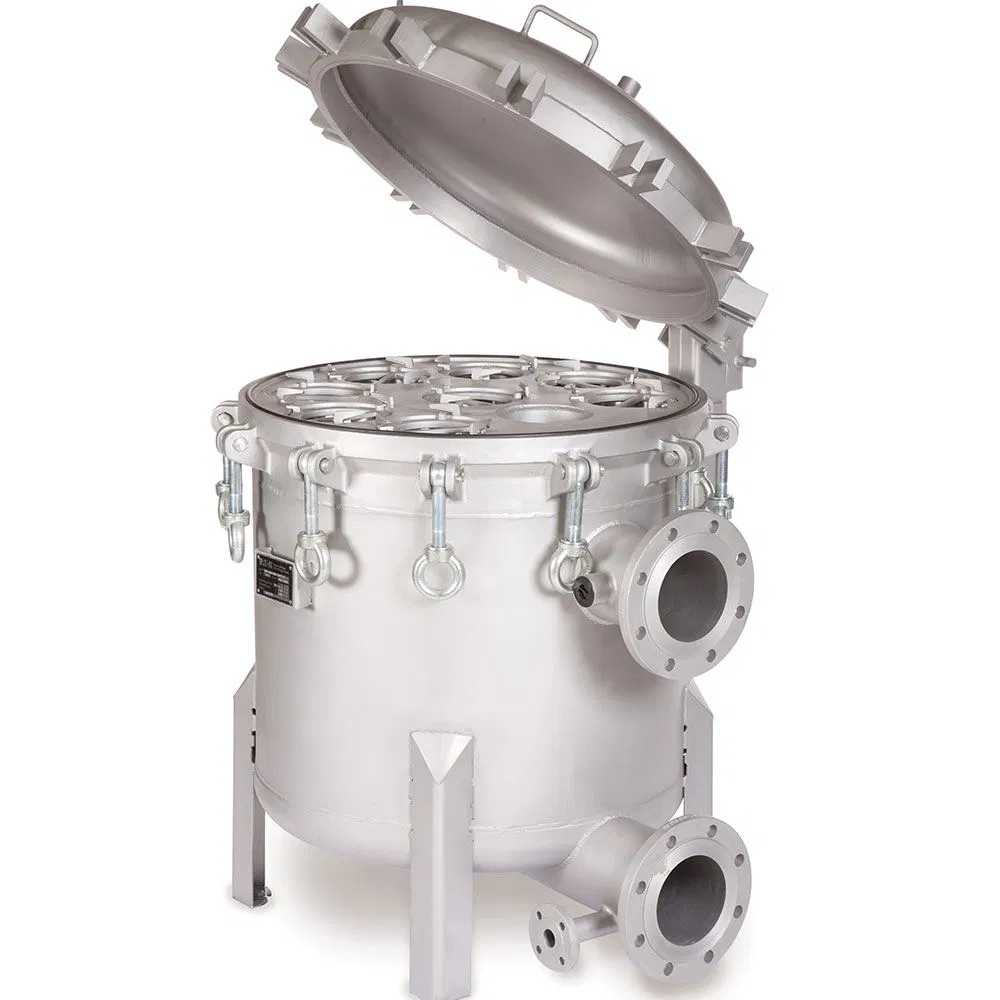

A5: Our system features a quick-change top-access design with swing-bolt or quick-release clamps, allowing for rapid bag replacement without the need for specialized tools.
Q6: Are the units suitable for food and beverage applications?
A6: Yes, we offer models that comply with sanitary standards including FDA and cGMP, featuring mirror-polished surfaces and appropriate sealing materials like Silicone or EPDM.
