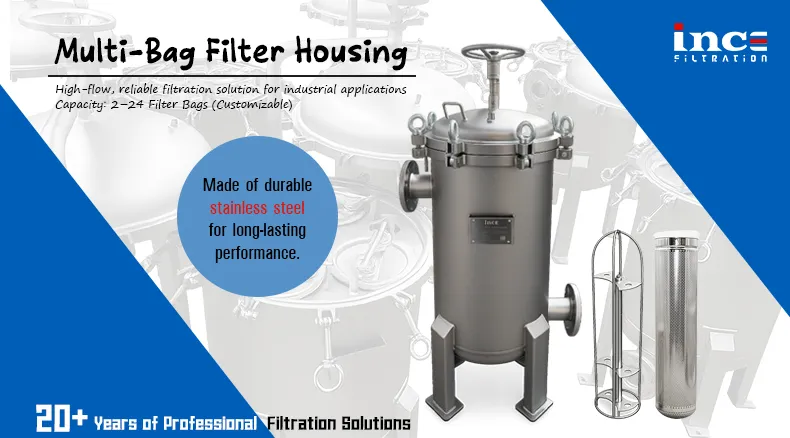

Customizable Multi-Bag Filter Housing with Single or Multi-Size Bag Compatibility

1 / 5

Customizable Multi-Bag Filter Housing with Single or Multi-Size Bag Compatibility

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

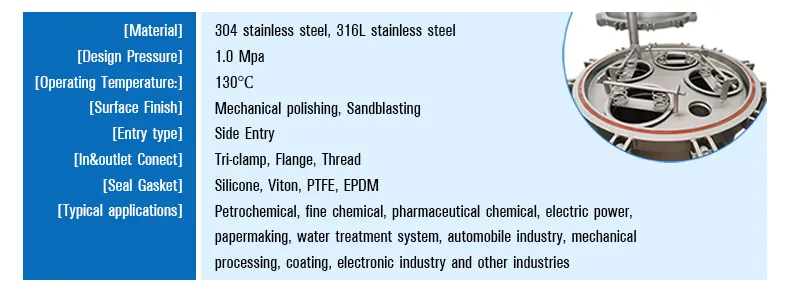

Basic Information

Model NO.

INCE-MB-02

Motive Force

Pressure

Style

Bag Filter Housing

Performance

Efficient Filtration

Product Material

304 / 316L Stainless Steel

Design Pressure

1.0 MPa

Design Temp.

5-80℃

Filter Element

Filter Bag 1#, 2#, 3#, 4#, 5#

Inlet/Outlet

Thread, Flange, Tri-Clamp

Process

Mechanical Polishing, Sandblasting

🔍

Product Description

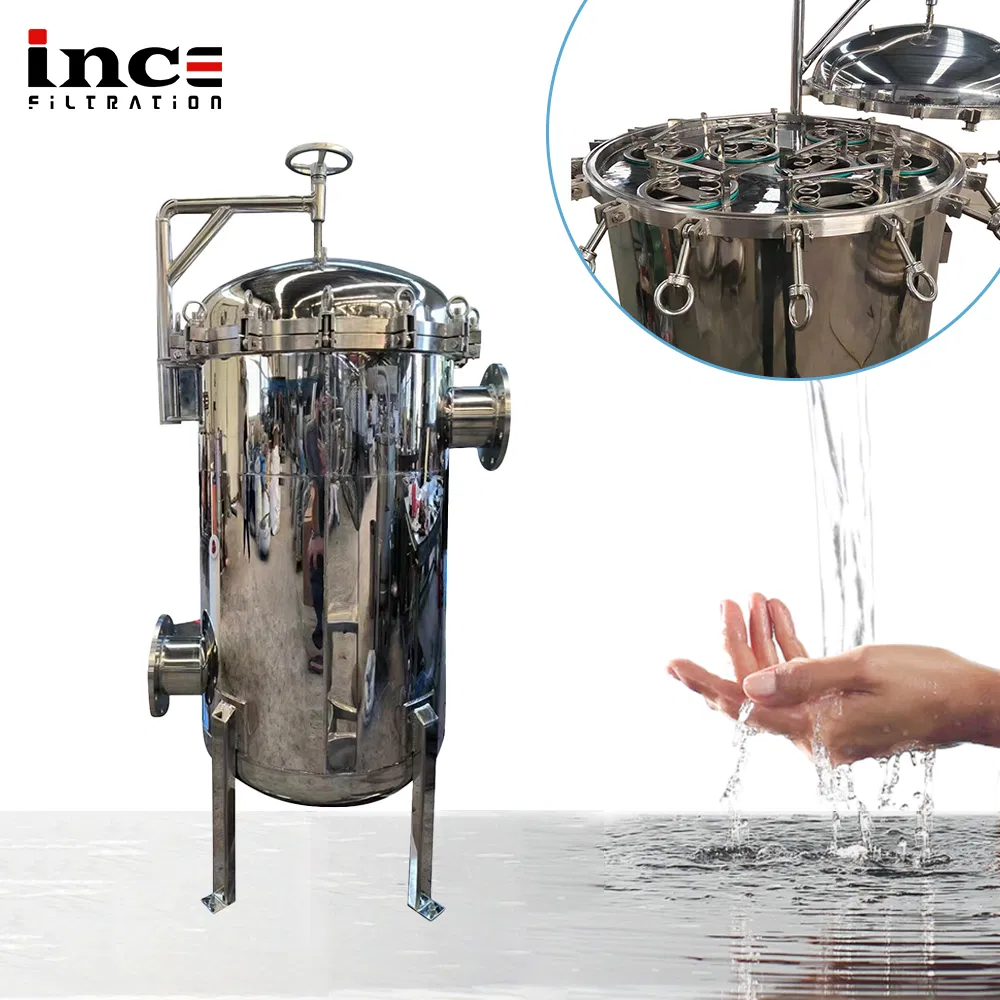

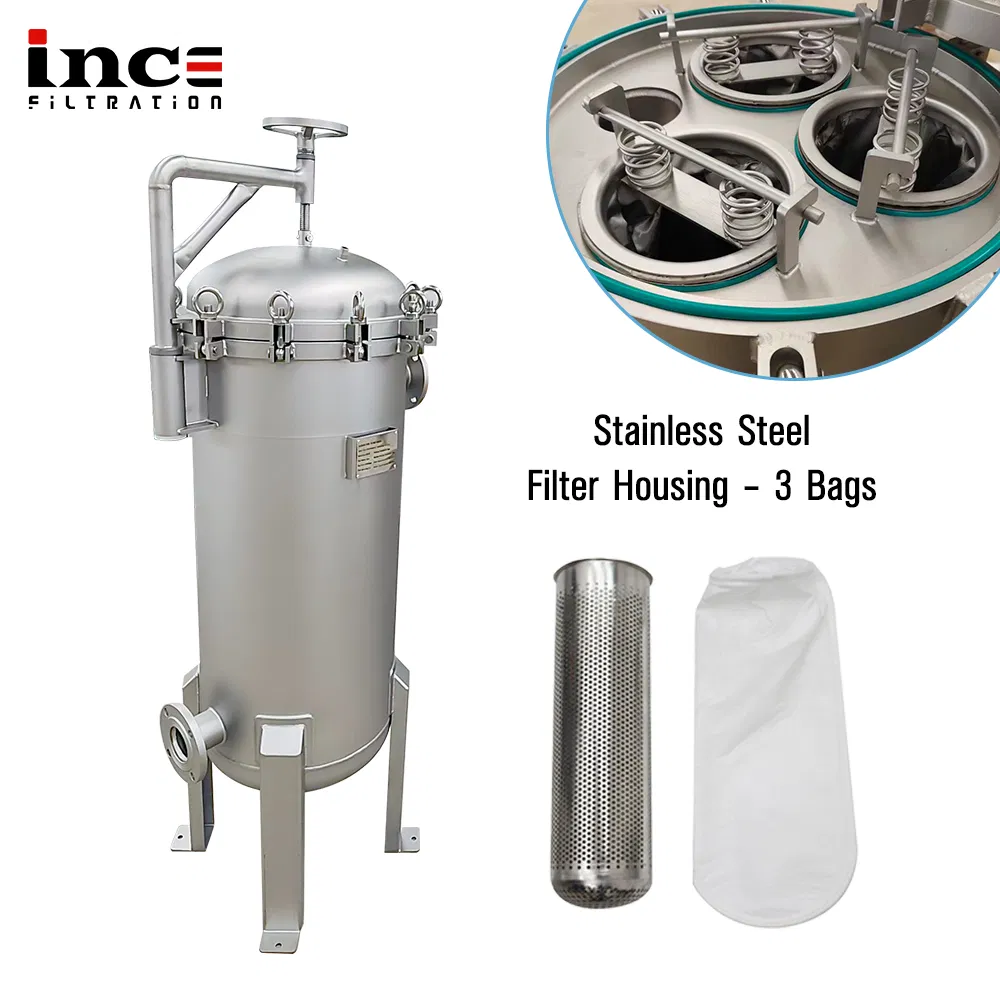

The filter housing features an optional davit arm for quick and easy opening of the cover. Made of stable stainless steel, it offers excellent corrosion resistance against a wide range of liquids. Its reliable and robust construction is suitable for high-flow filtration systems, while the compact housing design minimizes liquid loss. High-strength M16-M24 lifting rings guarantee tight sealing and safe operation.

Available in 2-24 bag configurations, with customized designs supported to meet specific application requirements.

📊

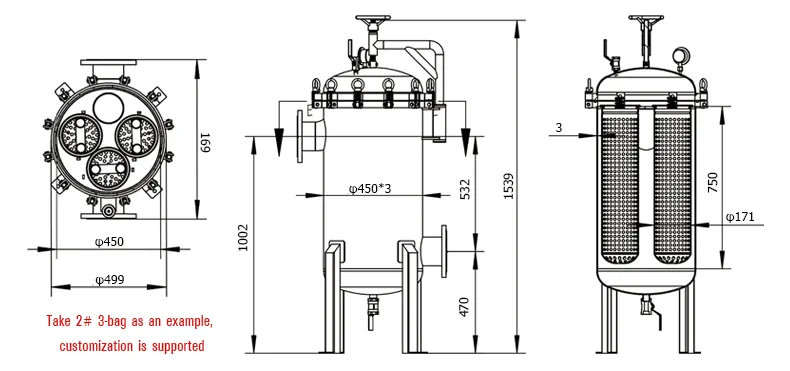

Technical Parameters

Device Model	Barrel Diameter	Inlet/Outlet	Flow Rate	Thickness
INCE-MB-02	φ400	DN80 Flange	60T/H	3.0mm
INCE-MB-03	φ450	DN100 Flange	90T/H	3.0mm
INCE-MB-04	Φ500	DN125 Flange	120T/H	3.0mm
INCE-MB-06	Φ600	DN150 Flange	180T/H	3.0mm
INCE-MB-08	Φ800	DN200 Flange	240T/H	3.0mm
INCE-MB-10	Φ900	DN200 Flange	300T/H	4.0mm
INCE-MB-20	Φ1200	DN250 Flange	600T/H	4.0mm
INCE-MB-24	Φ1300	DN250 Flange	720T/H	4.0mm

Bags	Material	Bag Model	Outlet Types	Size	Sealing	Surface
02-24 bags	S=304SS L=316L	01-05#	Clamp / Flange Thread	DN80-DN250	Silicone FKM / EPDM	Polishing Sandblasting

⚙️

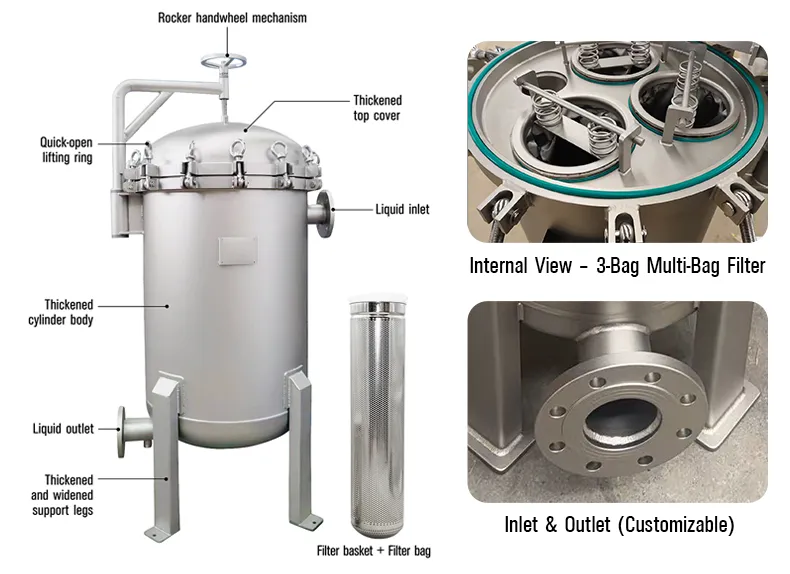

Structure & Details

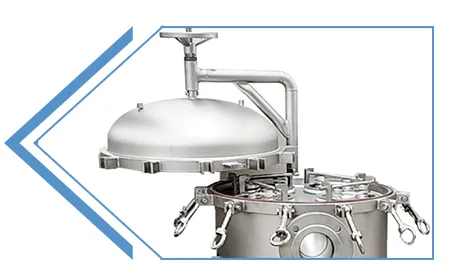

The swing arm design supports the cover weight, allowing easy and safe opening by one person, reducing maintenance time.

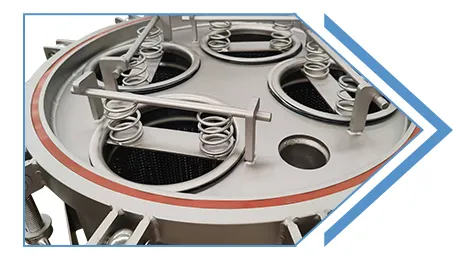

Spring-loaded design applies constant pressure to hold filter bags firmly, ensuring reliable sealing performance.

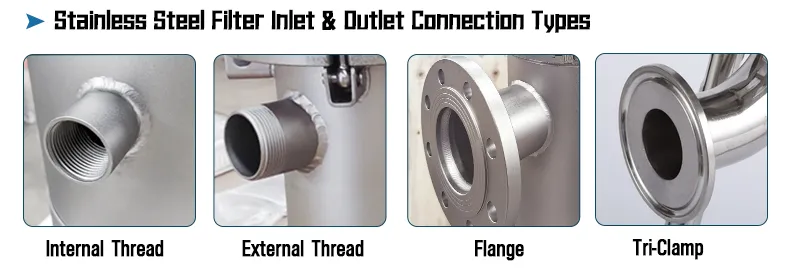

■ Internal/External Thread: Compact structure, easy installation for low pressure.
■ Flange Connection: High strength and reliable sealing for high flow conditions.
■ Tri-Clamp: Quick assembly, high hygiene level for food/pharmaceutical industries.

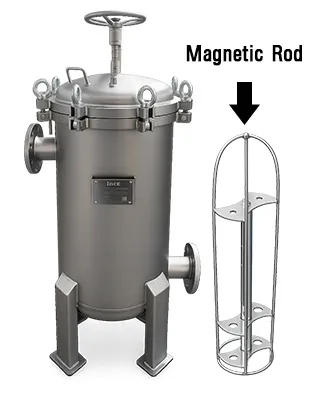

Magnetic Rod Functions:

1. Removal of ferromagnetic impurities.
2. Improved overall filtration efficiency with dual mechanisms.
3. Protection of downstream pumps, valves, and nozzles.

✨

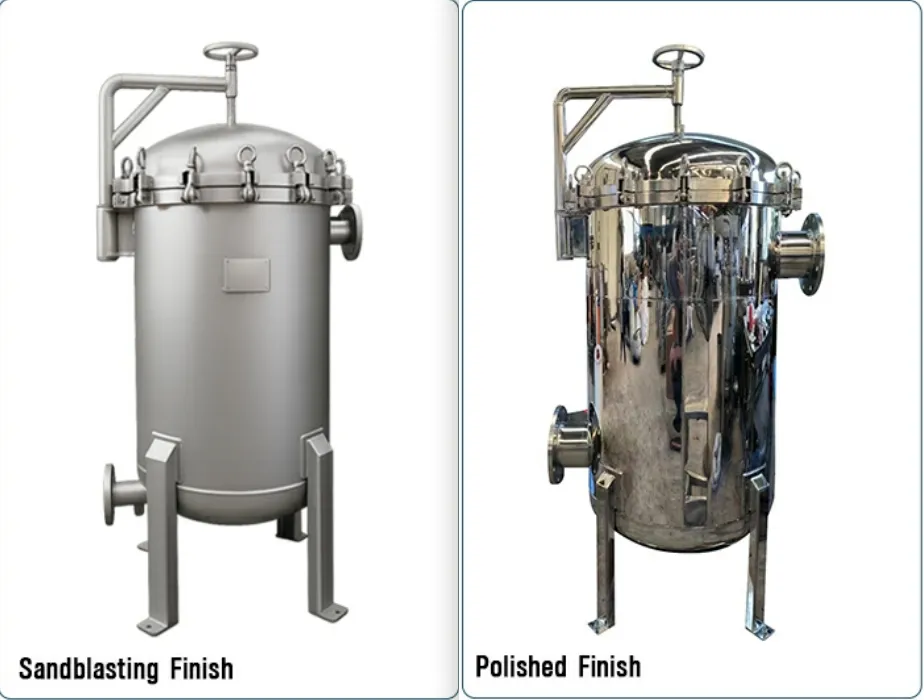

Available Surface Processes

I. Polished Finish

Smooth mirror finish, easy to clean, meets hygiene standards for food and biotechnology.

II. Sandblasting Finish

Uniform matte finish, industrial look, removes oxide scale, ideal for heavy industrial and outdoor environments.

🏭

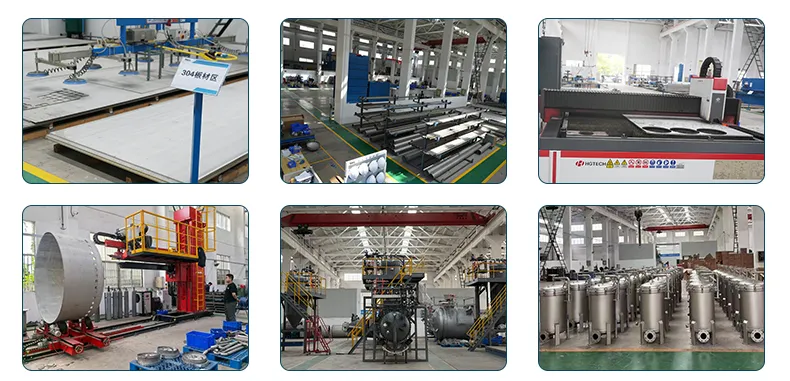

Our Factory & Manufacturing

Our manufacturer specializes in the development and export of industrial filtration products including stainless steel filters, cartridges, and bags. We provide customized solutions with various structures and surface finishes to meet diverse industrial requirements.

📦

Packaging & Transportation

We offer flexible shipping options including sea freight, air freight, and international express. Export wooden crates are used for standard packaging to ensure safe delivery.

❓

Frequently Asked Questions (FAQ)

Q1: What materials are available for the multi-bag filter housing? A1: We provide high-quality 304 Stainless Steel and 316L Stainless Steel options to ensure corrosion resistance and durability.

Q2: How many filter bags can the housing accommodate? A2: Our standard configurations range from 2 to 24 bags, and we can provide customized designs for specific capacity needs.

Q3: What types of connections can I choose for my system? A3: We offer several connection types including Internal Thread, External Thread, Flange, and Tri-Clamp to suit different industry standards.

Q4: What is the maximum design pressure for these filters? A4: The standard design pressure is 1.0 MPa, suitable for a wide range of industrial pressure filtration applications.

Q5: What is the benefit of the swing arm design? A5: The swing arm supports the heavy cover, allowing a single operator to open it safely and quickly for bag replacement, minimizing downtime.

Q6: Which industries are these filter housings suitable for? A6: They are widely used in water treatment, chemical processing, food and beverage, pharmaceutical, and environmental protection industries.
