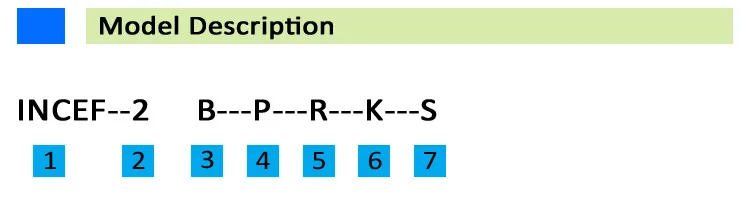

| Model Selection Guide | |
|---|---|
| 1. Model Type | F: One-piece filter housing |
| 2. Filter Bag Size | 1: φ7"x17", 2: φ7"x32", 4: φ4"x15", 5: φ6"x20", 6: φ7"x22" |
| 3. Upper Cover Style | A: Screw top cover, B: Lifting ring gland, AX: Union-type inlet/outlet |
| 4. Main Material | P: PPH, V: PVDF |
| 5. Upper Cover Joint | D: Internal tooth PT1/2, R: External tooth connector, E: Exhaust valve |
| 6. Protection Switch | K: Install protection switch (micro switch type) |
| Model | In-outlet (mm) | Filter Area (m²) | Capacity (l/kg) | Max Traffic (m³/h) | Temp (ºC) | Max Pressure (Mpa) |
|---|---|---|---|---|---|---|
| INCEF-1A-P | 50x50 | 0.25 | 20.3 / 15.3 | 20 | 90 | 0.8 |
| INCEF-2A-P | 65x65 | 0.5 | 32 / 24.2 | 40 | 90 | 0.8 |

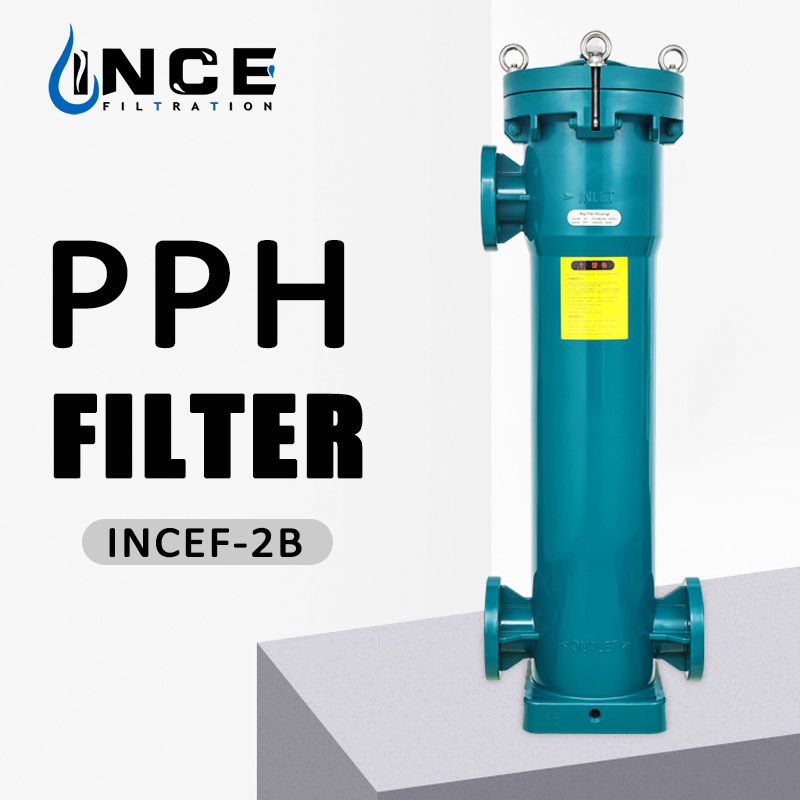

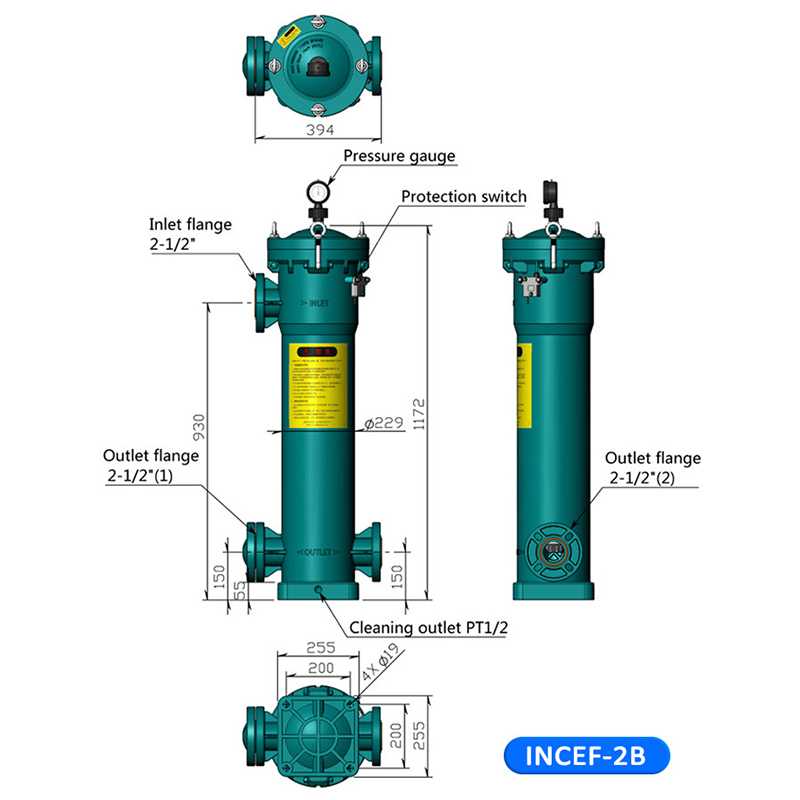

| INCEF-2B-P/V | 65x65 | 0.5 | 32 / 24.2 | 40 | 90 | 0.8 |
| INCEF-4A-P | 40x40 | 0.12 | 6.5 / 5.9 | 12 | 90 | 0.8 |
| INCEF-6A-P | 65x65 | 0.35 | 24 / 18 | 25 | 90 | 0.8 |
Widely used in urban sewage treatment, copper/gold recovery, chemical petroleum, bioengineering, pharmaceuticals, electronics, electroplating, seawater desalination, papermaking, and more.
