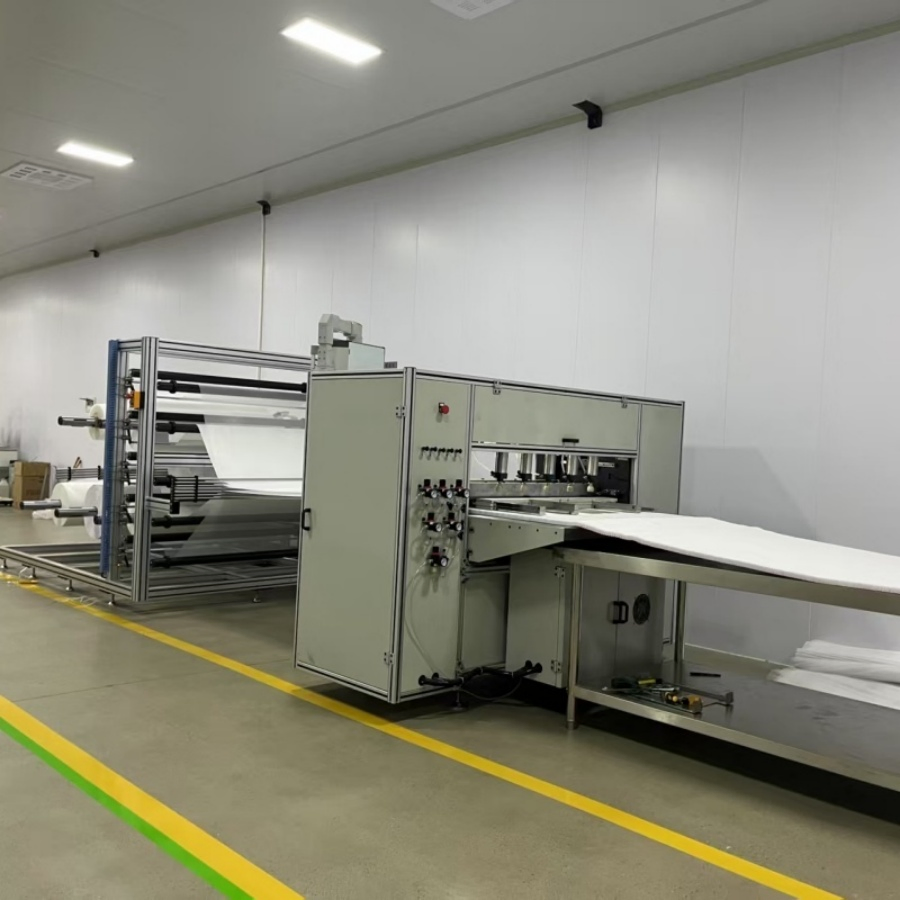

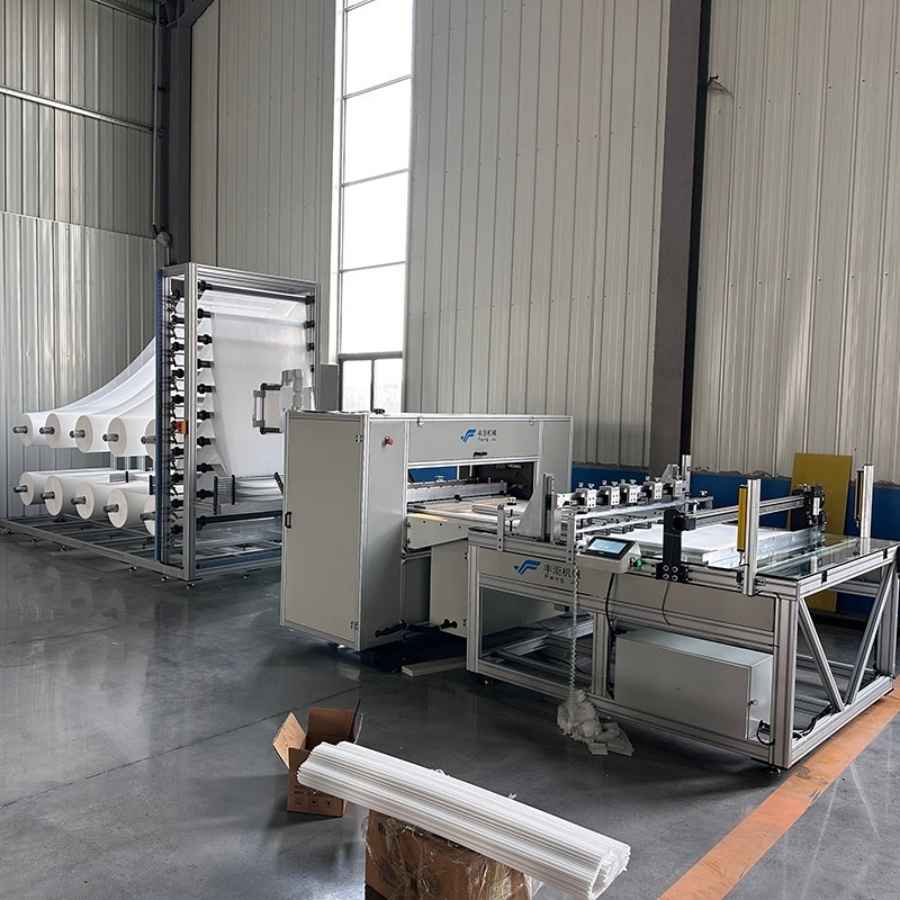

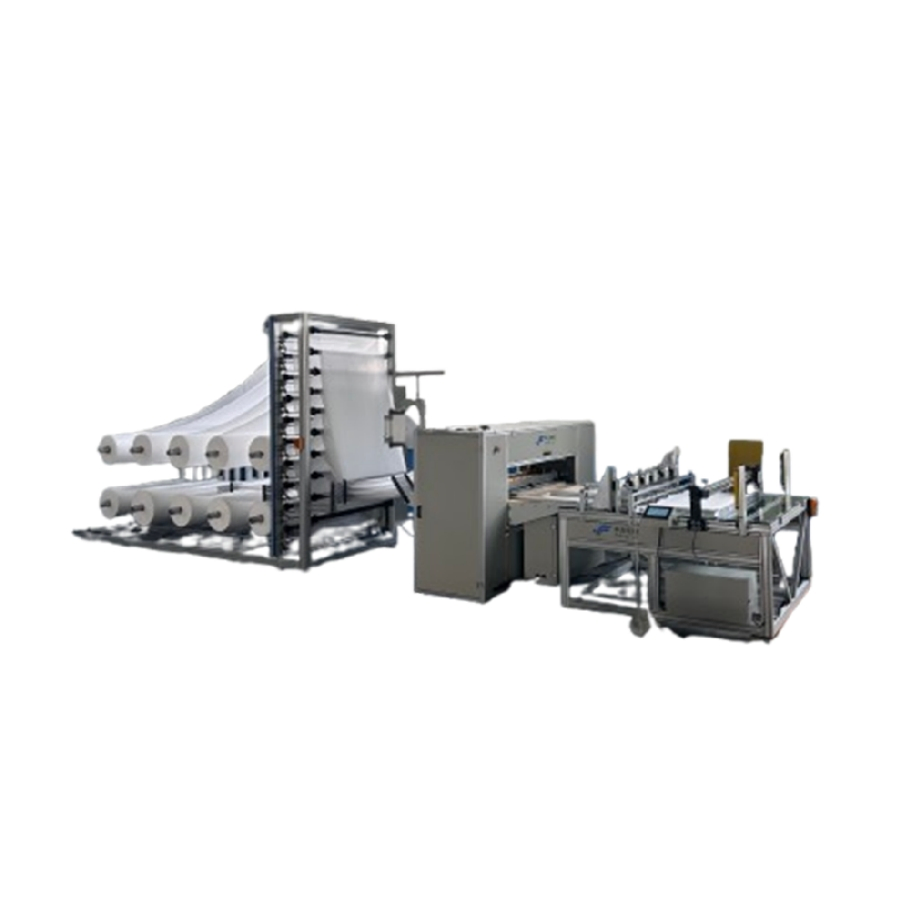

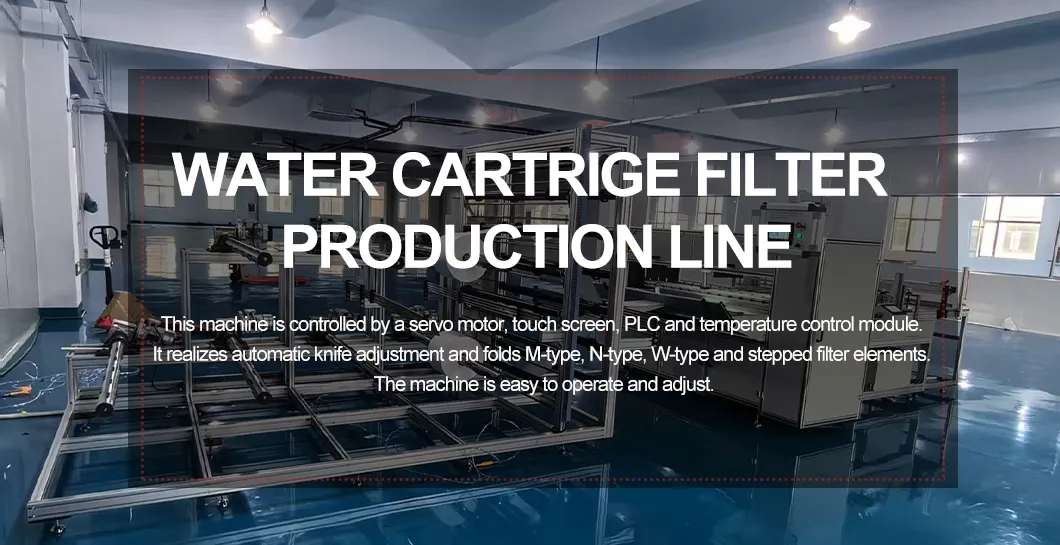

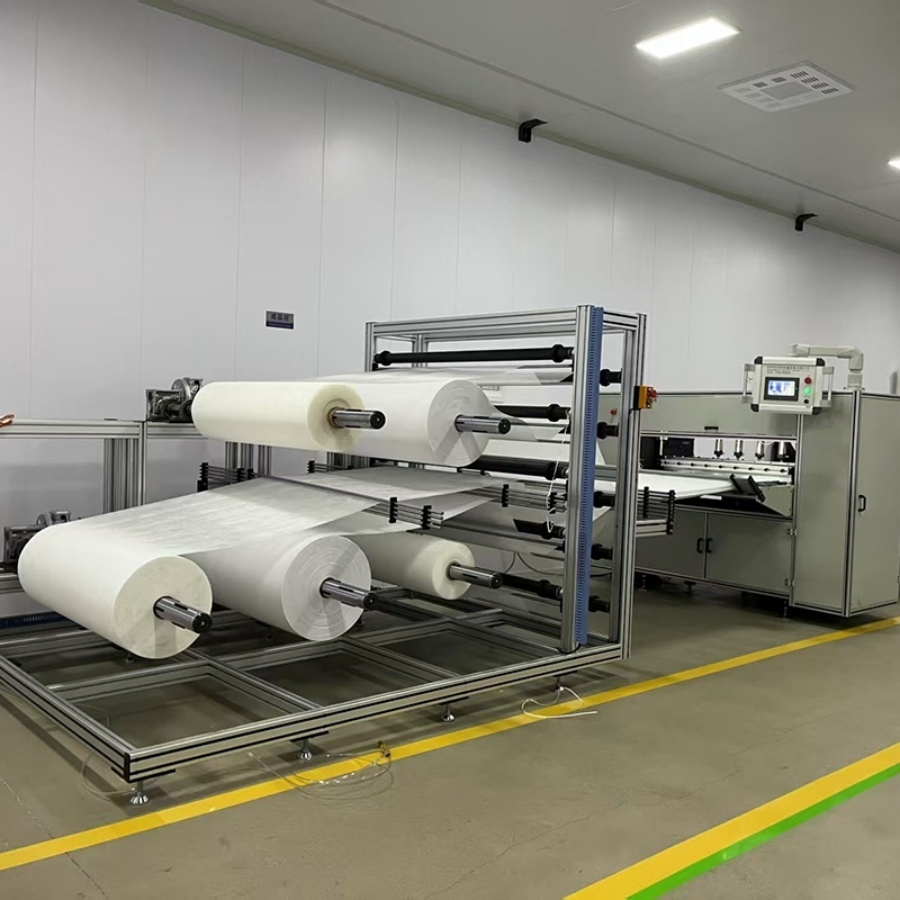

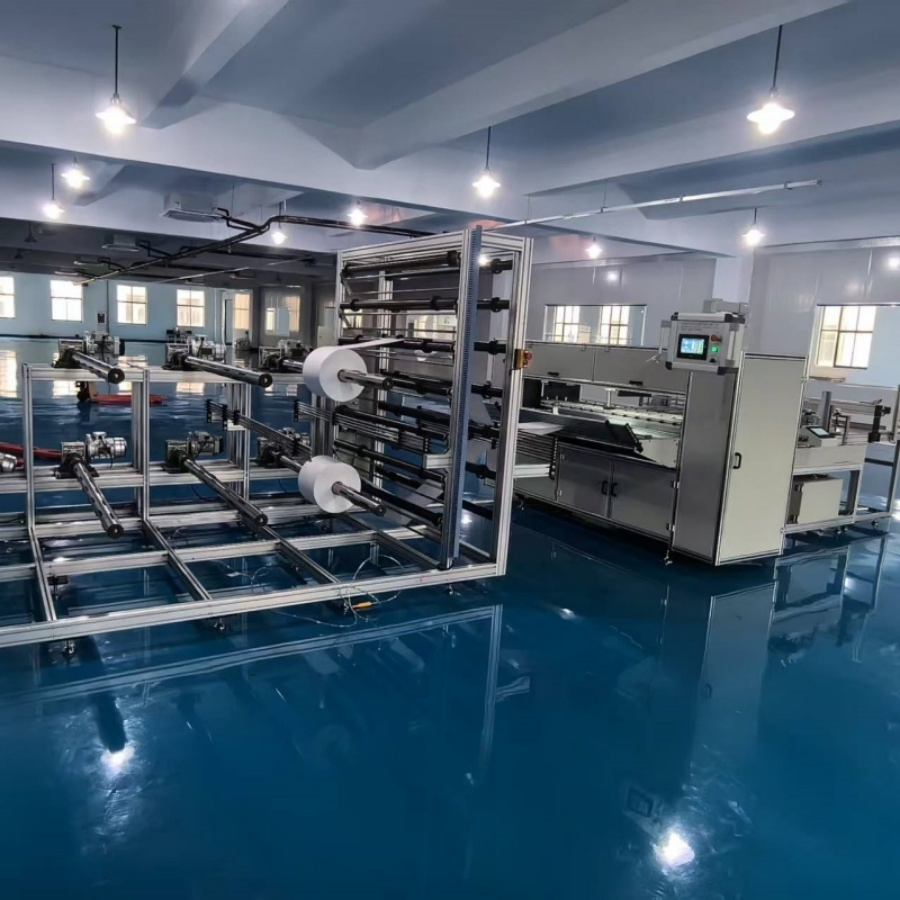

| Model | Water cartridge filter production line | Style | Tube |
|---|---|---|---|
| Performance | Efficient Filtration | Certification | CE |
| Weight | 950 Kg | Total Power | 14.5kw |
| Max Width | 1250mm | Folding Speed | 150 Folds/Min |
| Dimensions | 2600 X 1910 X 2020 mm | Voltage | AC 380V (Three-Phase) |
| Technical Parameters | |
|---|---|
| Maximum product width | 1250mm |
| Fold height range | 4-50mm |
| Folding speed | 150 folds/min |
| Temperature control | Room temperature - 180°C (Separate upper/lower heating) |
| System Components | Xinjie Servo, Touch Screen, and Motion Controller |
| Adjustment Method | Automatic adjustment by servo system |

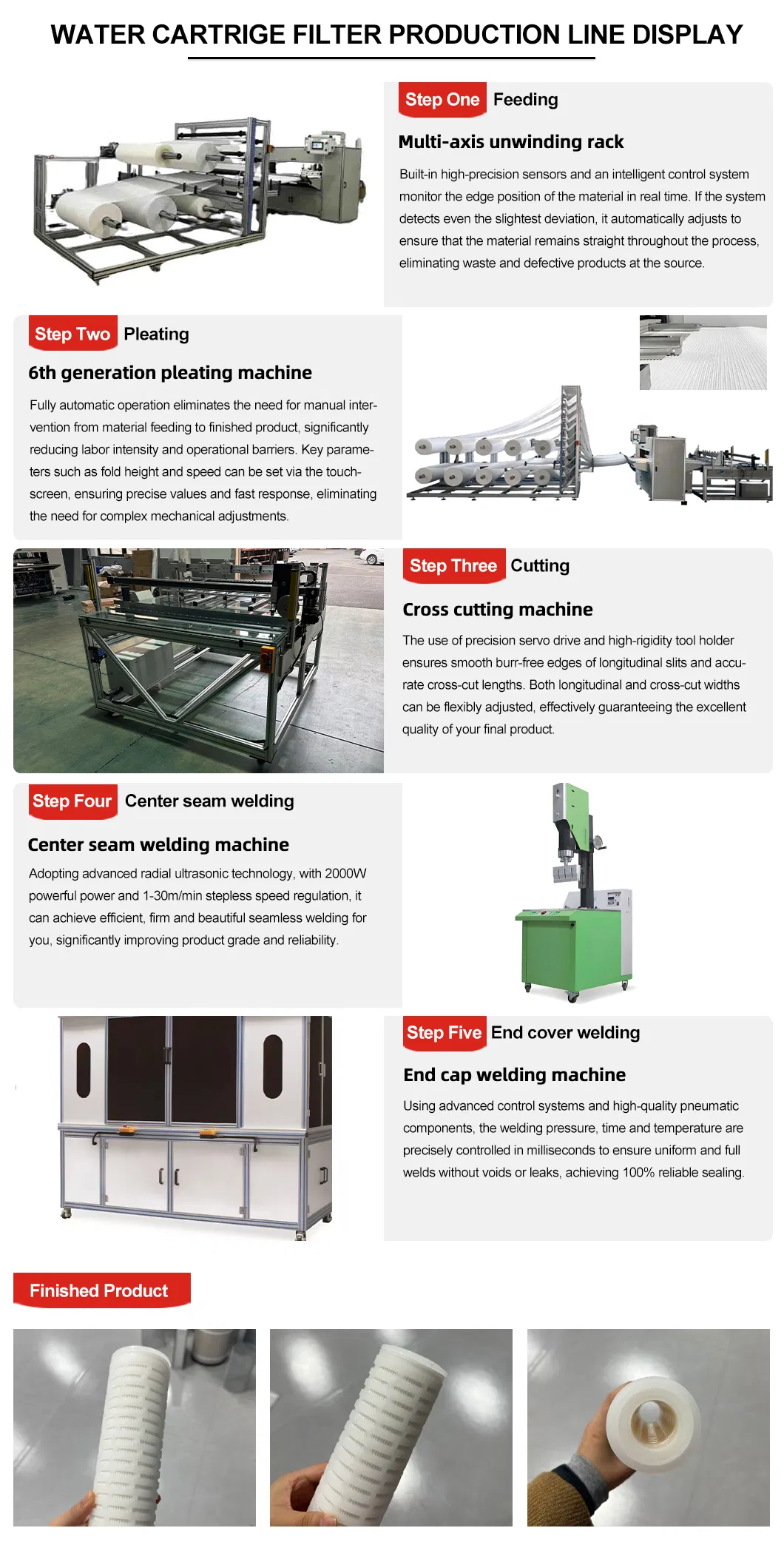

| 7-axis Automatic Unwinder | |
|---|---|
| Effective unwinding width | 1050mm |
| Unwinding coil diameter | 600mm |
| Capacity | 7 coils with independent control |
| Slitting and Cross-cutting Unit | |
|---|---|
| Operating voltage | AC220V/50Hz |
| Number of slitting blades | 5 (Adjustable for hydraulic filters) |
| Safety Features | Light barrier protection |

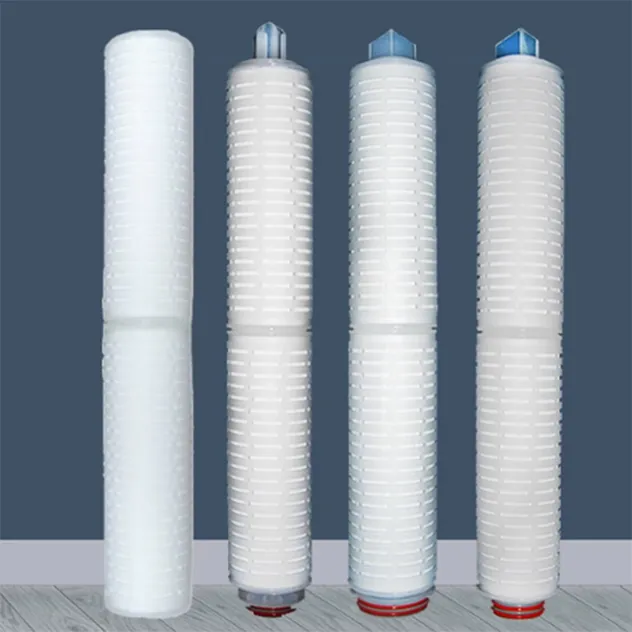

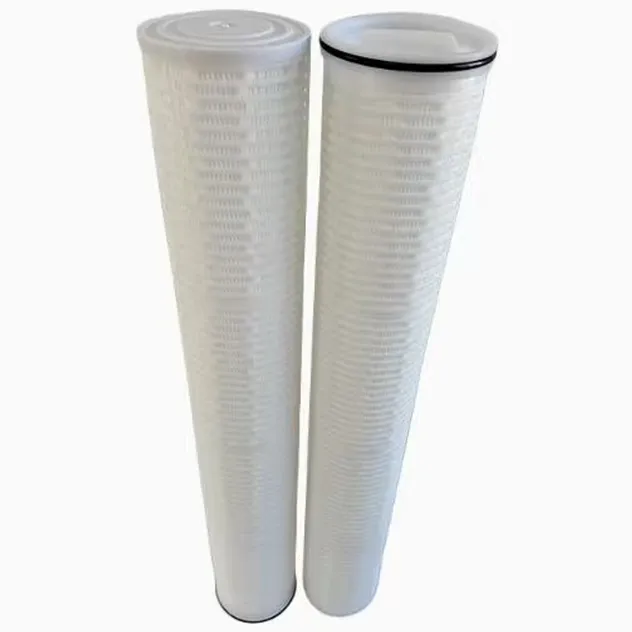

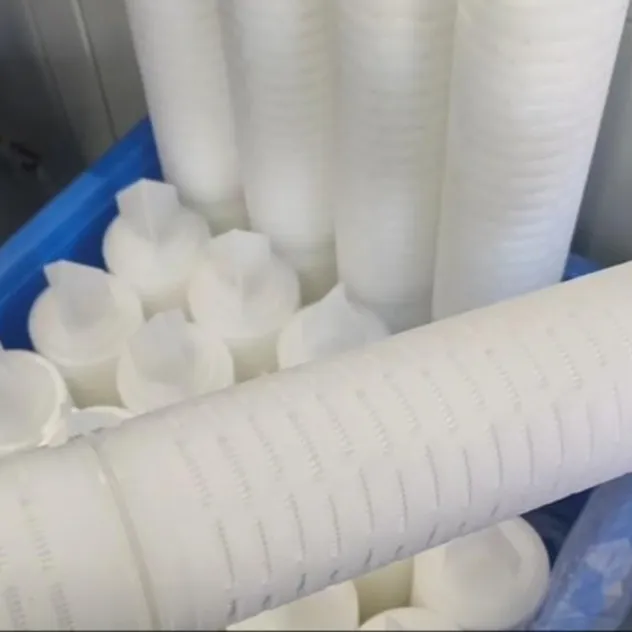

Large flow rate per element reduces the number of filter housings and connectors required, saving installation space and equipment investment.
Features a large filtration area for smoother water flow, resulting in lower pressure drop and reduced system energy consumption.
Superior dirt-holding capacity extends replacement cycles, significantly lowering maintenance and labor costs.
Reinforced center tubes and end caps allow components to withstand high differential pressures without collapsing.
With over 20 years of industry experience in the filter field, our focus is on research, development, and production of equipment that meets precise user requirements. We specialize in producing 6th generation knife folding machines, filter paper folding machines for pleated filters (with or without separators), aluminum foil corrugation machines, and spiral winding machines.
