Product:

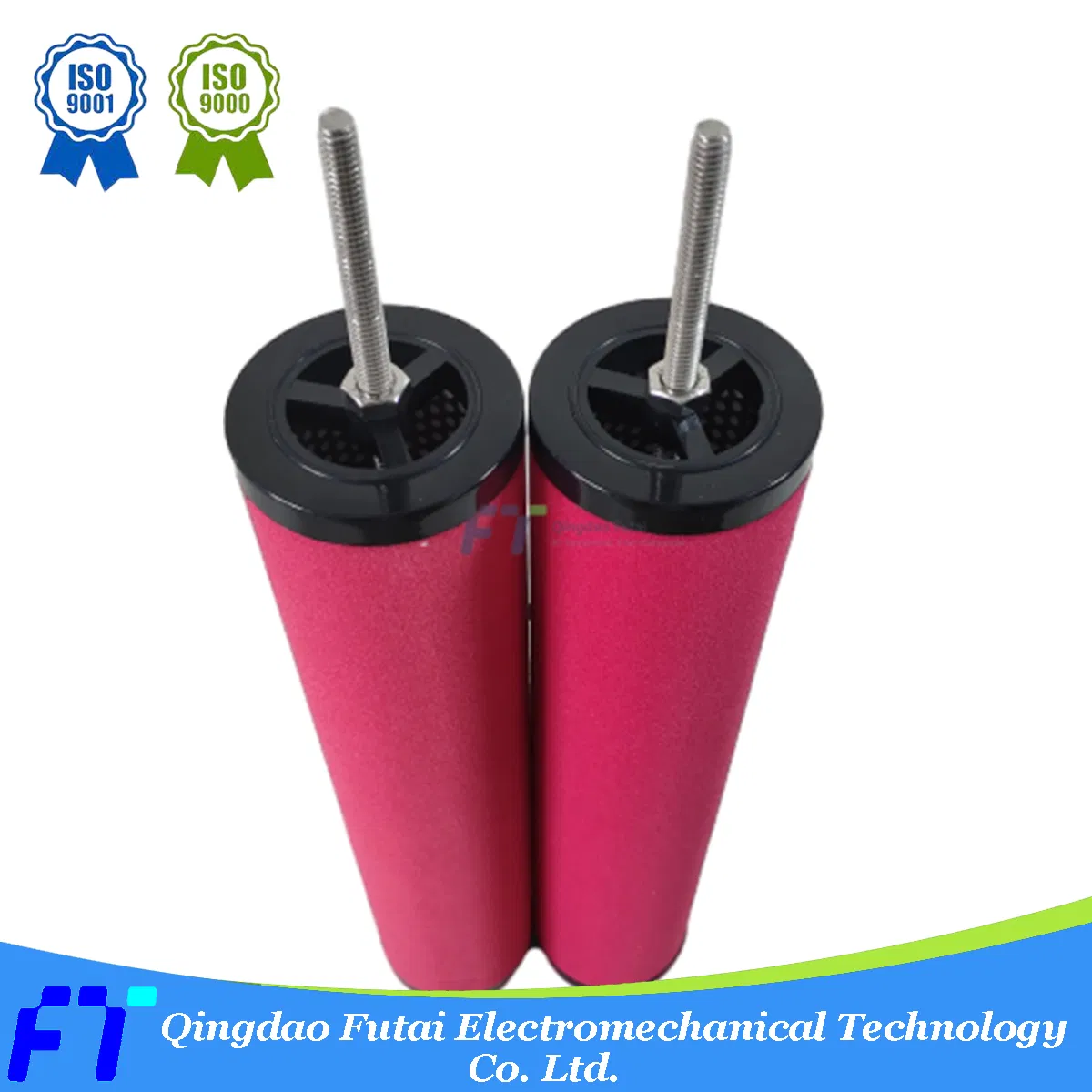

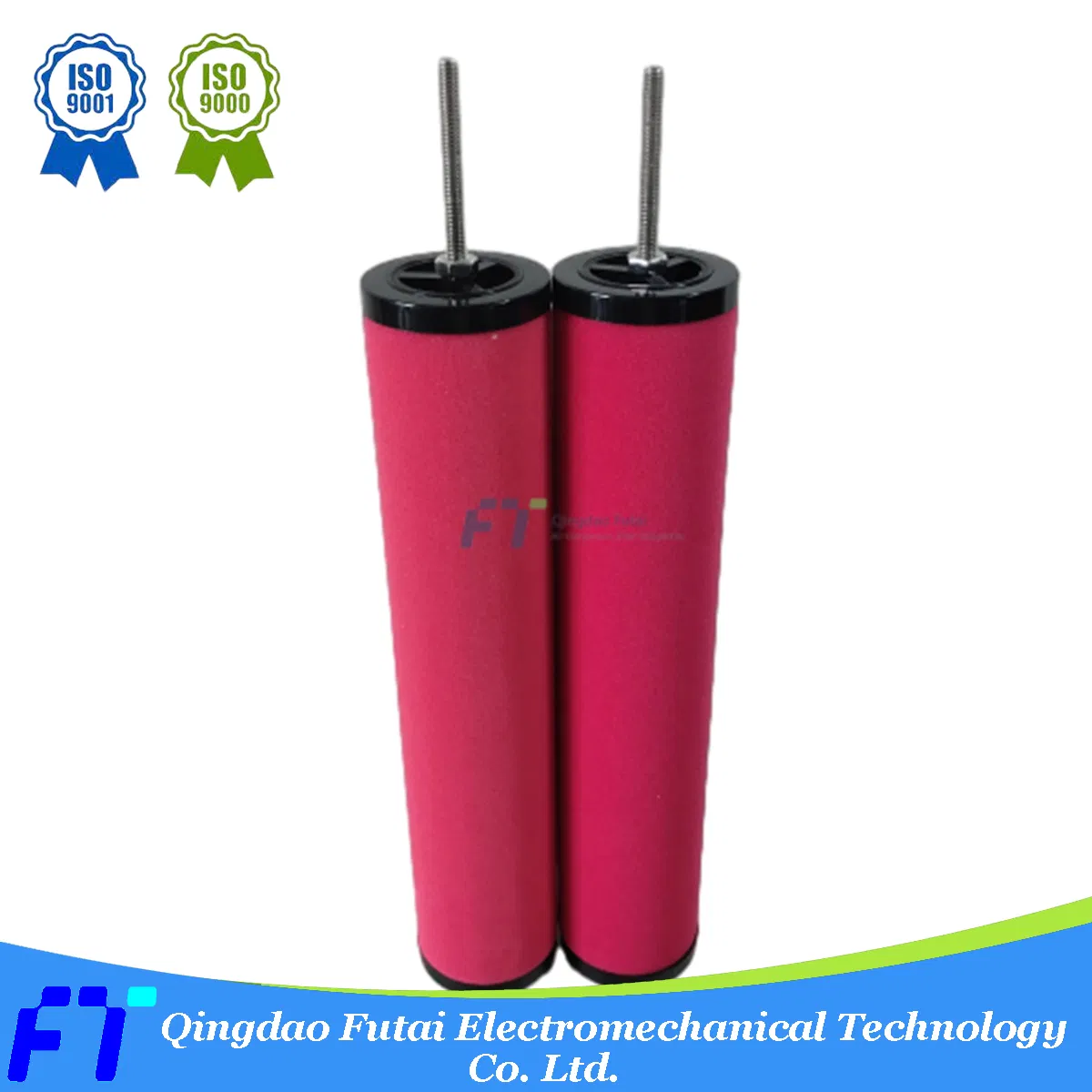

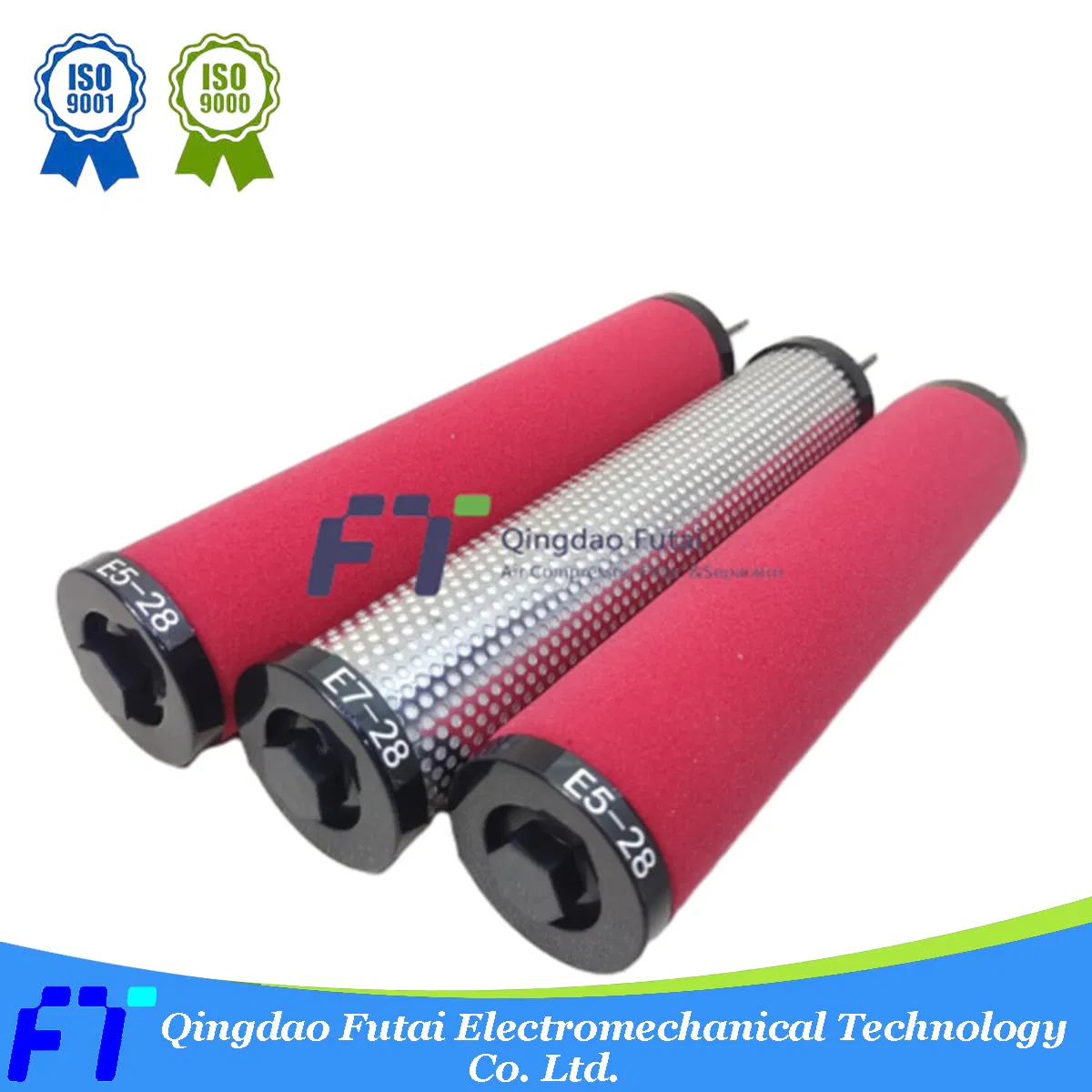

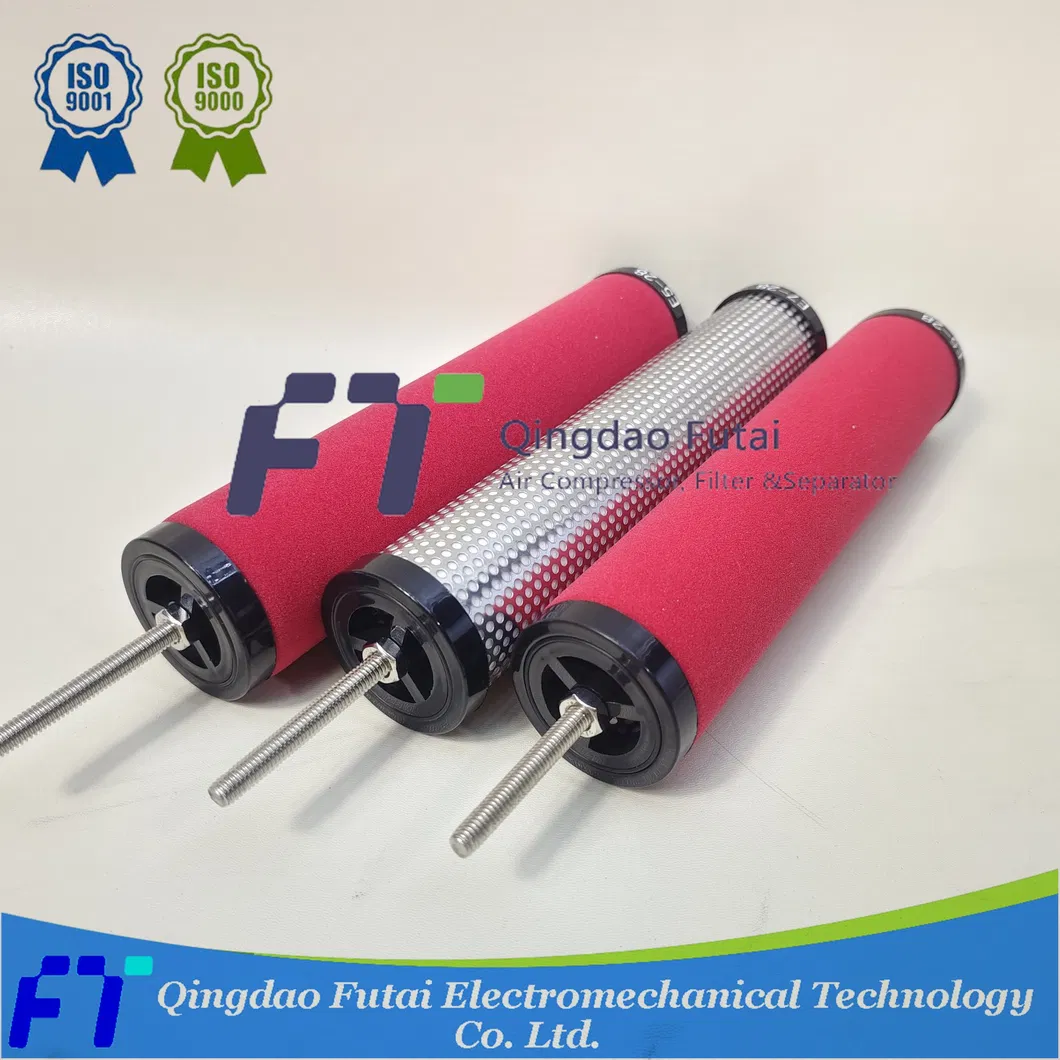

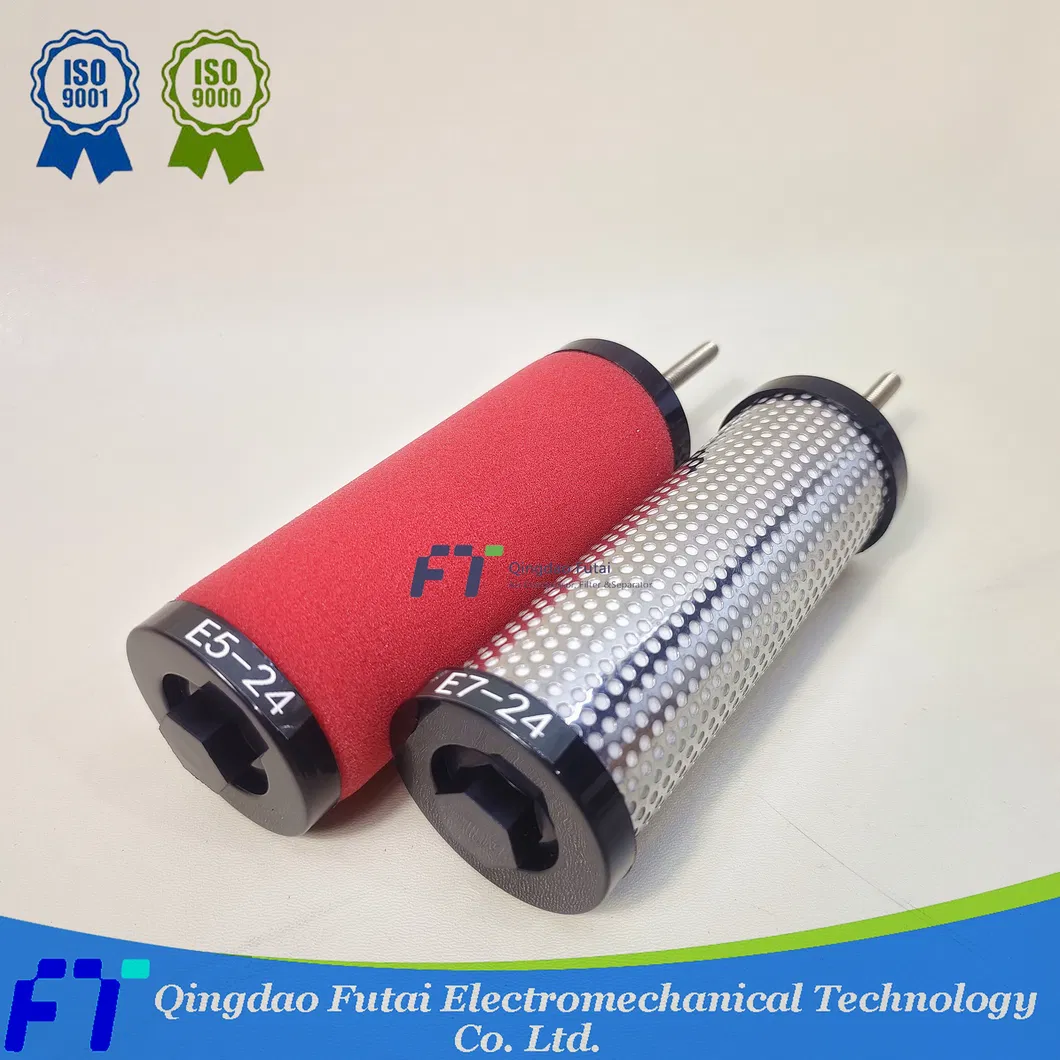

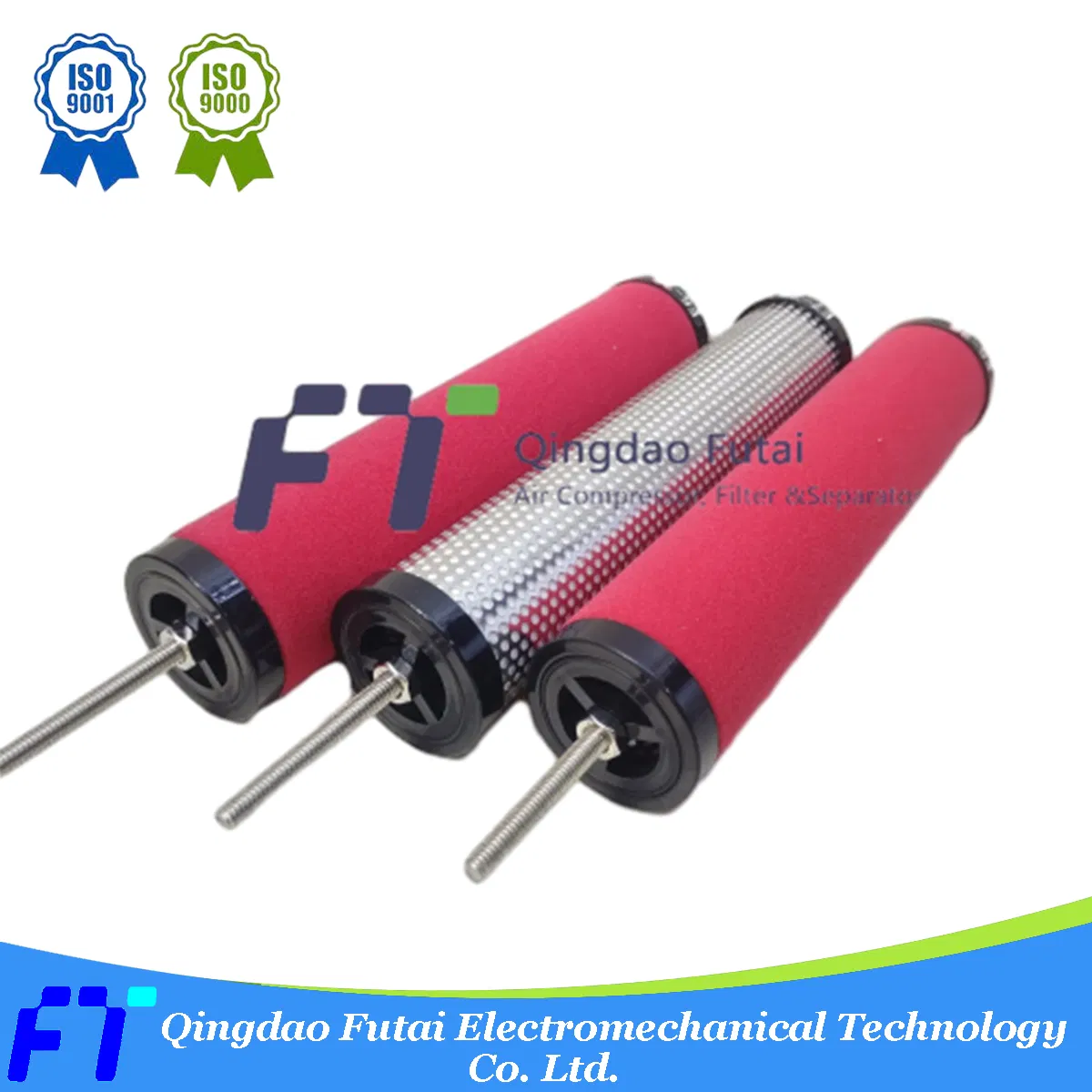

Replacement Hankison Filter Element E5-24 E7-24 E5-28 E7-28 Precision Filter Element Ha-1200f Ho-1200f Ht-1200f
Precision filter element is the heart of the filter. It is the main principle of the filter, designed to purify resources and enable reuse. Generally used in oil, water, and air filtration industries, it removes impurities to protect equipment and ensure clean air flow. Untreated air contains oil, water, and solid particles that can threaten system operations; therefore, precision filtering is vital for industrial production.
| Model Class FLOW Rate | E1 | E3 | E5 | E7 | E9 | Filter Precision (μm) | Residual Oil (ppm) |
|---|---|---|---|---|---|---|---|
| 0.57 NM3/min | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 | E1:0.01 | 0.001 |
| 1 NM3/min | E1-16 | E3-16 | E5-16 | E7-16 | E9-16 | E3:0.01 | 0.001 |
| 1.72 NM3/min | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 | E5:0.01 | 0.01 |
| 2.9 NM3/min | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 | E7:1 | 1 |
| 4.9 NM3/min | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 | E9:3 | 5 |
Grade P - General Purpose Protection
Particle removal down to 1 micron including coalesced liquid water and oil (0.6 mg/m3 remaining).
Grade G/S - High Efficiency Oil Removal
Particle removal down to 0.01 micron including water and oil aerosols (0.01 mg/m3 remaining).

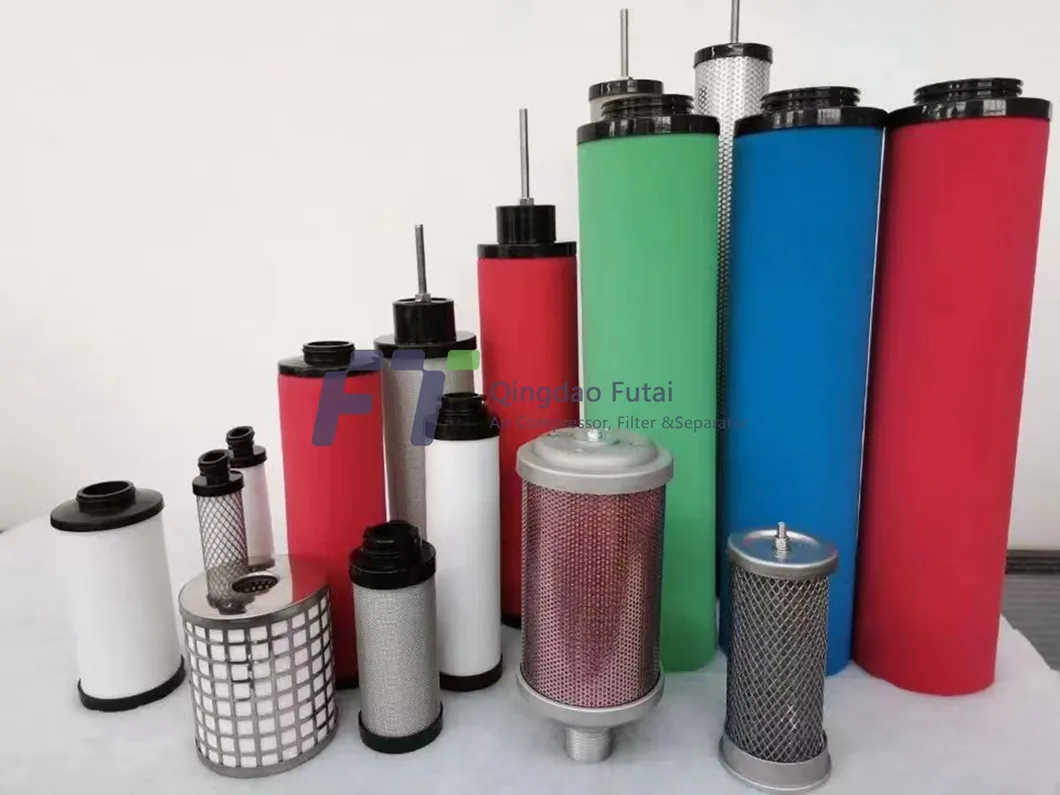

Grade V - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal (<0.003 mg/m3 remaining).
Grade C/D - General Purpose Dust Filtration
Dust particle removal down to 1 micron.
Filters are essential components of air handling systems, providing clean compressed air for pneumatic tools, food processing, and pharmaceutical industries. We offer high-quality replacements engineered to match exact OEM specifications for form, fit, and function.
