500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
1 / 5
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant
500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant

500kw 1000kw 2000kw solid Waste Animal Manure Gasification Power Generation Plant

Customization: Available
After-sales Service: 24/7 Online Service
Warranty: One Year or 1500 Hours
Send Inquiry

Product Description

Basic Specifications

Model NO.
150kw-2500kw
Output Type
AC Three Phase
Gas Source
Biomass / Syngas
Certification
CE, ISO
Rated Power
150-2500kw
Fuel Type
Biomass, MSW, Wood Chip
Speed
500rpm/600rpm/1500rpm
Structure
Inline 4 Stroke
Cooling Type
Water / Air Cooling
Application
Power Plant/Station
HS Code
850220
Production Capacity
500 Units/Year

Product Description

500kw 1000kw 2000kw Solid Waste Animal Manure Gasification Power Generation Plant

Syngas-biomass generations are driven by low speed 300 series engines. The gas fuel can be generated from gasification of MSW, woodchips, sawdusts, rice husks, straws, coconut shells, coal gas, coking gas, coke oven gas and pyrolysis gas etc.

Low Speed 300 engines are specially designed for syngas as fuel, with remarkable features of low speed, big cylinder, big displacement, naturally aspirated and strong resistance ability against the TAR. Highly reliable and durable, the overhaul can reach over 60,000 hours.

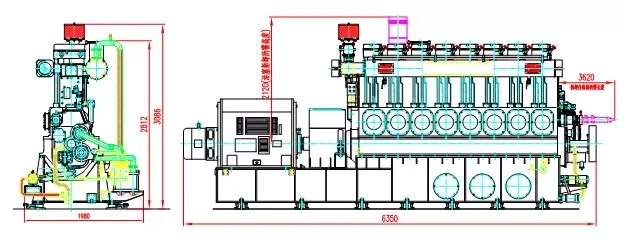

Power Generation Plant

Gas Quality Suggested

✔Gas temperature ≤ 40ºC
✔Gas pressure 2.5~10kPa
✔Gas calorific value ≥ 4.0MJ/Nm³
✔Tar content ≤ 50mg/Nm³
✔Moisture content ≤ 40g/Nm³, no free water
✔H2S ≤ 50mg/Nm³
Gas Quality Chart

Gas Generator Specification

Part Item 6300D/M 6300D/M-1 8300D/M-2 8300D/M-3 9300D/M-1 9300ZLD/M
Engine Rated speed(r/min) 500 600 600 600 750 600
Rated power (kW) 330 440 550 660 880 1320
Cylinder number 6 6 8 8 9 9
Start mode Compressed air /motor start Compressed air start
Generator set Model 300GFM 400GFM 500GFM 600GFM 800GFM 1200GFM
Rated power(kW) 300 400 500 600 800 1200
Weight(kg) 18000 22000 41000 42000

Customer Benefits

◈
Simple Maintenance: Inline & Upright layout allows for easy, low-cost operation. Overhauls can be handled on-site.
◈
High Reliability: Low engine speed (500/600rpm) ensures sufficient combustion and long life for continuous operation.
◈
TAR Resistance: Naturally aspirated design and dismountable intake-valve-box allow easy cleaning and avoid turbocharger blockages.
◈
Safety: Internal mixing system for high hydrogen gas prevents risks of backfire and cylinder knocking.
◈
Long Lifecycle: 60,000 hours overhaul time and 20-25 years lifecycle ensure sustainable financial rewards.
◈
Low Noise: Maximum noise ≤100dB, reducible to ≤70dB with silencers.

Applications & Projects

Applicable Gas Fuels:
  • Biomass from MSW, Woodchips, Sawdust, Straw, Rice husks, Nut-shells, etc.
  • Industrial tail gas: Coal gas, coking gas, semi-coke gas, carbide tail gas, yellow phosphorus tail gas.
Fuel Types

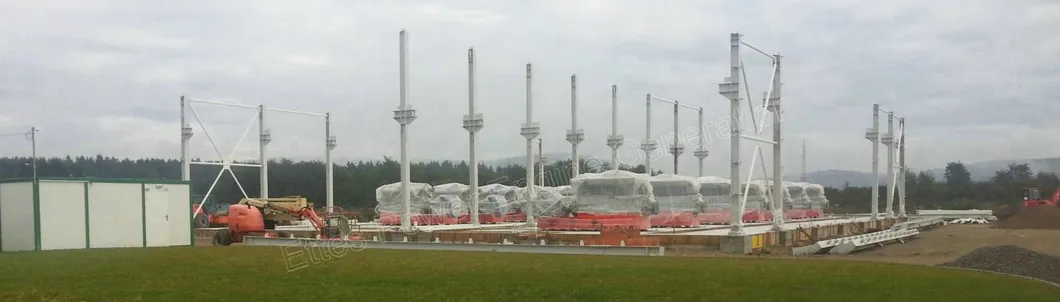

Project Croatia

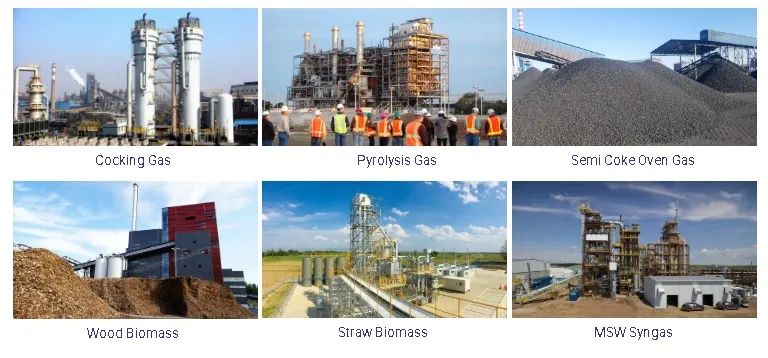

Applications Diagram

Why Choose Our Generator Sets?

  • Over 50 years of experience in internal combustion engine manufacturing.
  • Highly versatile power generators handling more than 20 different types of gases.
  • More than 1,000 systems installed across 20+ countries.
  • Dedicated R&D team and responsive customer service department.

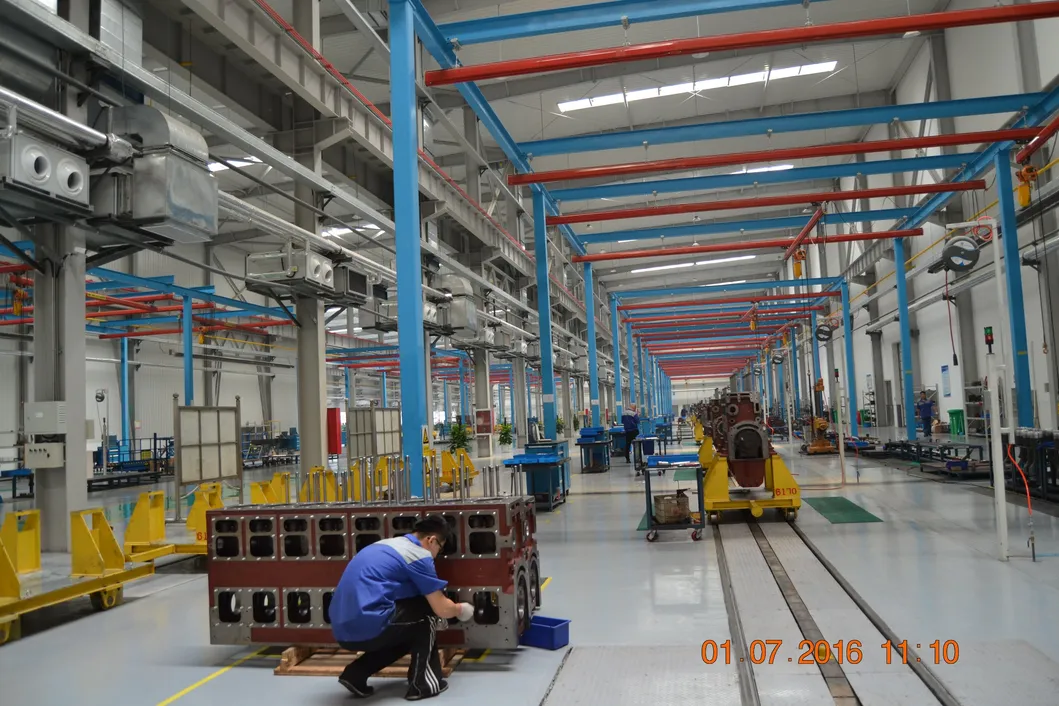

Production Facility
Engine Detail

Project References

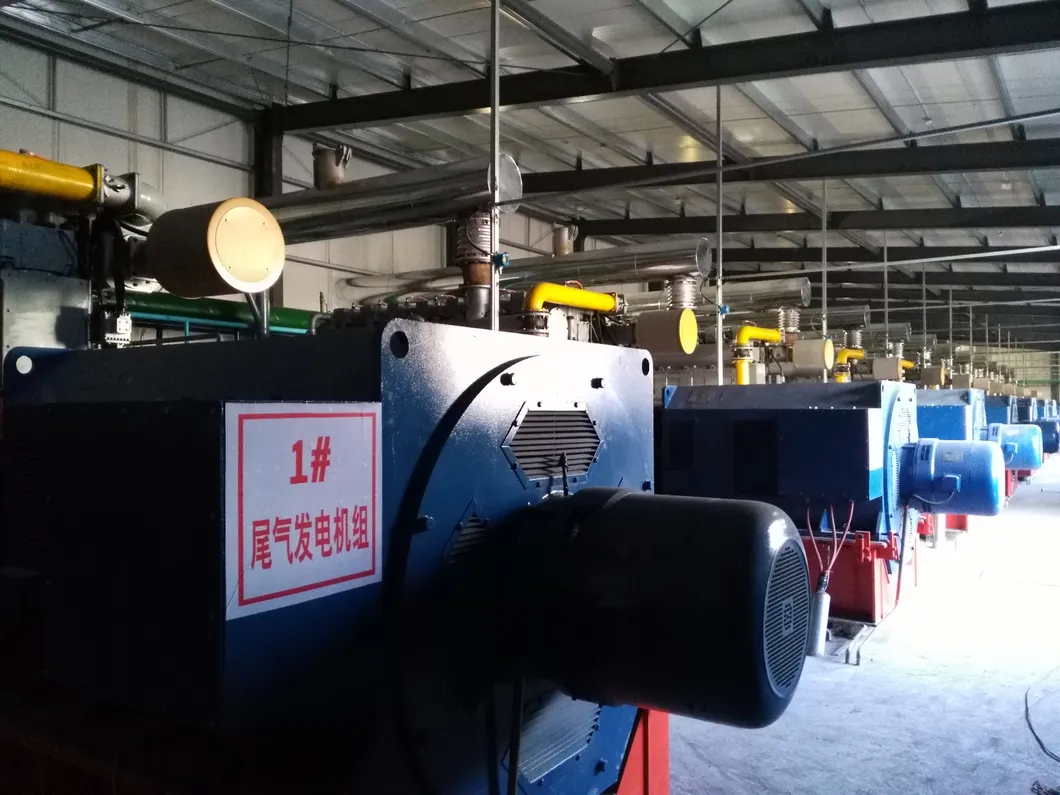

Project Reference 1

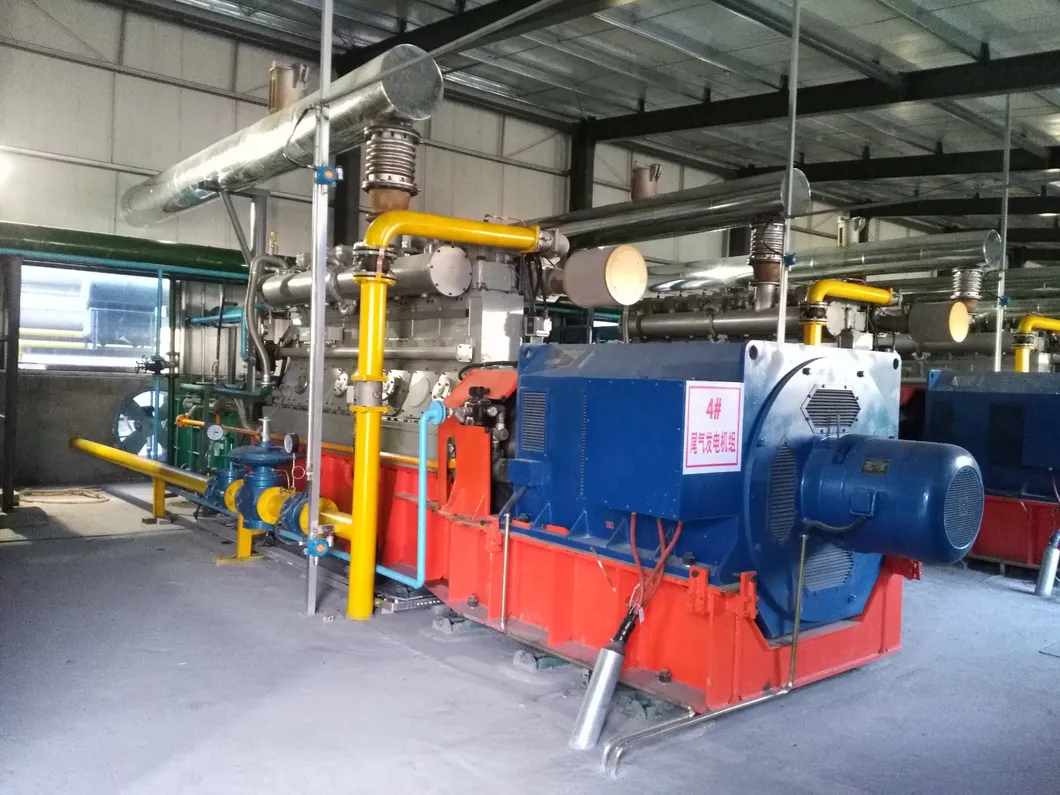

Project Reference 2
Project Reference 3

Packing & Shipping

Packing and Shipping

Frequently Asked Questions

1. What types of gas generator sets are available? We produce sets for all types of gas from agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, syngas, and coke oven gas.
2. What is the typical delivery time? Normally within 60 days, depending on the specific configuration and quantity required for your project.
3. What are the suggested gas quality requirements? Ideally, gas temperature should be ≤40ºC, pressure between 2.5~10kPa, and tar content ≤50mg/Nm³ to ensure optimal engine performance.
4. How are the products packaged for international shipping? We use standard export packaging, including plastic wrapping and solid wooden boxes suitable for long-distance sea transportation (moisture-proof and anti-rust).
5. What is the expected overhaul time and lifecycle? Our low-speed engines are designed for a long lifecycle of 20-25 years, with a major overhaul interval of approximately 60,000 hours.
6. Which ports are used for shipment? We typically ship through local international ports, but other ports can be arranged based on customer requirements.
